Home
>>
Oldsmobile
>>
1992
>>
Cutlass Supreme FWD V6-189 3.1L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Panel, Gauges and Warning Indicators
>>
Driver/Vehicle Information Display
Driver/Vehicle Information Display

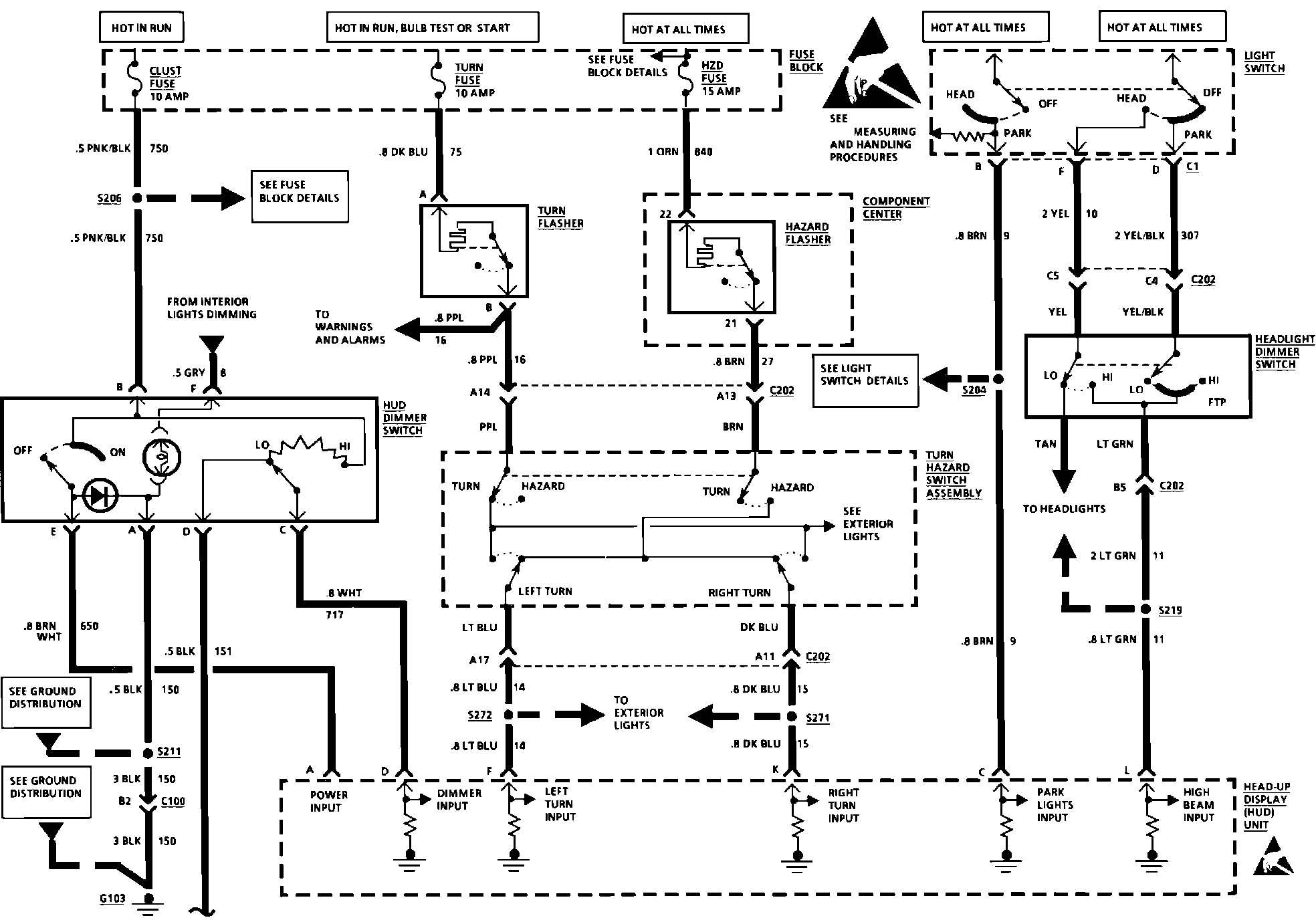

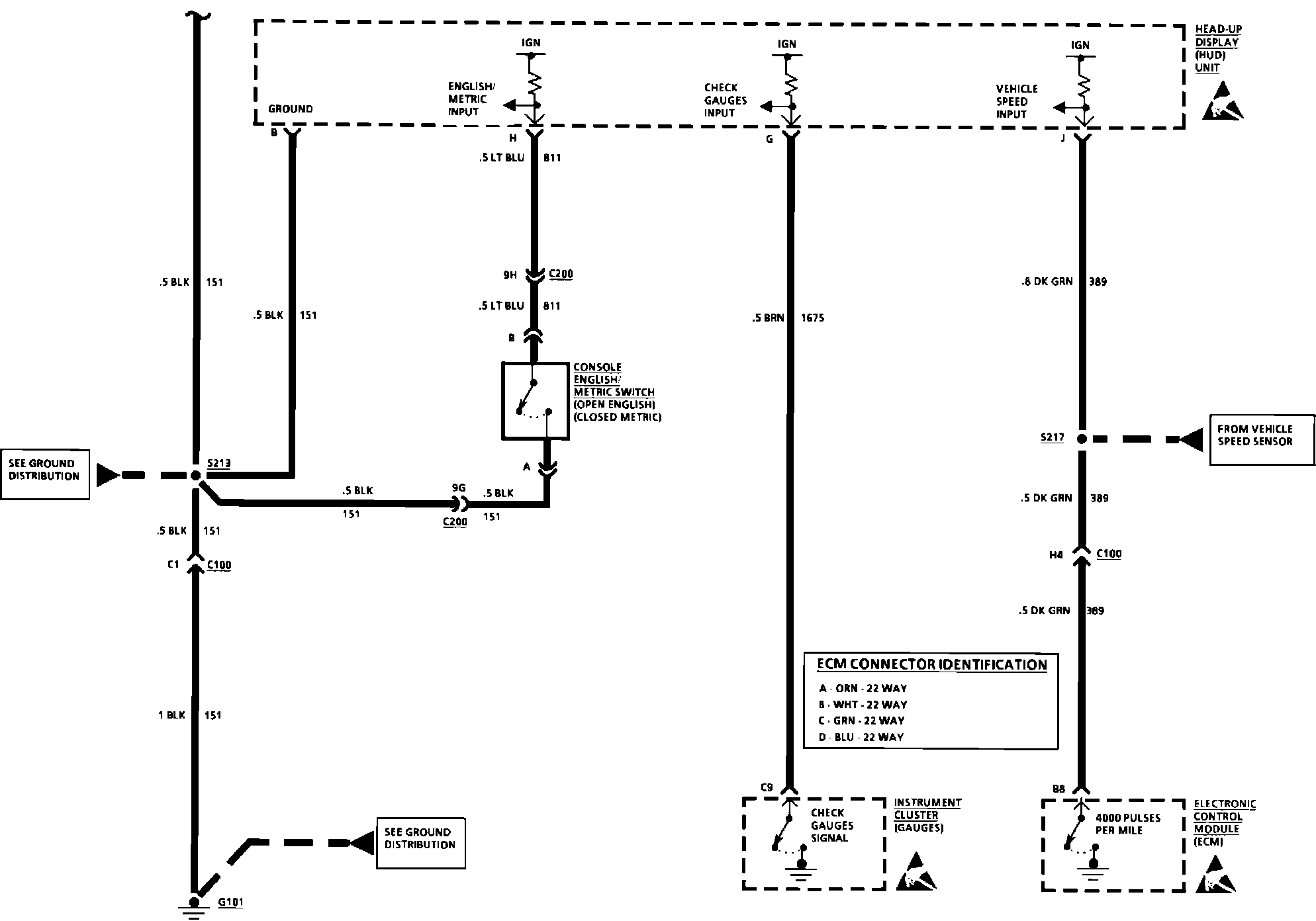

Head-Up Display:
Head-Up Display:
