Oldsmobile
>>
1992
>>
Cutlass Supreme FWD V6-189 3.1L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
Tail Lamp
Tail Lamp

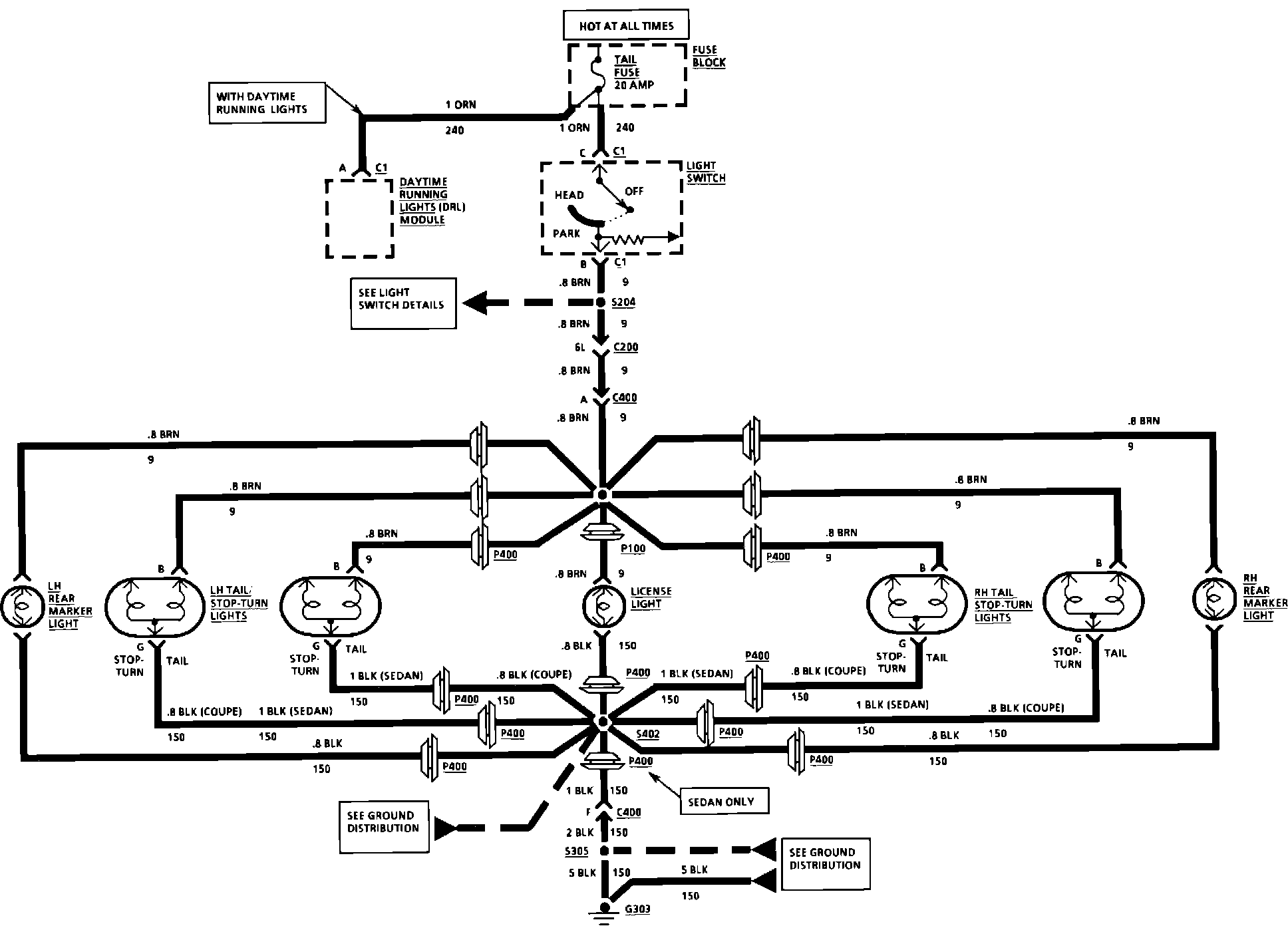

Exterior Lamps: Tail/Rear Marker/License:
