Oldsmobile
>>
1992
>>
Cutlass Supreme FWD V6-189 3.1L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Vacuum and Vapor Hose Diagrams
>>
Manual Air Conditioning
Manual Air Conditioning

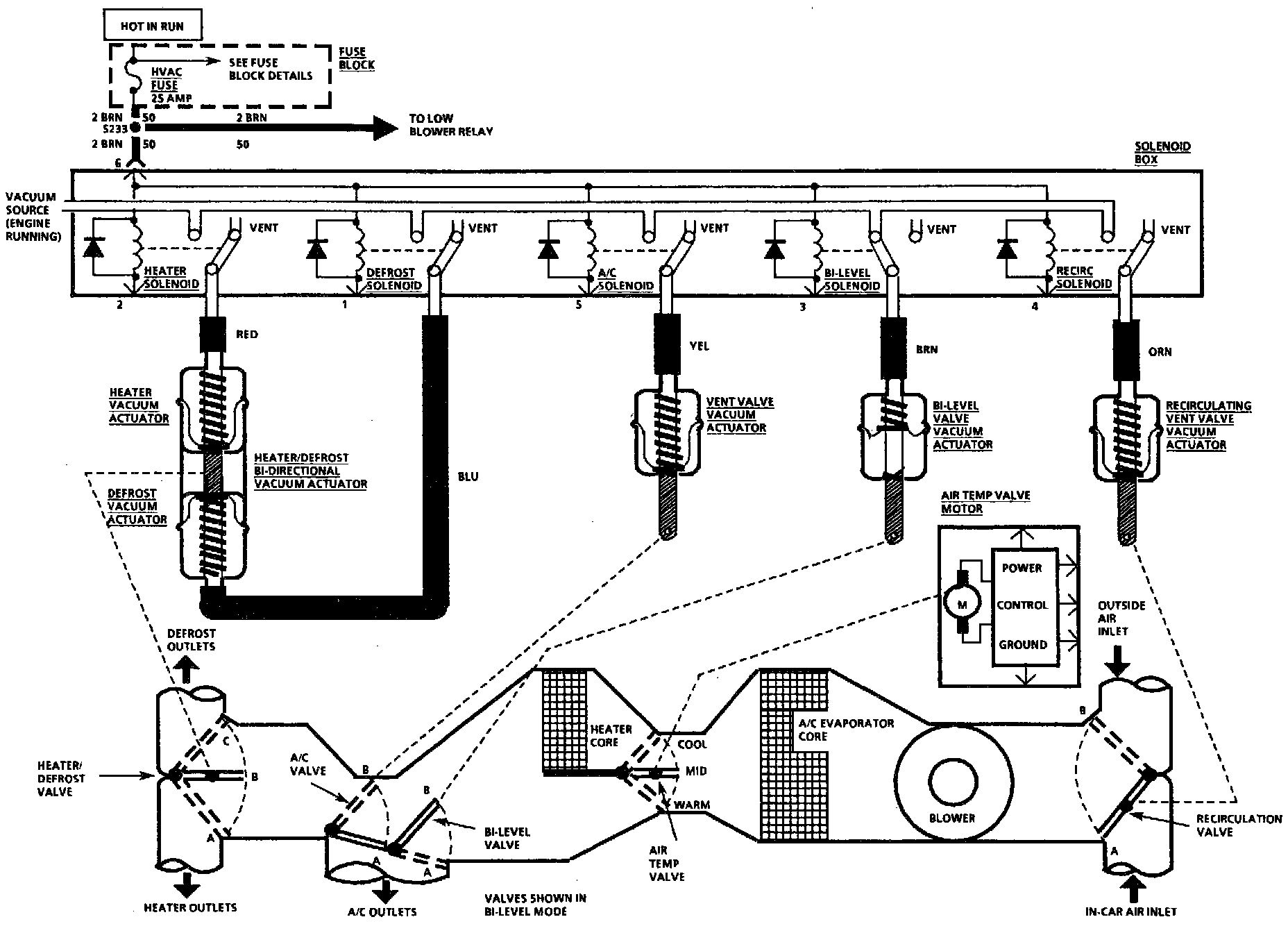

Air Delivery & Temperature Controls (C67):
