A Symptom Chart - Gauge Cluster
A Symptom Chart - Gauge Cluster

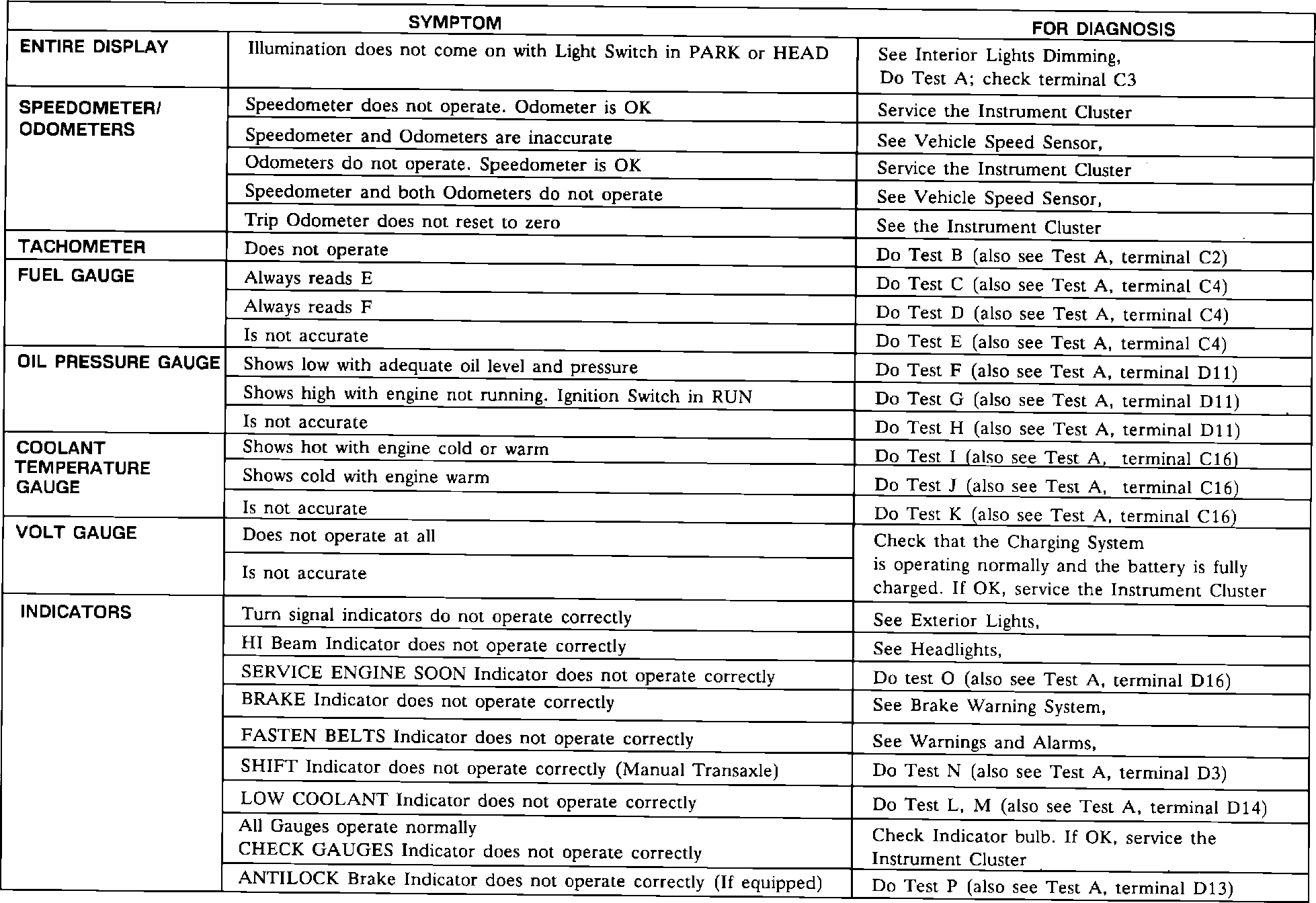

Gages Instrument Cluster Symptom Chart:
