Information Bus (Data Line)

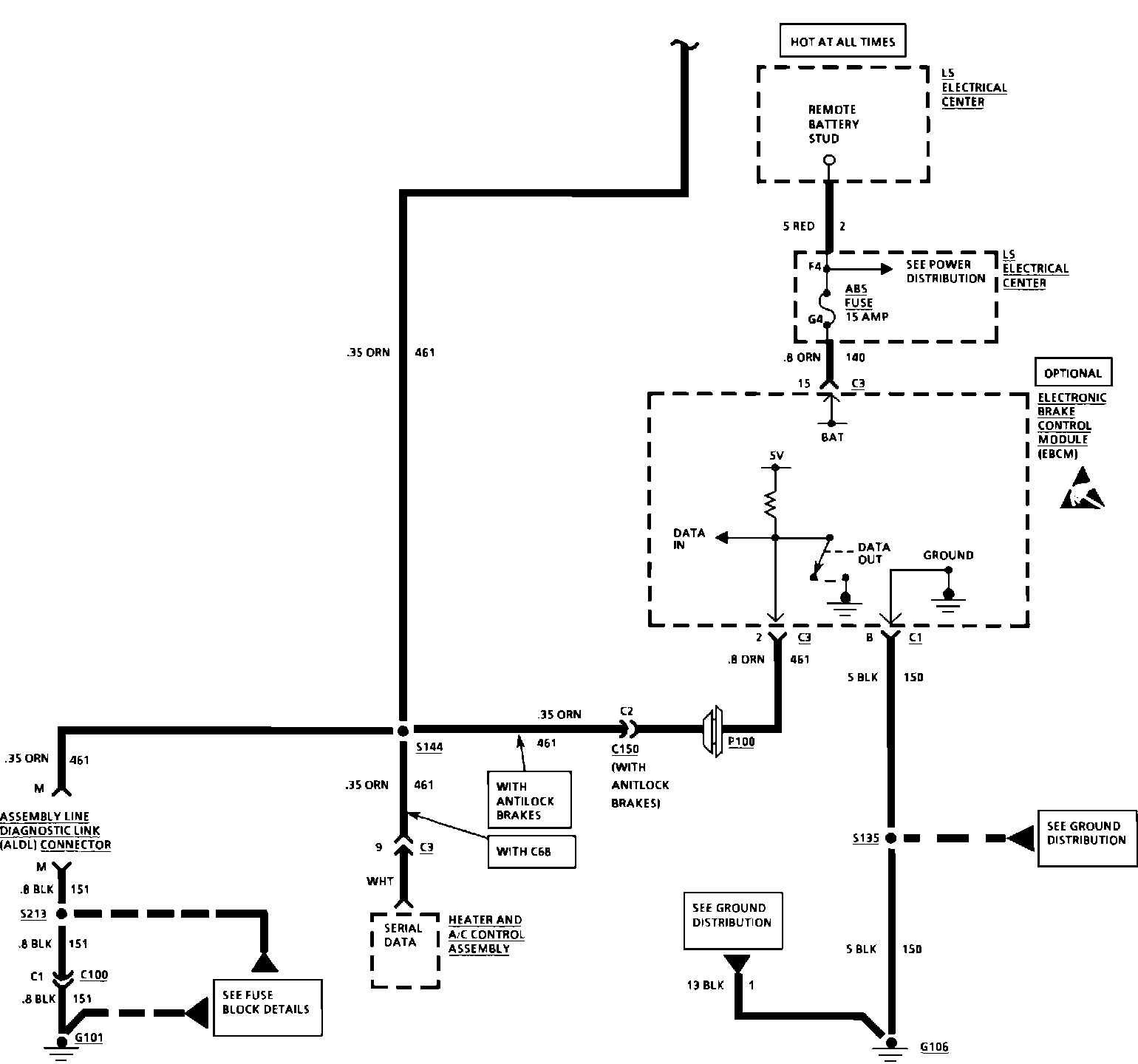

Information Bus (Data Line)
Data Line: ECM:
Data Line: ECM:
Data Line: HVAC, Radio, Redundant Steering Controls:
