Vehicle Ride (Trim) Height Specifications

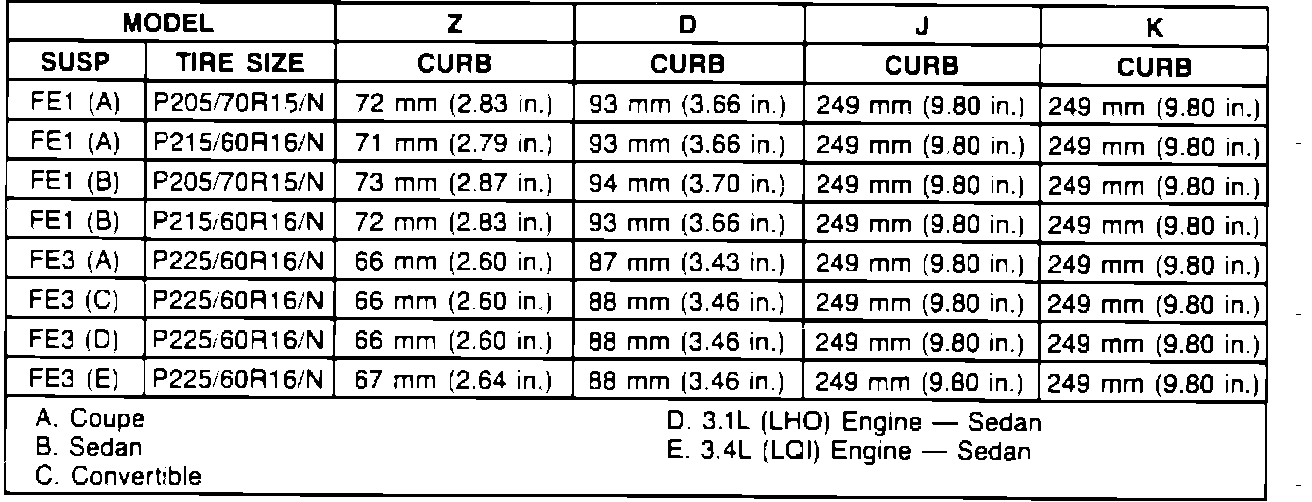

Fig. 14 Ride Height Specification Chart. 1992 Cutlass Supreme:
