Home >> Oldsmobile >> 1992 >> Cutlass Supreme FWD V6-204 3.4L DOHC >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Component Tests and General Diagnostics >> Component Diagnostic Tests - Base Cluster >> Test A: Instrument Cluster Connector Pin-Out Test >> Part 1 of 3

Part 1 of 3

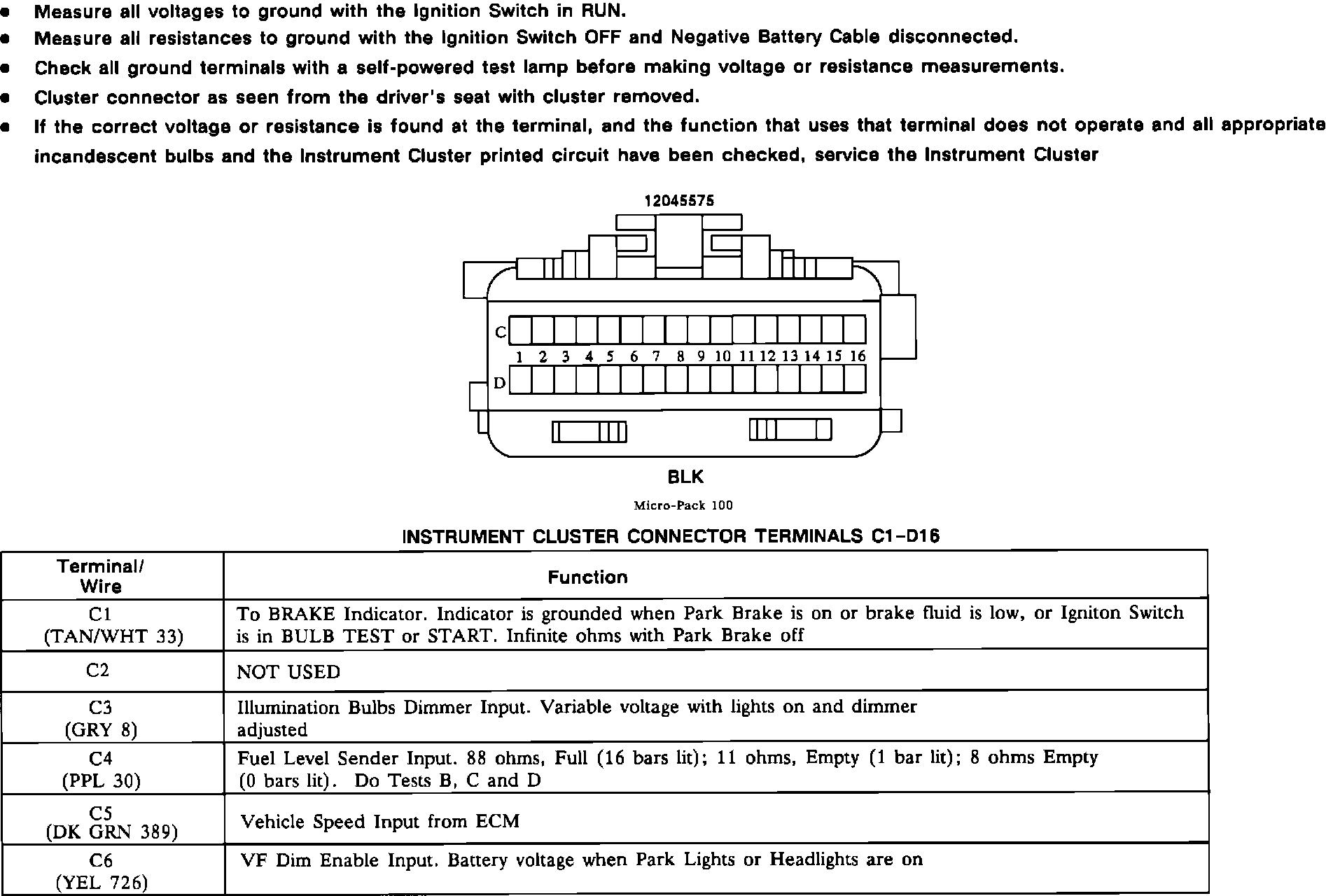

Test A: Instrument Cluster Connector Pin-out Test:
