Vacuum and Vapor Hose Diagrams

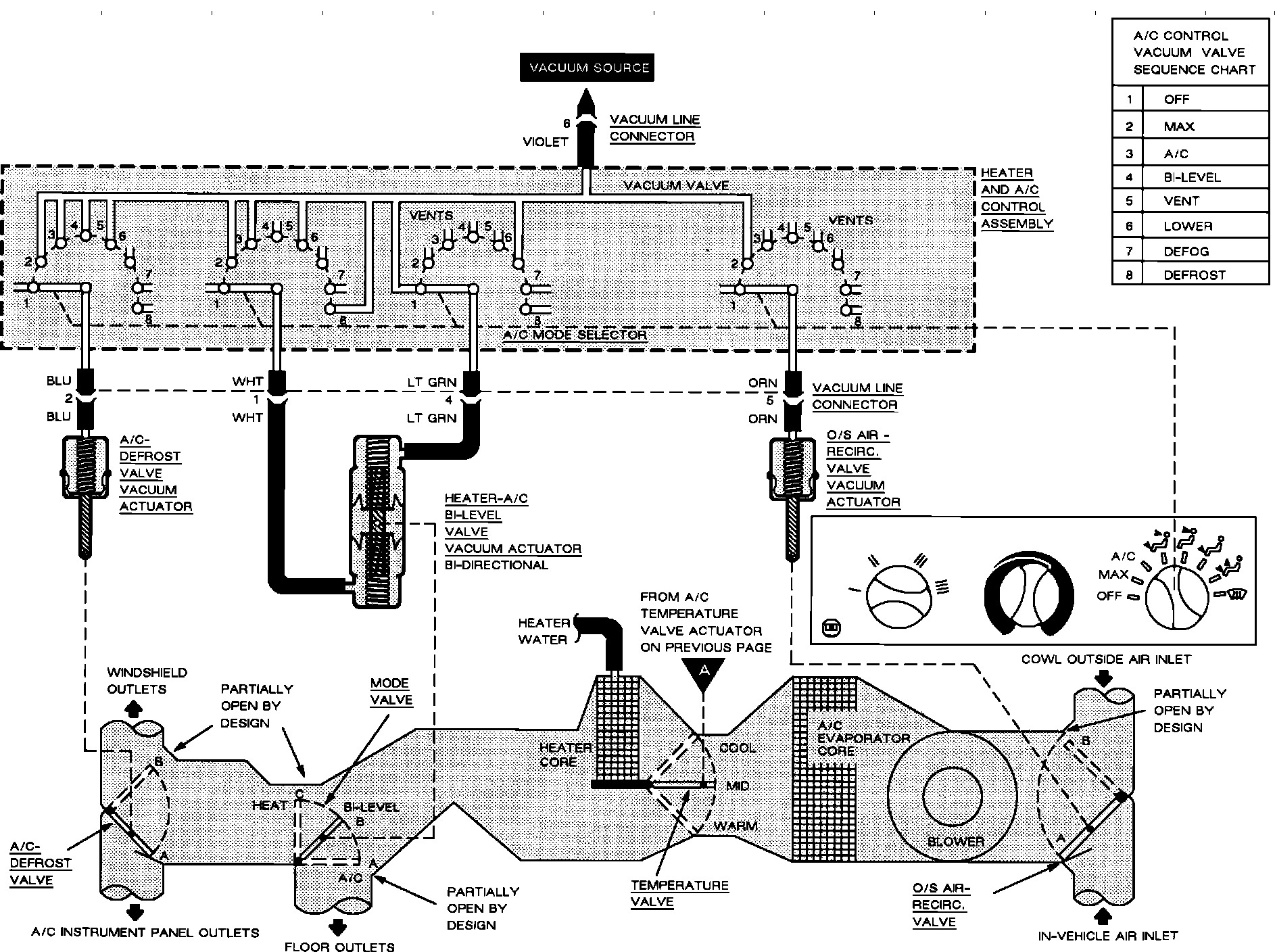

A/C Vacuum Circuit w/Manual A/C:
A/C Vacuum Circuit w/Electronic A/C:
