Home >> Oldsmobile >> 1992 >> Delta 88 V6-3800 3.8L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Windows and Glass >> Power Window Lockout Switch >> Locations

Power Window Lockout Switch: Locations

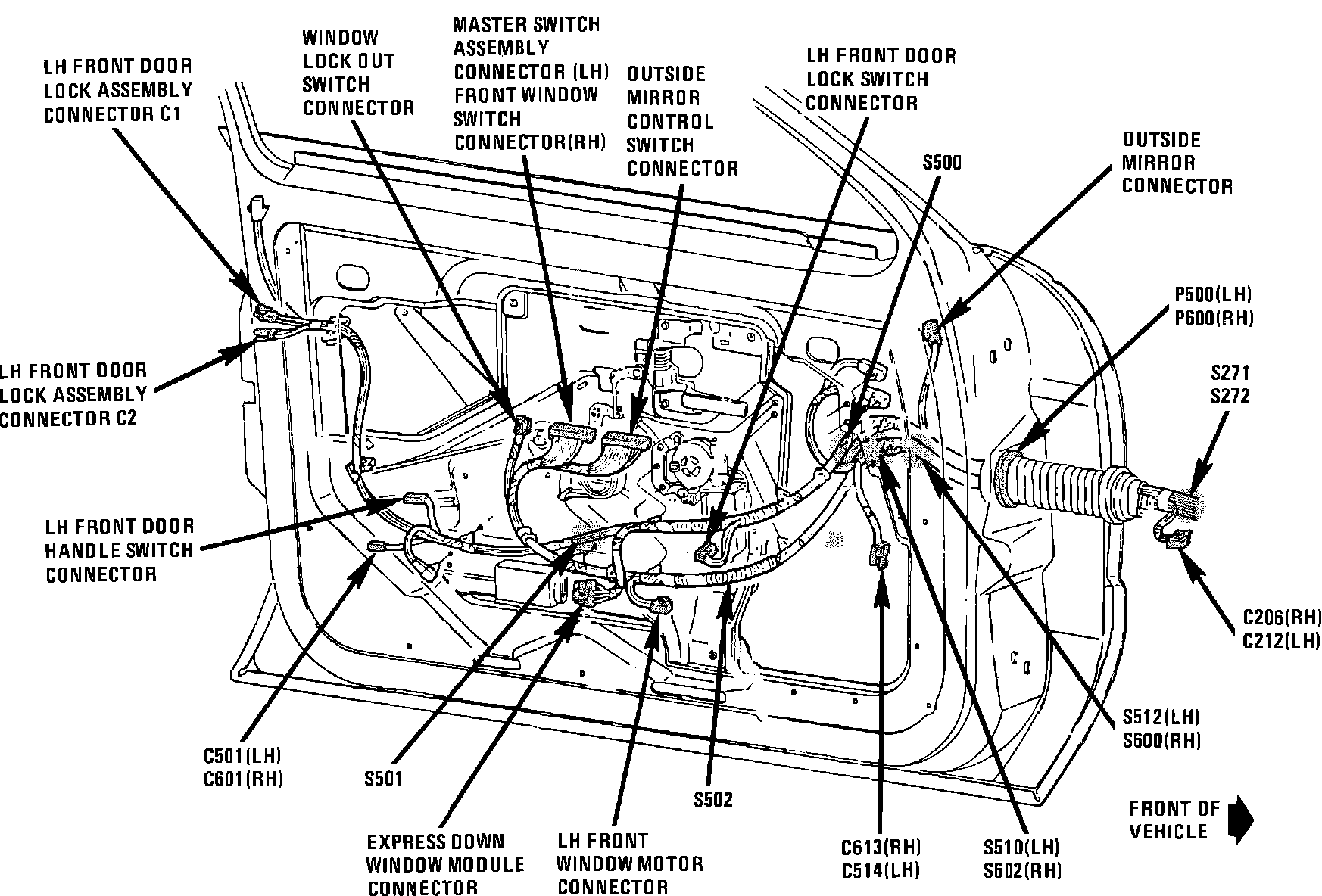

Component Location View. LH Front Door (RH Similar):





Lower rear of LH front door
