Home
>>
Oldsmobile
>>
1992
>>
Ninety-Eight V6-3800 3.8L Supercharged
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuse Block
>>

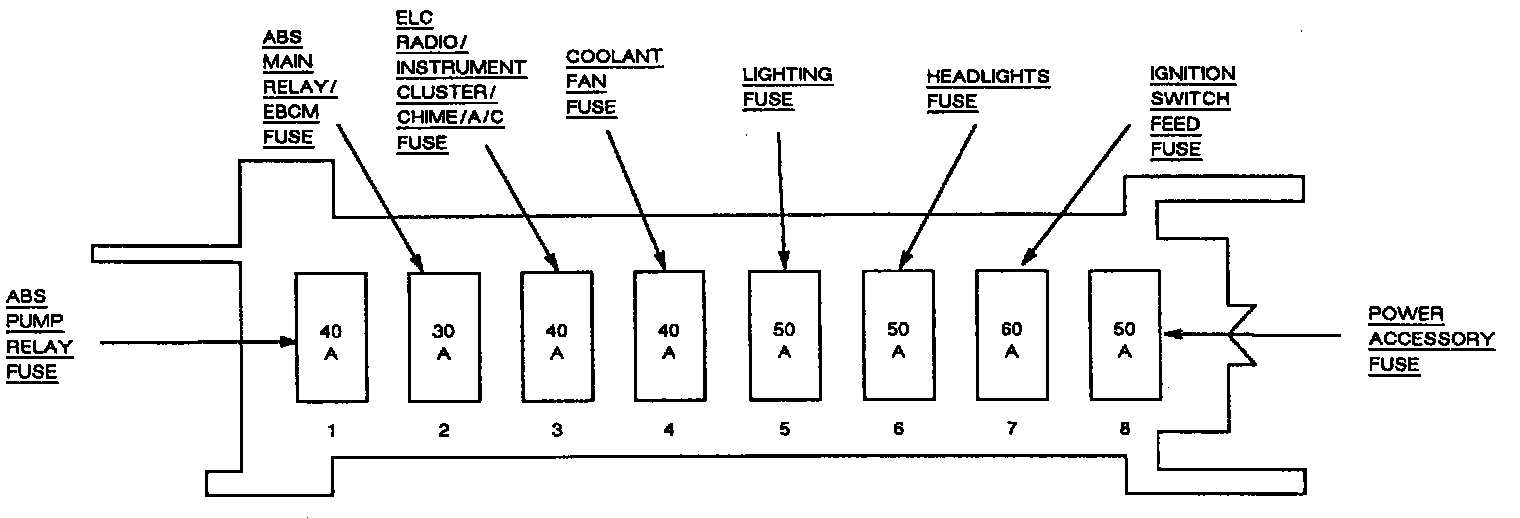

LH Underhood Fuse Block Details
LH Underhood Fuse Block Details
LH:
