Home >> Oldsmobile >> 1992 >> Ninety-Eight V6-3800 3.8L Supercharged >> Repair and Diagnosis >> Powertrain Management >> Locations >> Underhood Fuse/Relay Panel (Rear of Engine Compartment)

Underhood Fuse/Relay Panel (Rear of Engine Compartment)

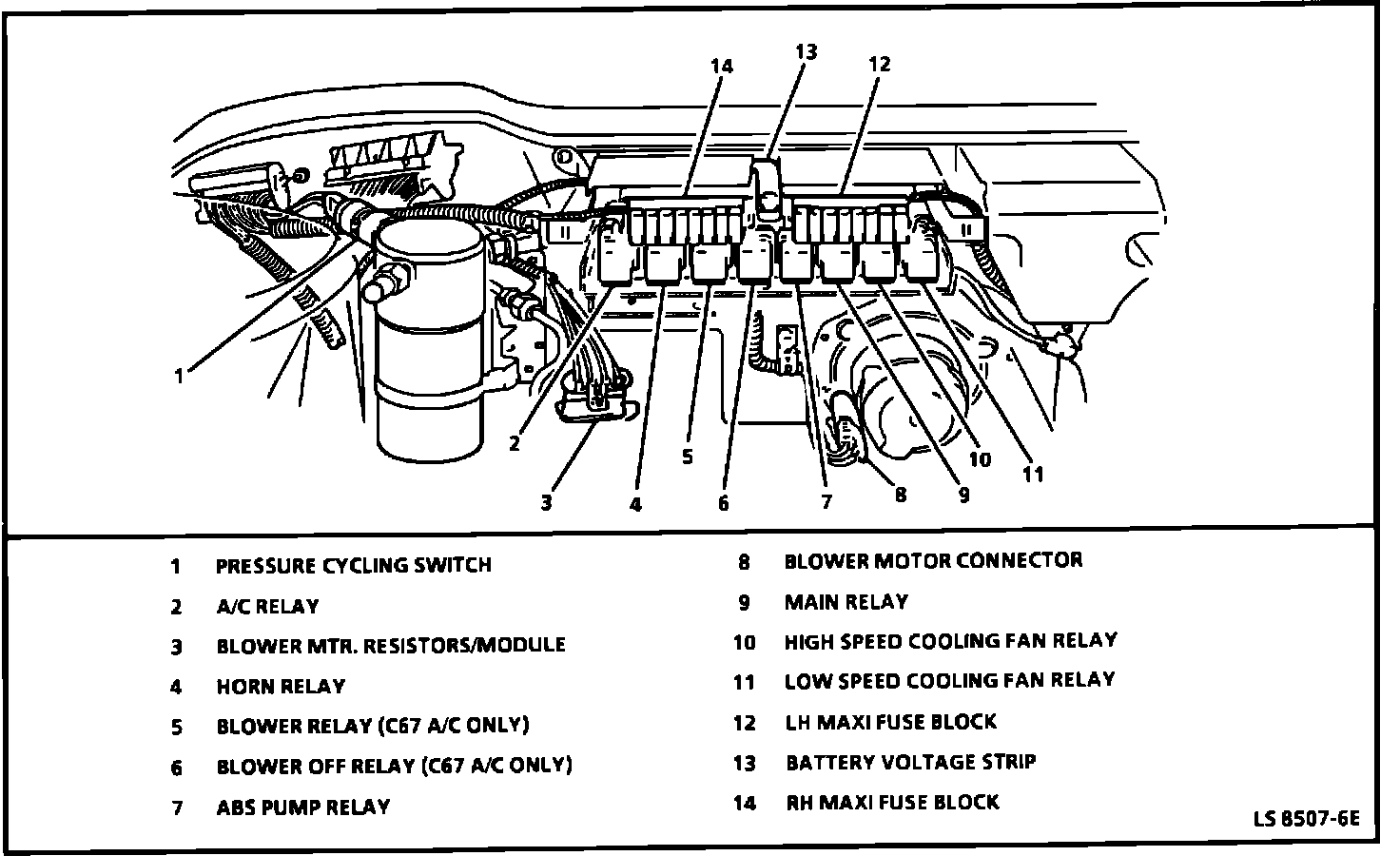

Underhood Fuse/Relay Center (Rear Of Engine Compartment):
