Audible Warning Device Control Module

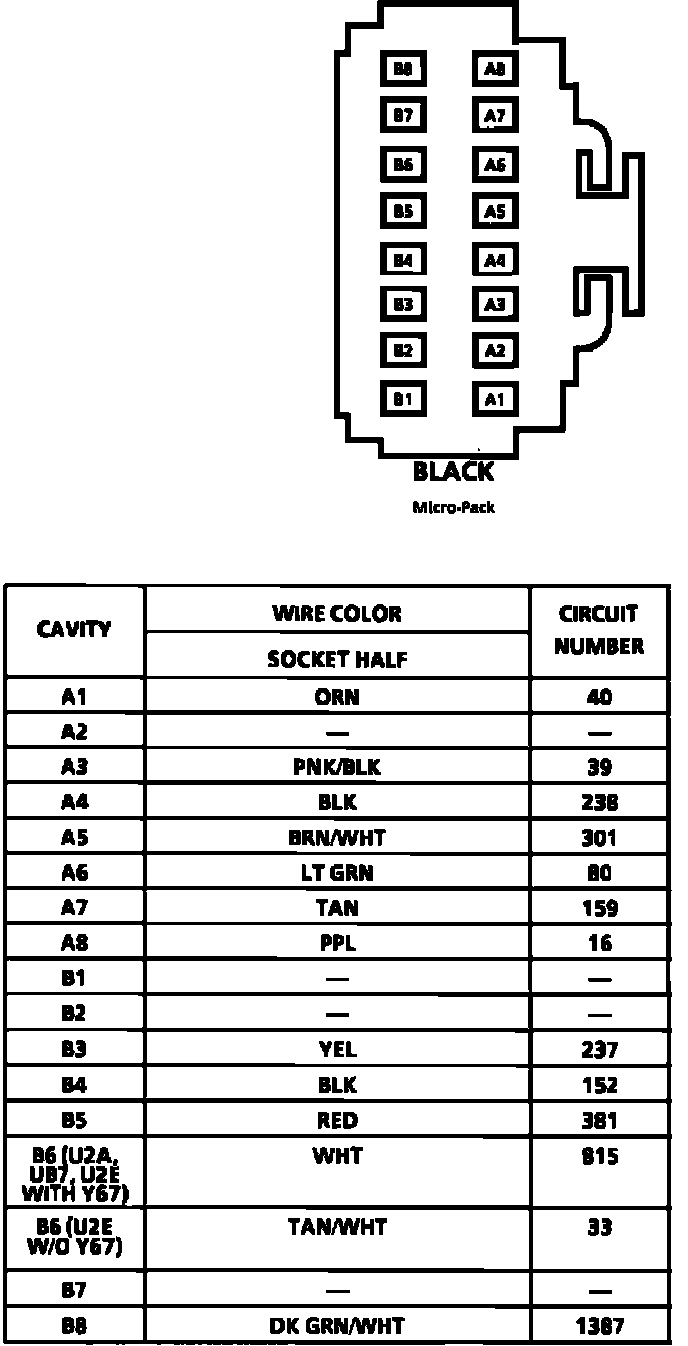

Multi-Function Chime (MFC) Control Module Connector Face:



Multi-Function Chime (MFC) Module Connector Face:
