Driver/Vehicle Information Display
Driver/Vehicle Information Display

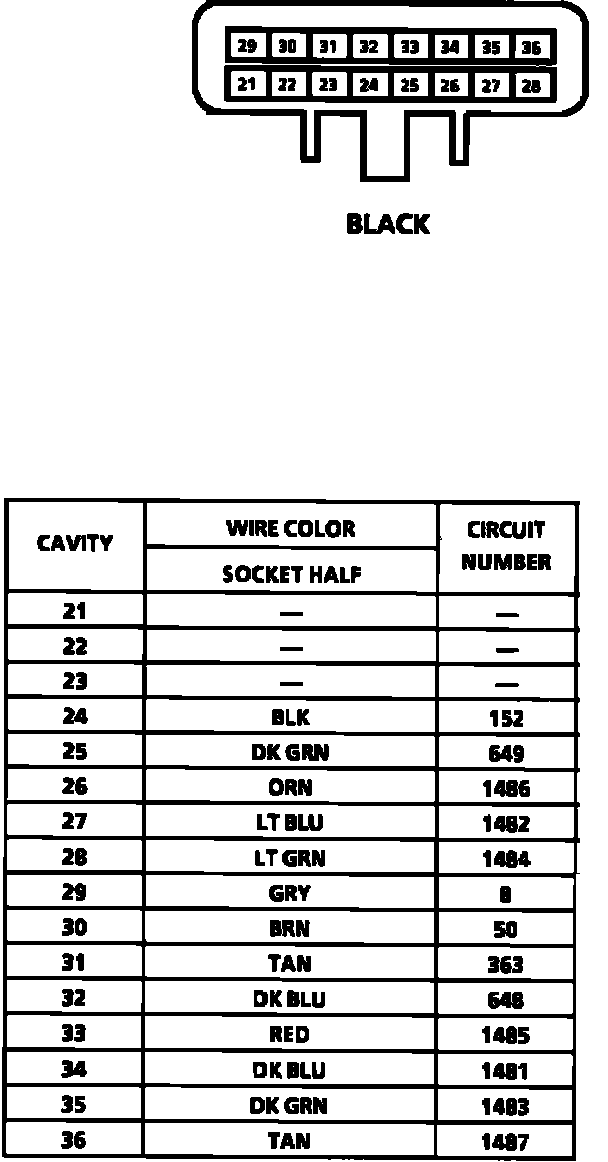

DIC Switch Assembly Connector Face:
