Dual Zone Climate Controls
Dual Zone Climate Controls

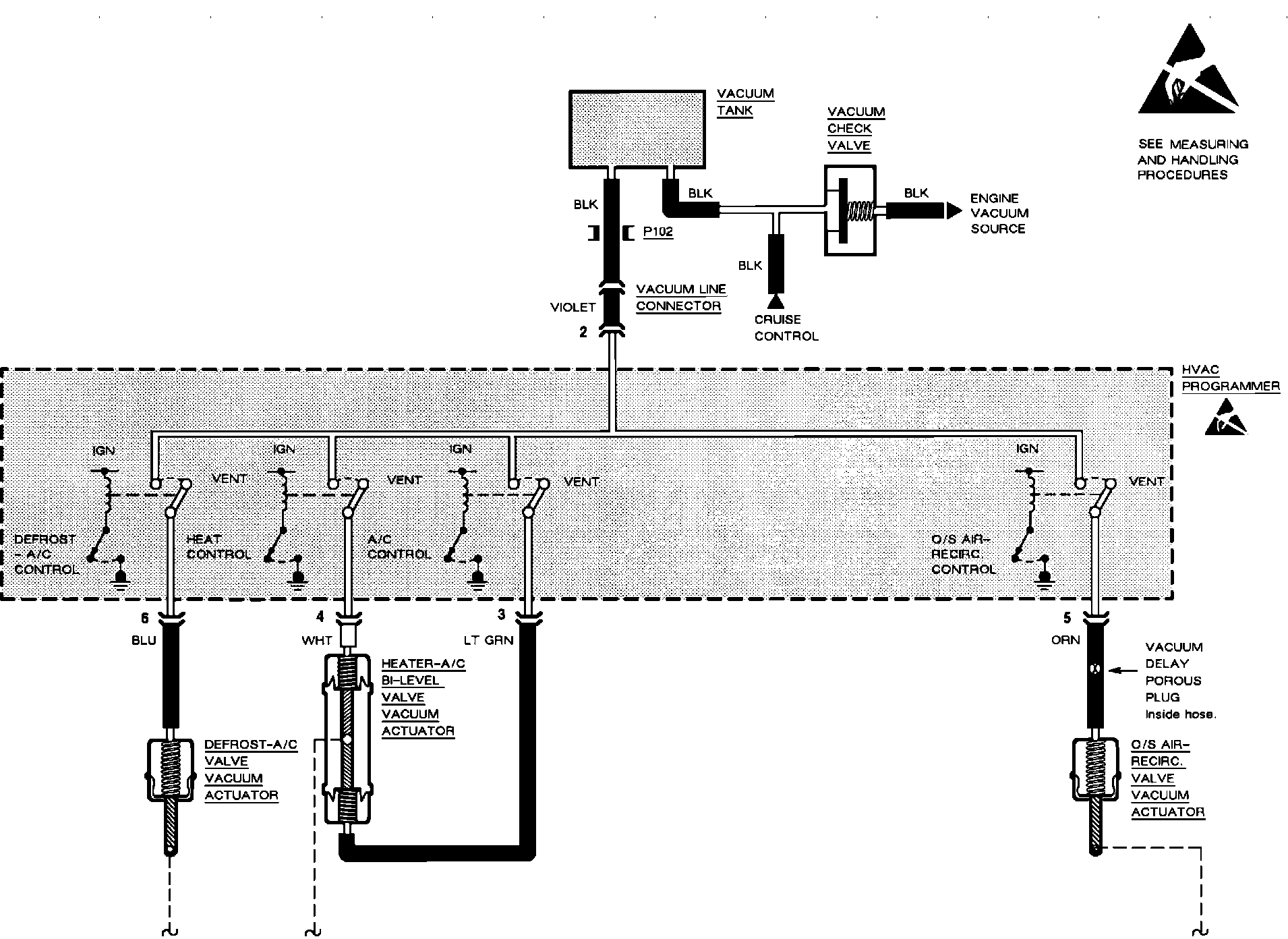

A/C Vacuum Circuit (Part 1 of 2):

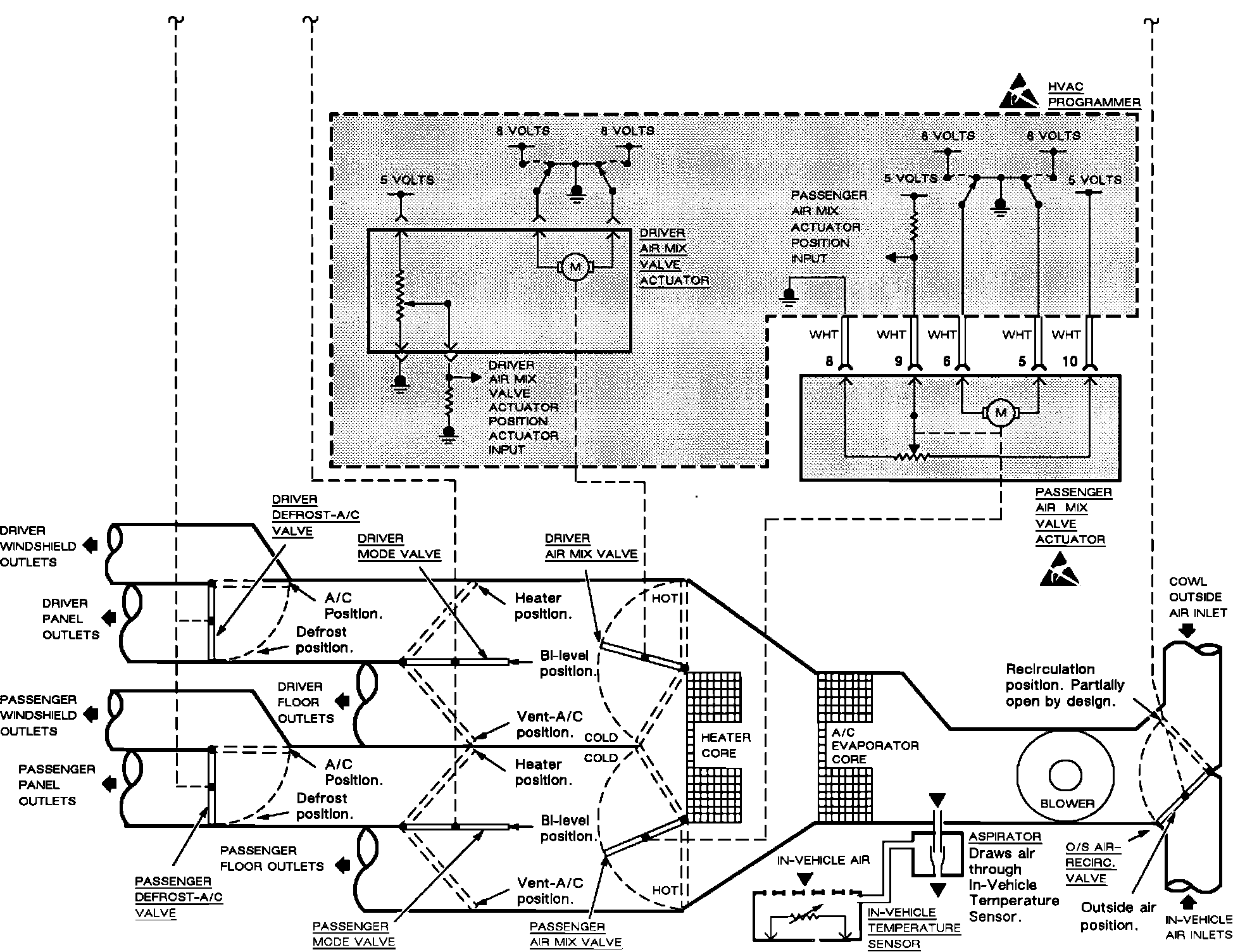

A/C Vacuum Circuit (Part 2 Of 2):
