Operation CHARM
: Car repair manuals for everyone.
Home
>>
Oldsmobile
>>
1992
>>
Ninety-Eight V6-3800 3.8L
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
A Symptom Chart - Gauge Cluster
A Symptom Chart - Gauge Cluster

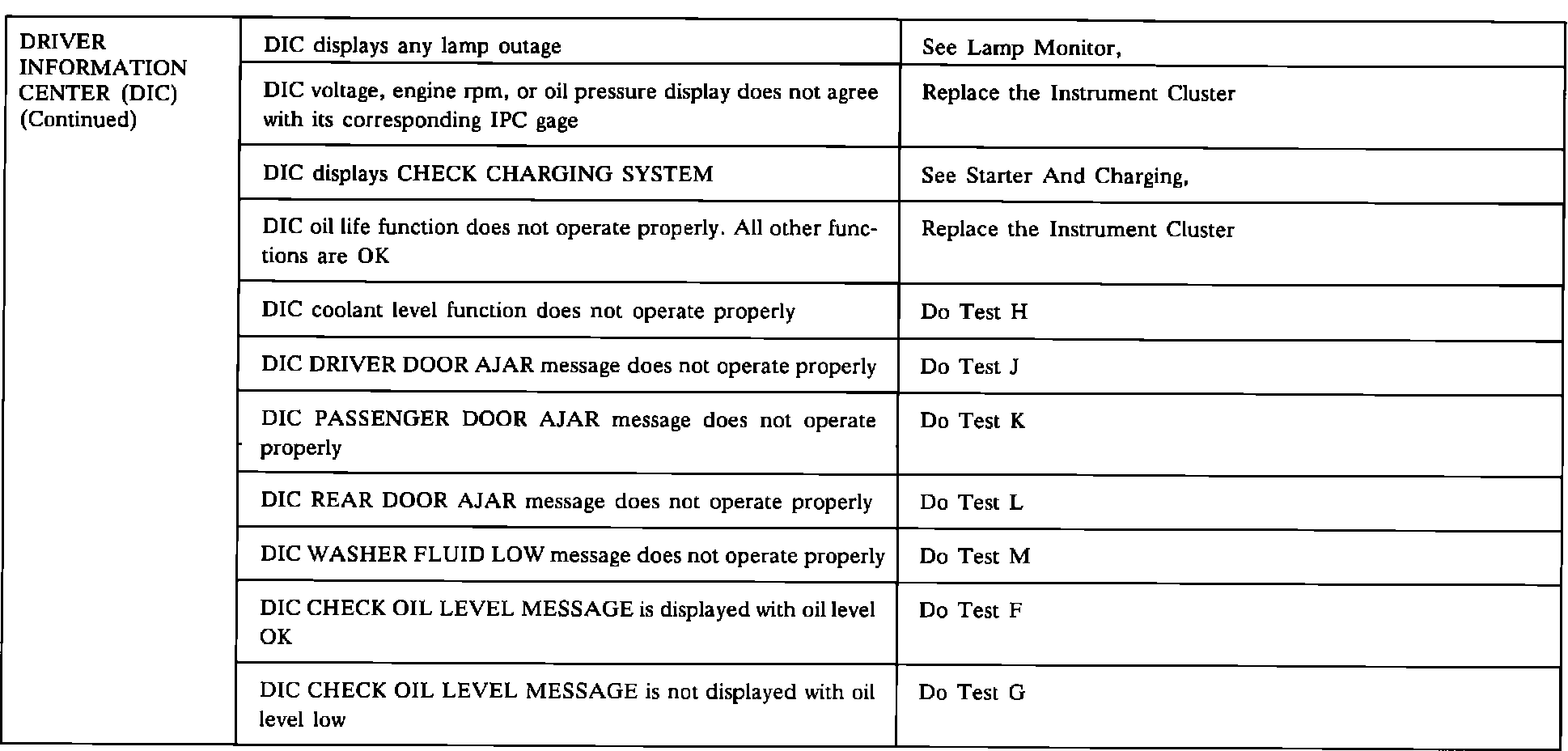

Symptom Diagnosis Chart (Part 1 Of 3):
Symptom Diagnosis Chart (Part 2 Of 3):
Symptom Diagnosis Chart (Part 3 Of 3):
