Home >> Oldsmobile >> 1992 >> Ninety-Eight V6-3800 3.8L >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Lighting and Horns >> Interior Lighting Module >> Locations

Interior Lighting Module: Locations

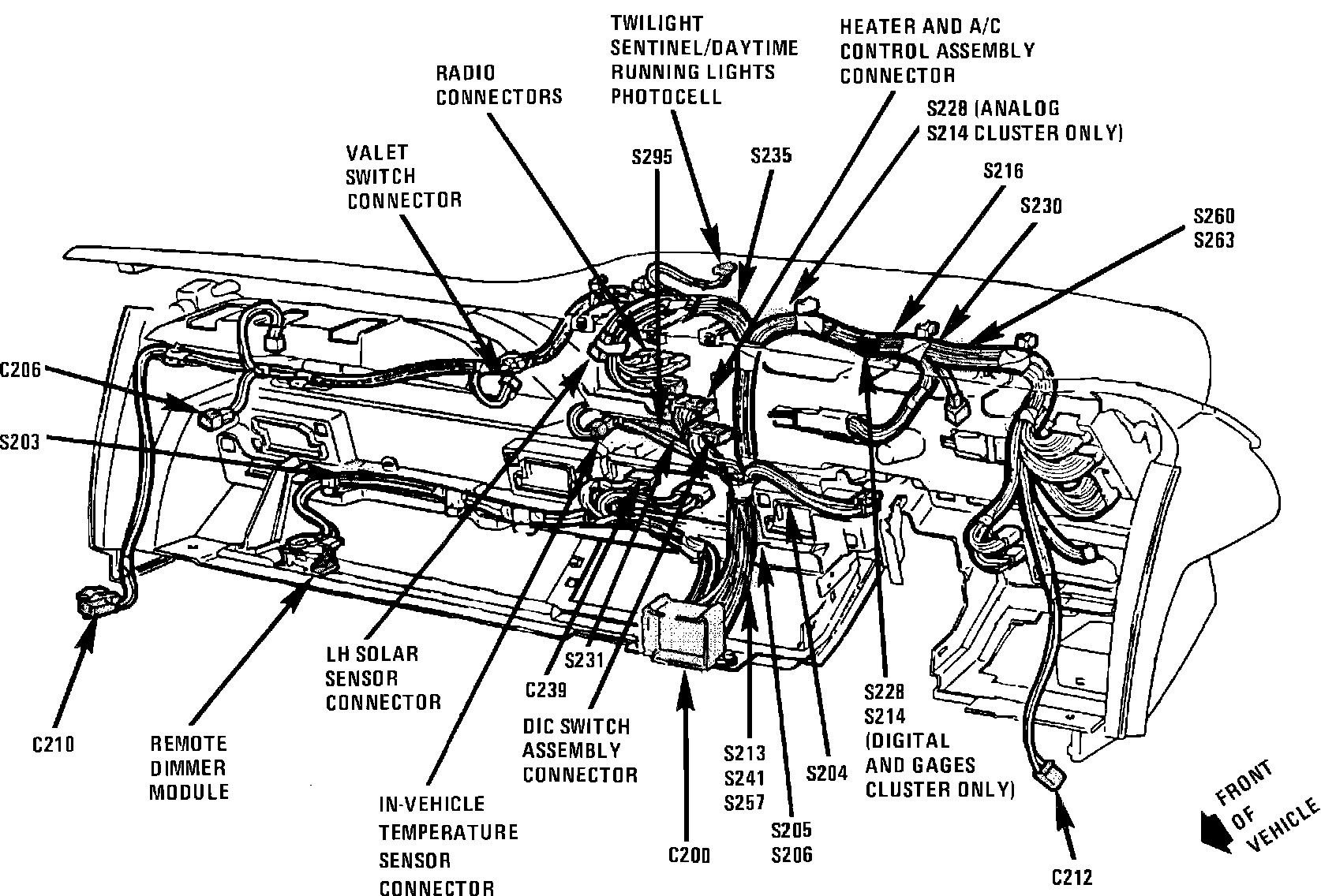

Component Location View. Behind I/P:





Behind lower RH side of I/P
