Operation CHARM
: Car repair manuals for everyone.
Home
>>
Oldsmobile
>>
1992
>>
Ninety-Eight V6-3800 3.8L
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Air Bag Systems
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

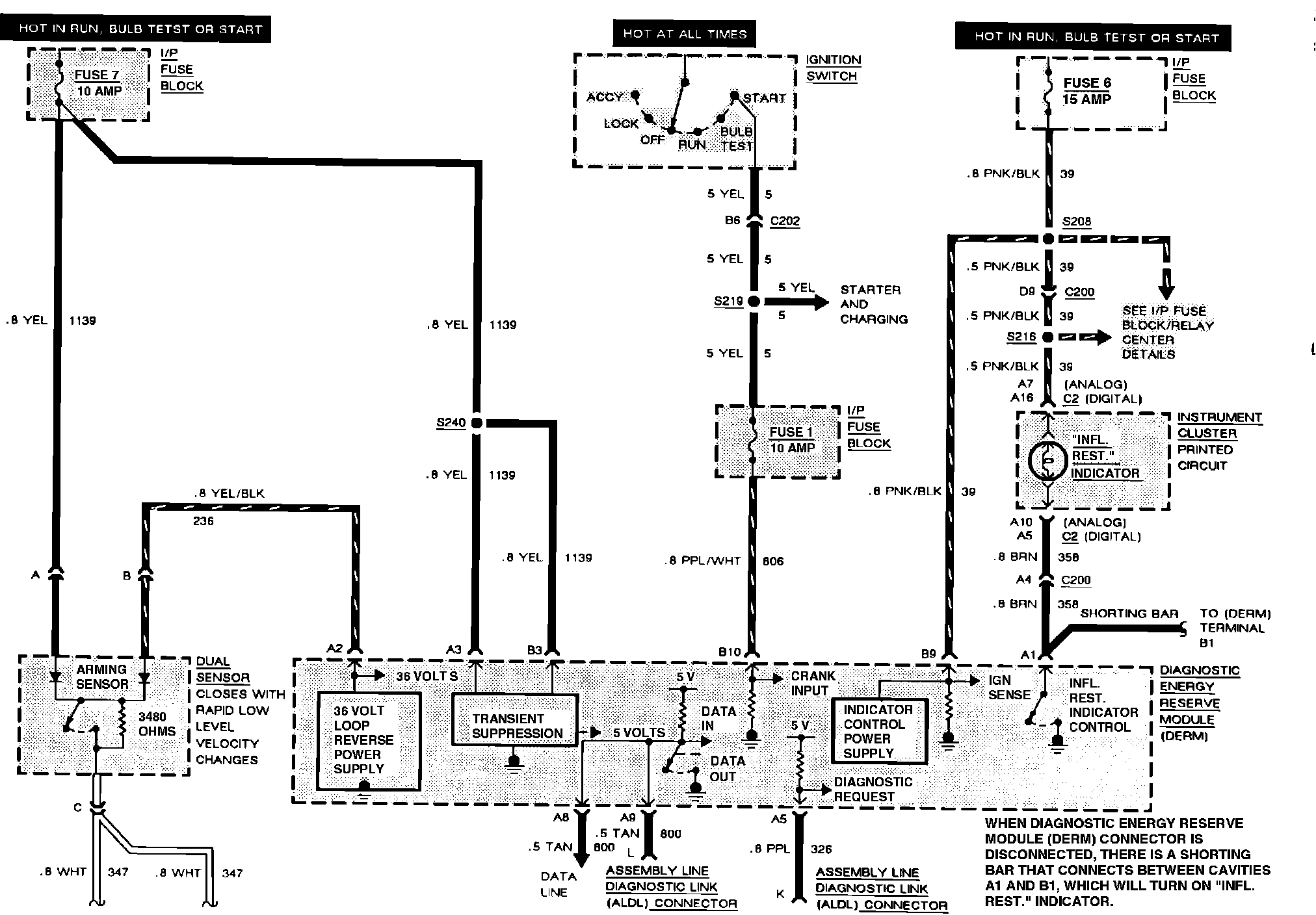

SIR Wiring Circuit (Part 1 Of 2):

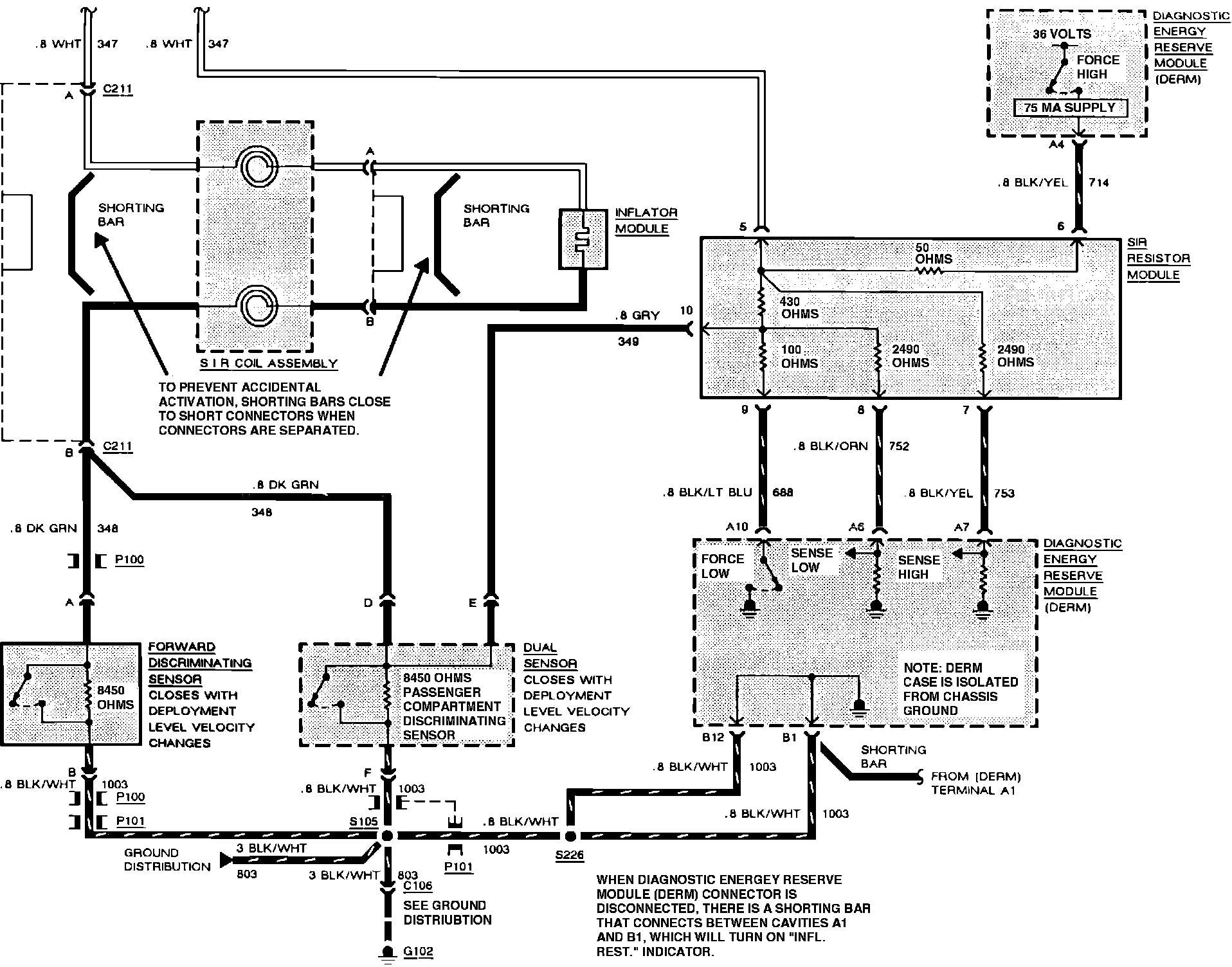

SIR Wiring Circuit (Part 2 Of 2):
