Electrical Diagrams

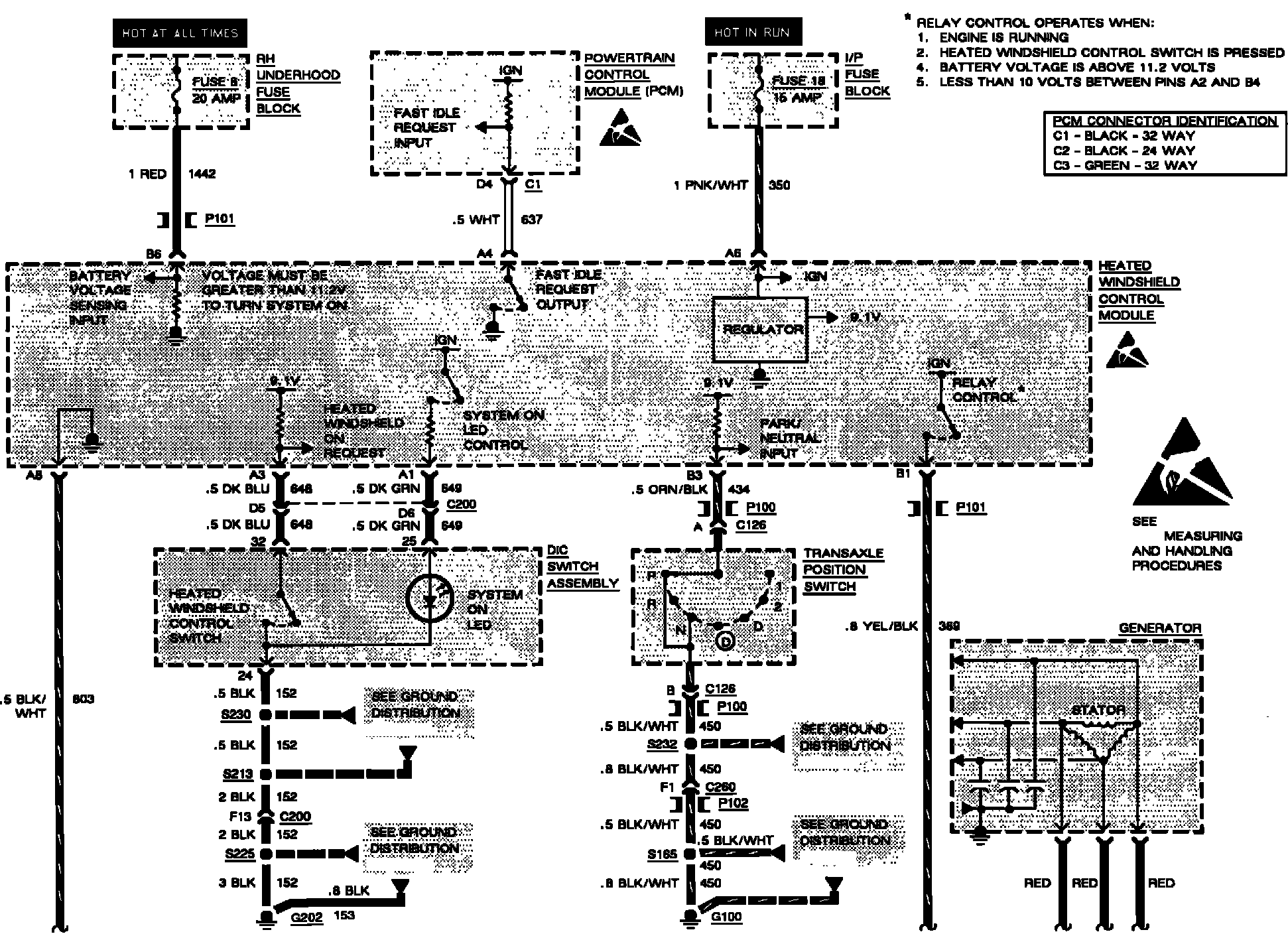

Heated Windshield (Part 1 of 2):

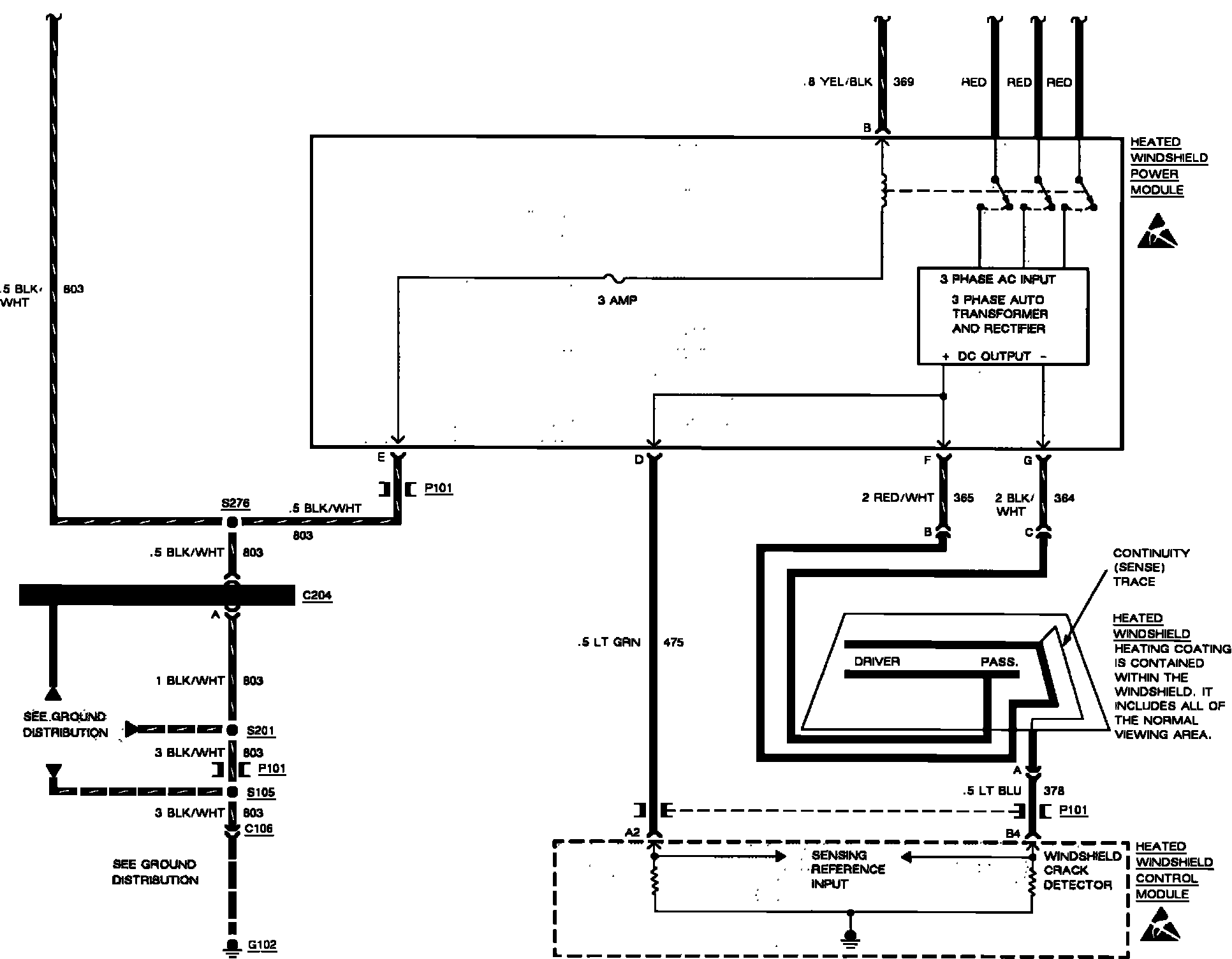

Heated Windshield (Part 2 of 2):



Rear Defogger & Heated Mirror:
