Home >> Oldsmobile >> 1992 >> Toronado V6-3800 3.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Instrument Panel, Gauges and Warning Indicators >> Compass

Compass

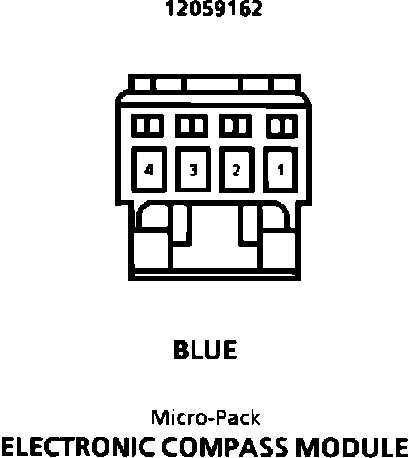

Connector View.:

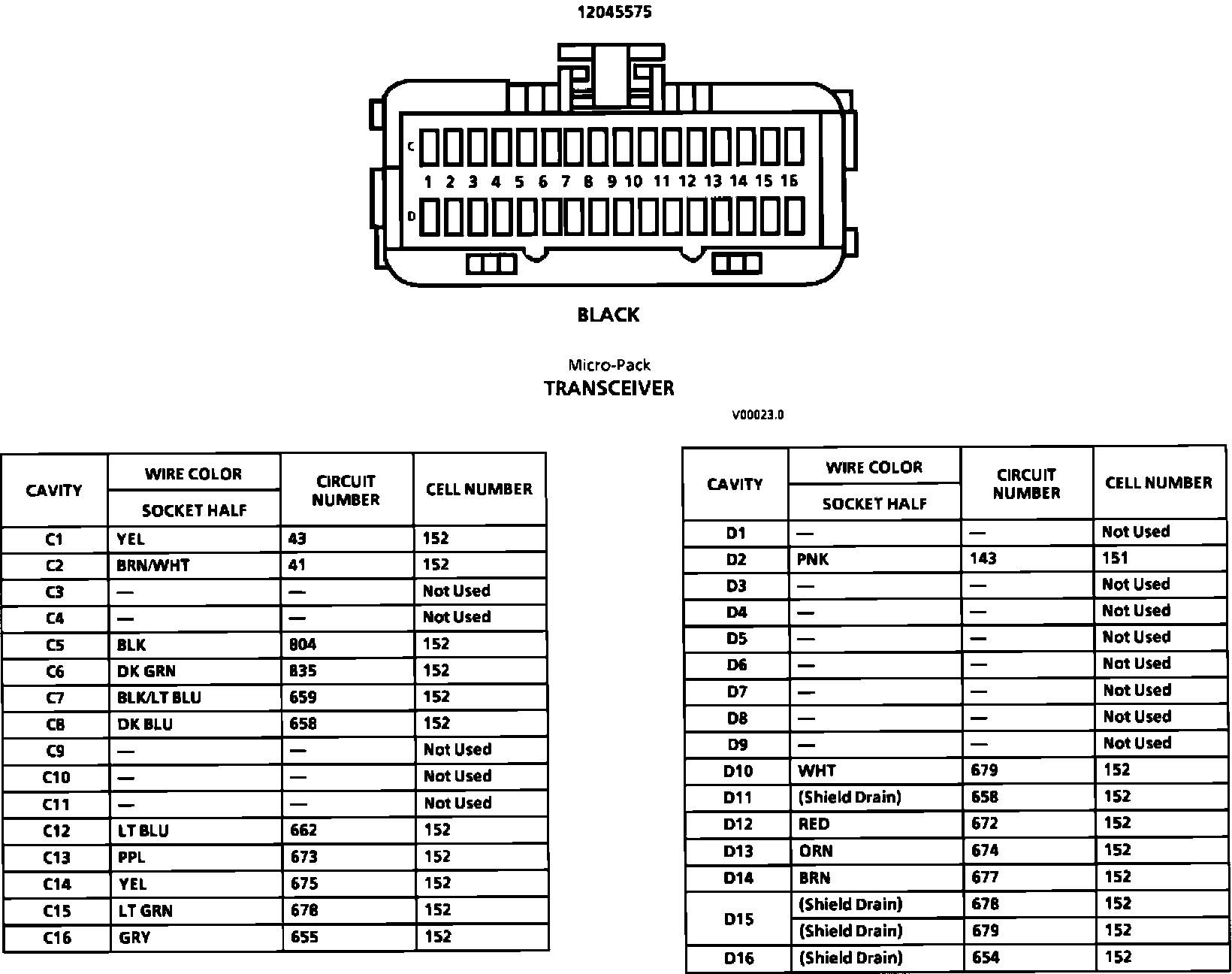

Connector View.:
