Operation CHARM
: Car repair manuals for everyone.
Home
>>
Oldsmobile
>>
1992
>>
Toronado V6-3800 3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Seat Switch
>>

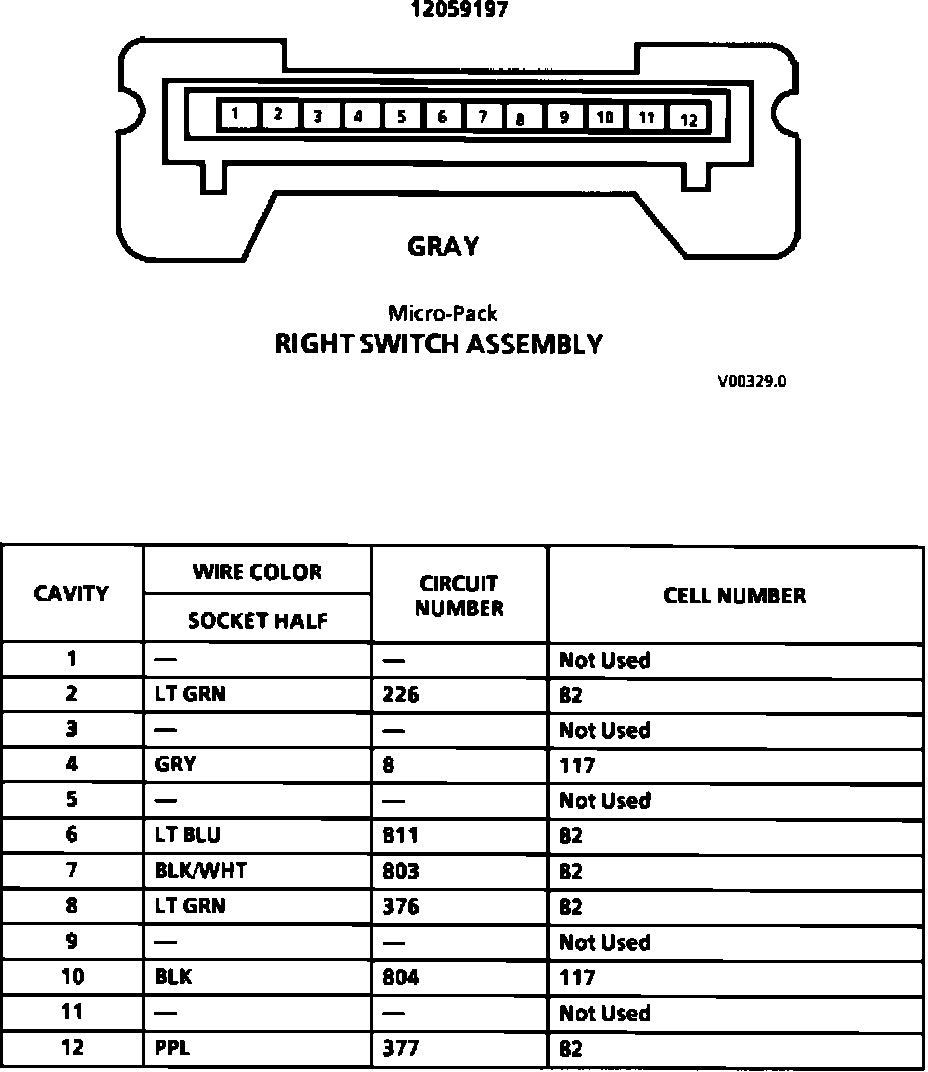

Right Switch Assembly
Right Switch Assembly
Connector View.:
