Home >> Oldsmobile >> 1992 >> Toronado V6-3800 3.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Window Switch

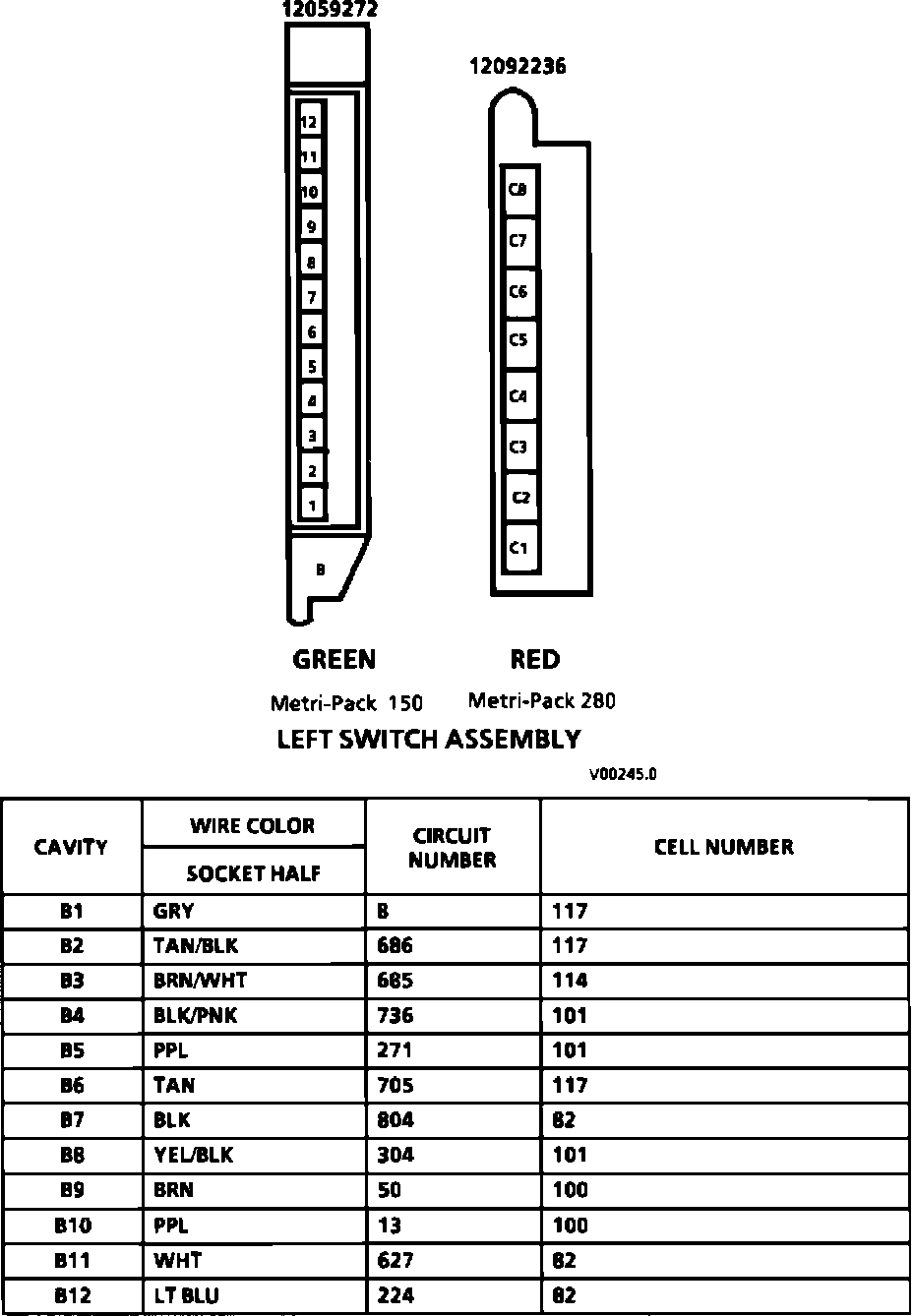

Power Window Switch

Connector View.:



Connector View.:



Connector View.:
