Keyless Entry

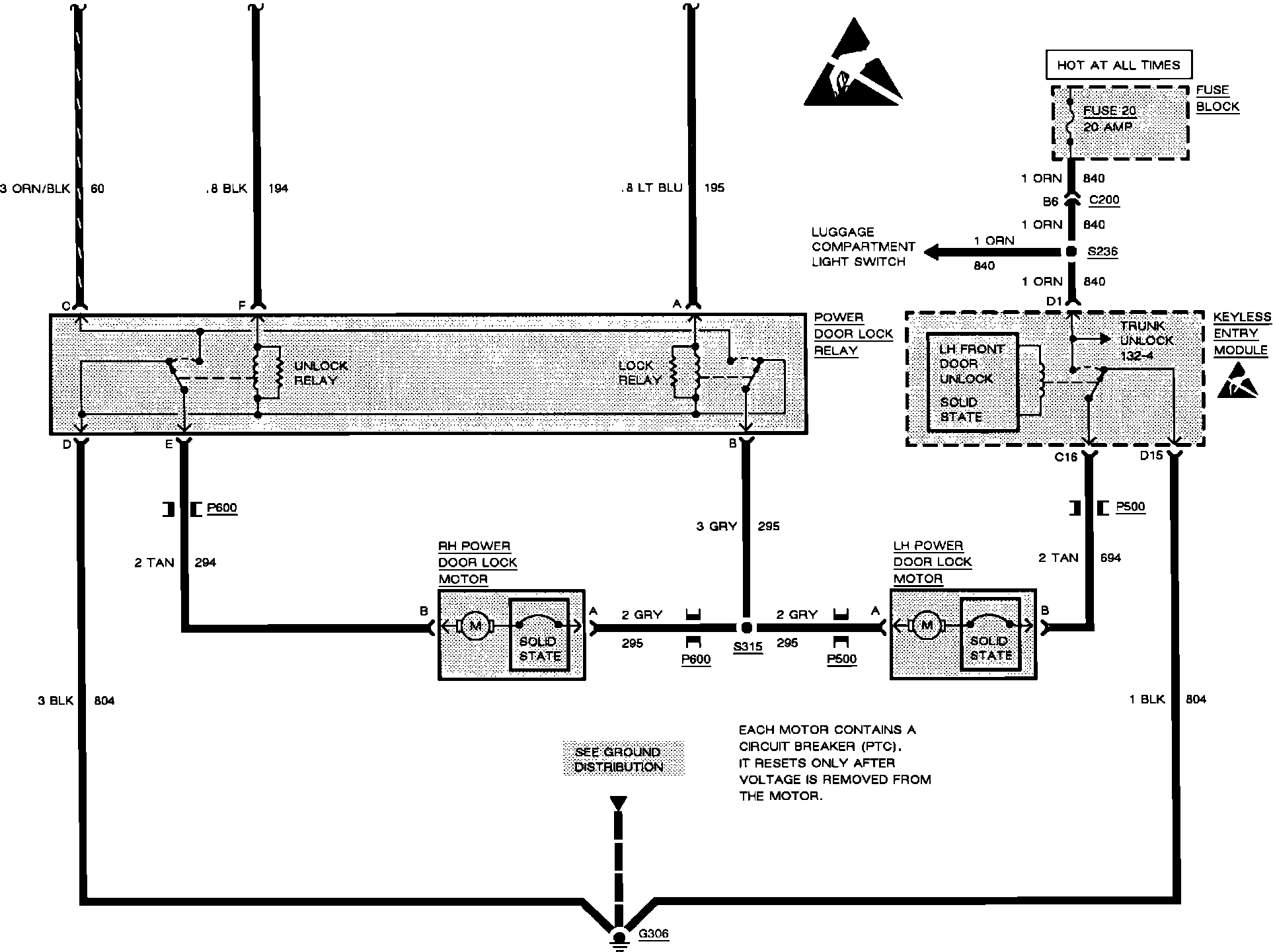

Wiring Diagram.:

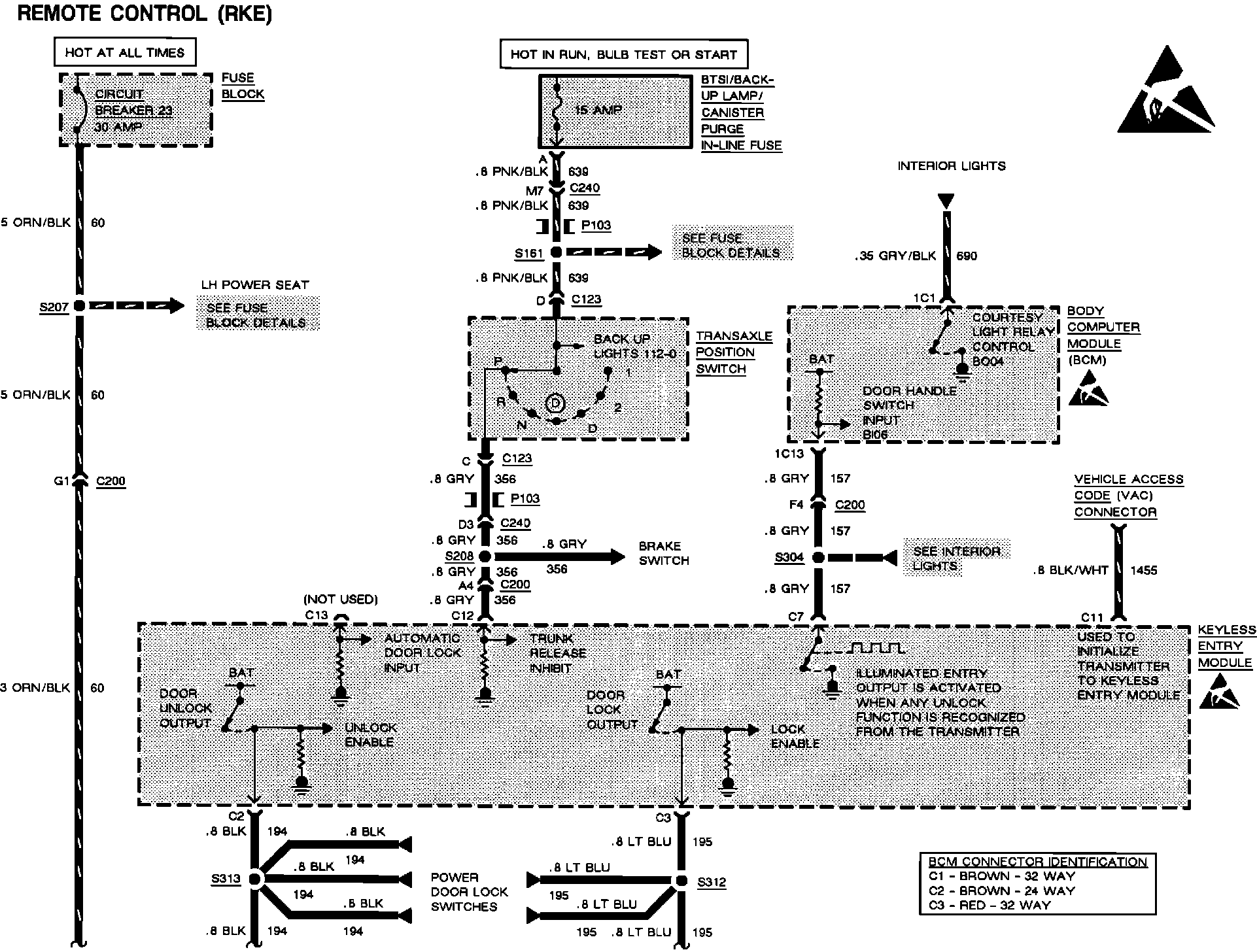

Wiring Diagram.:

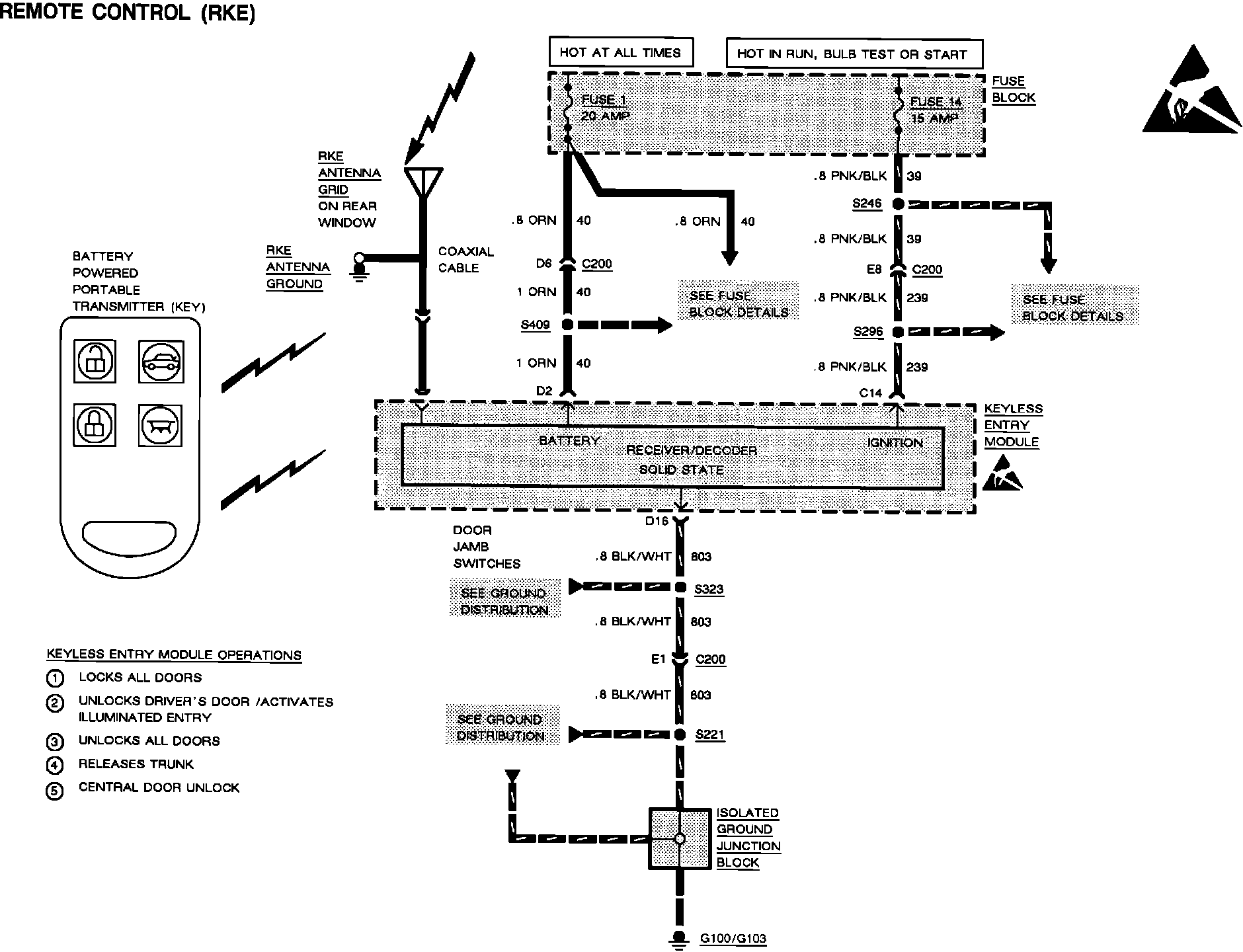

Wiring Diagram.:

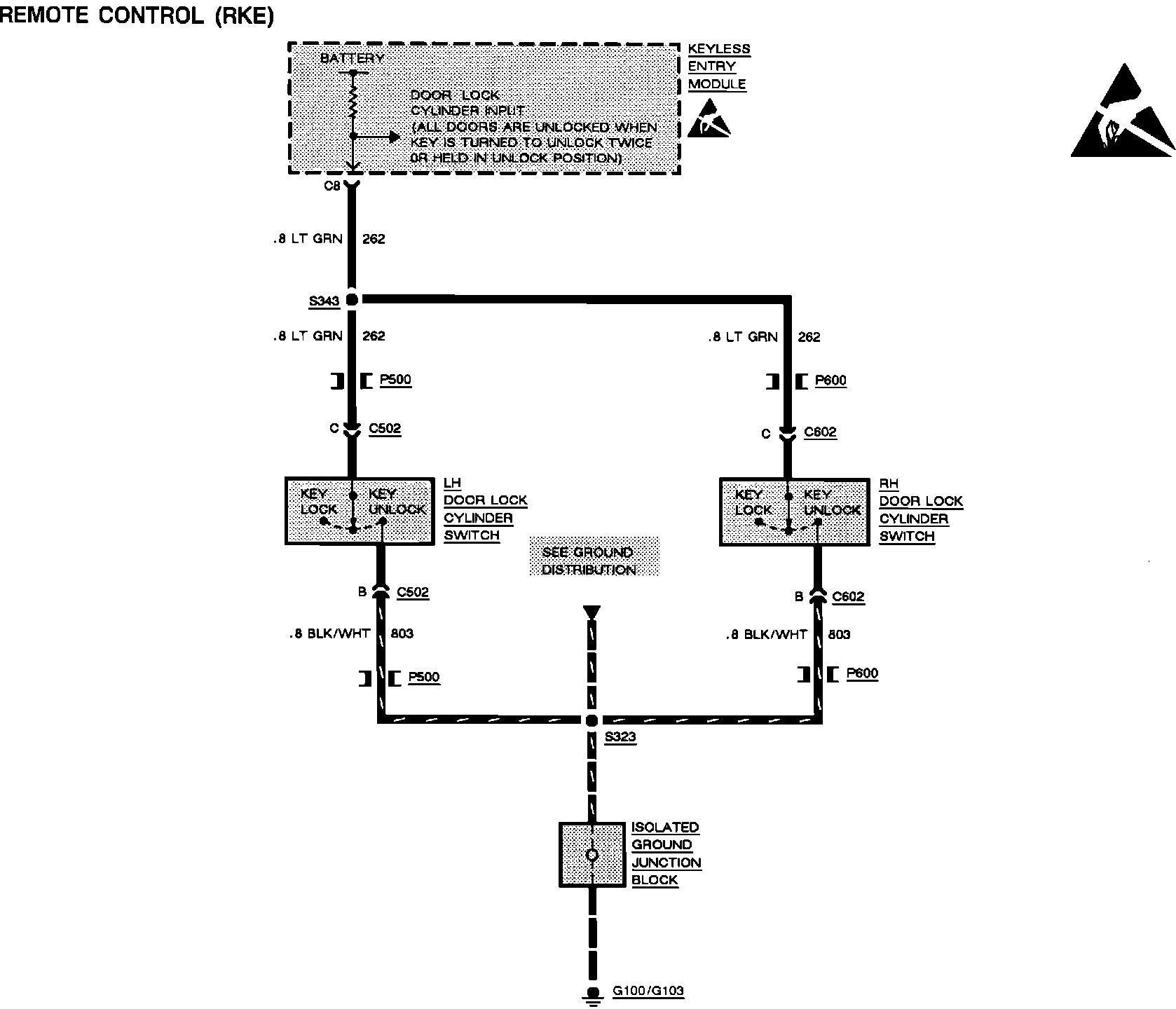

Wiring Diagram.:



Wiring Diagram.:
