Home >> Oldsmobile >> 1992 >> Toronado V6-3800 3.8L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Turn Signals

Turn Signals

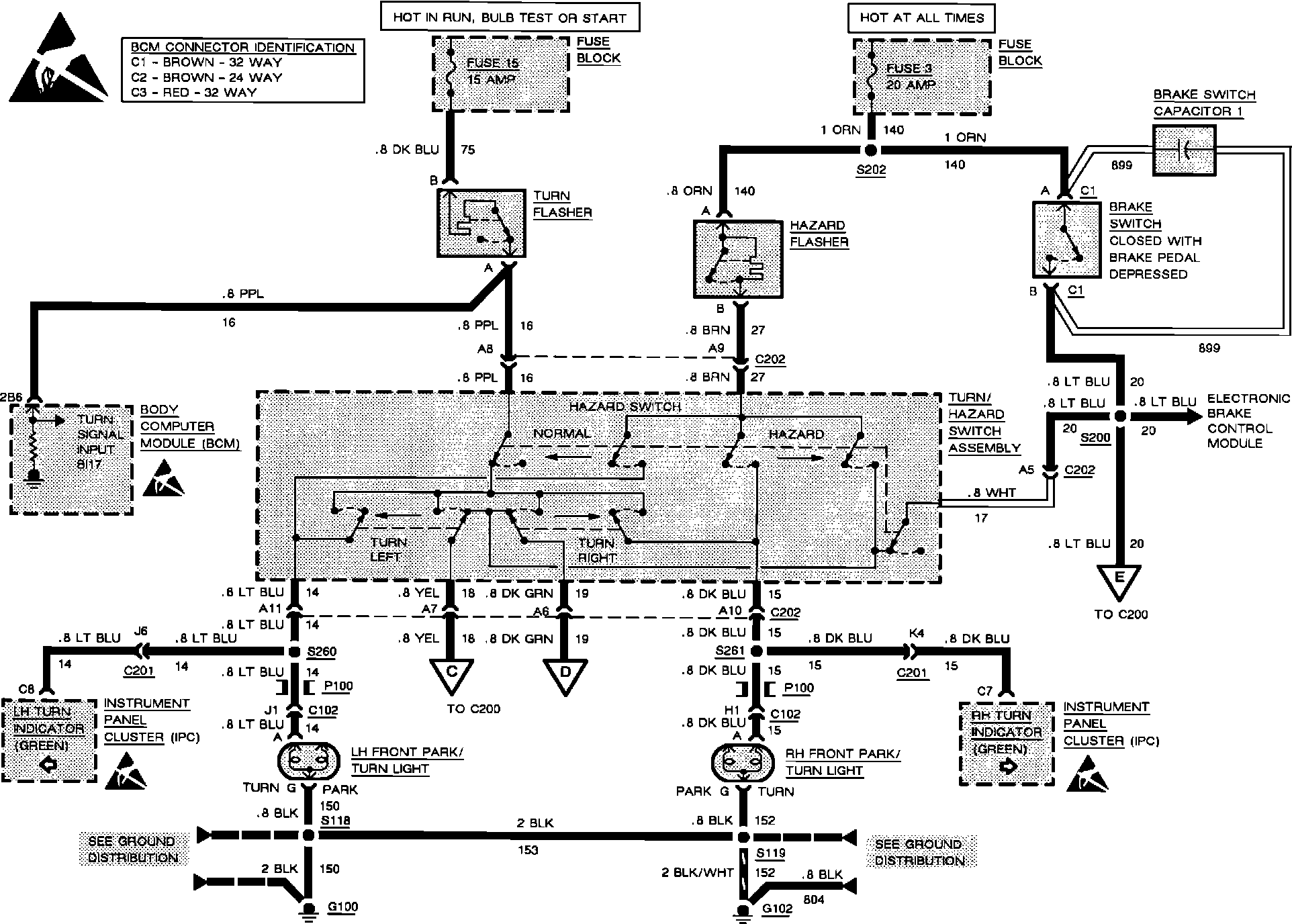

Wiring Diagram.:

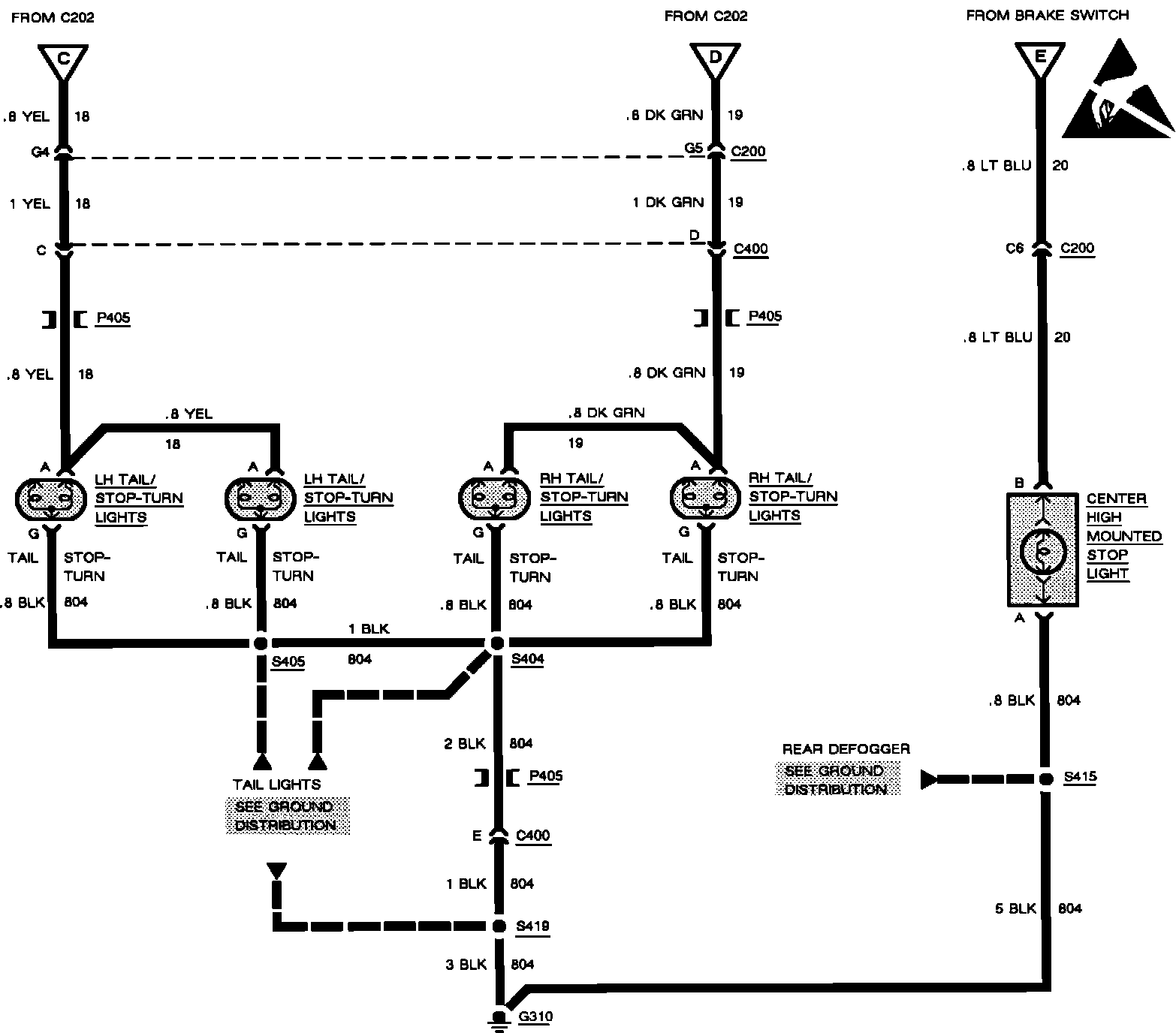

Wiring Diagram.:
