Idle Speed Control, Trans. CONV. Clutch, A/C, Emission Controls

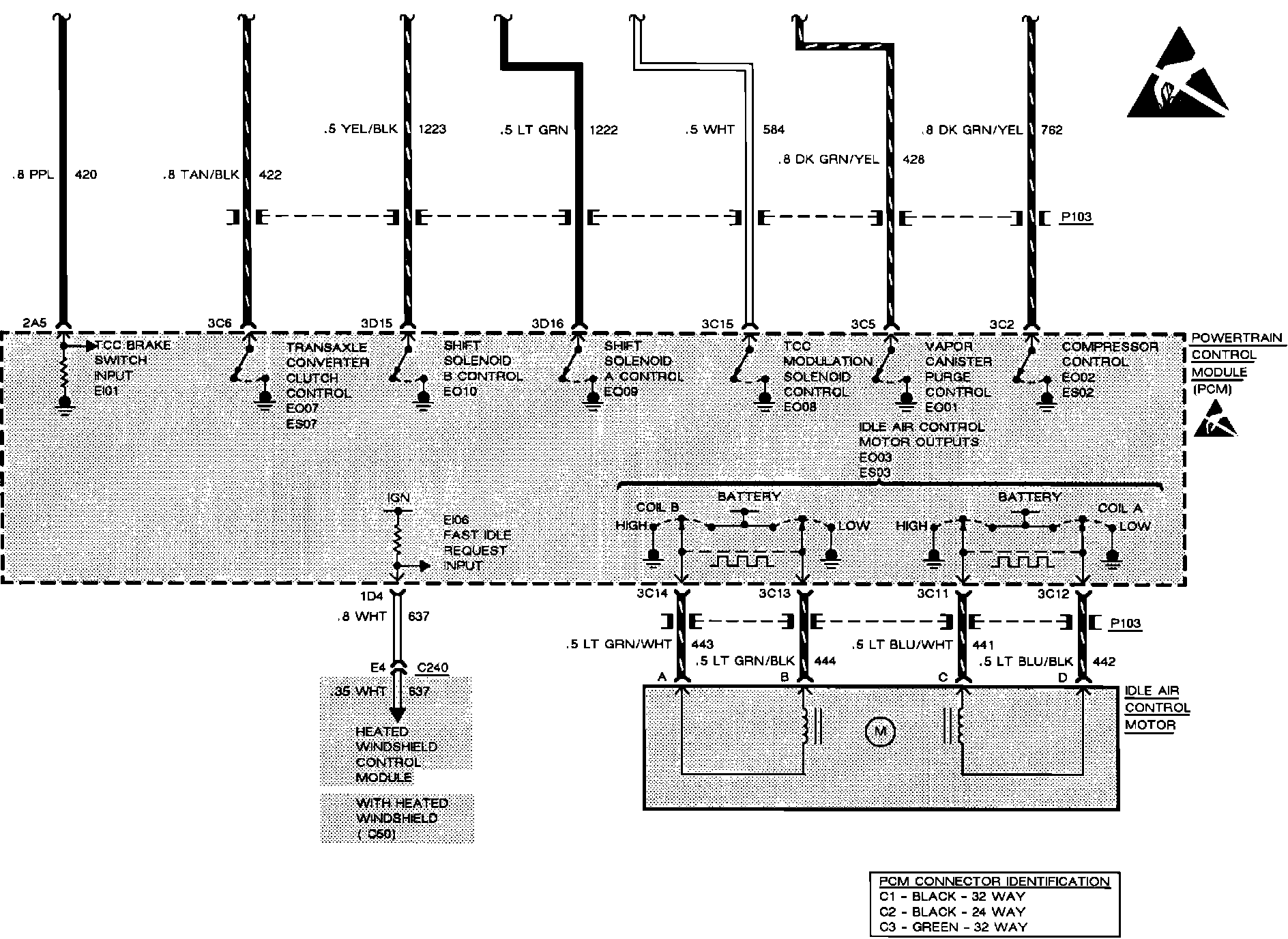

Wiring Diagram.:



Wiring Diagram.:
