Home >> Oldsmobile >> 1993 >> Achieva V6-3300 3.3L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Windows >> 4 Door

4 Door

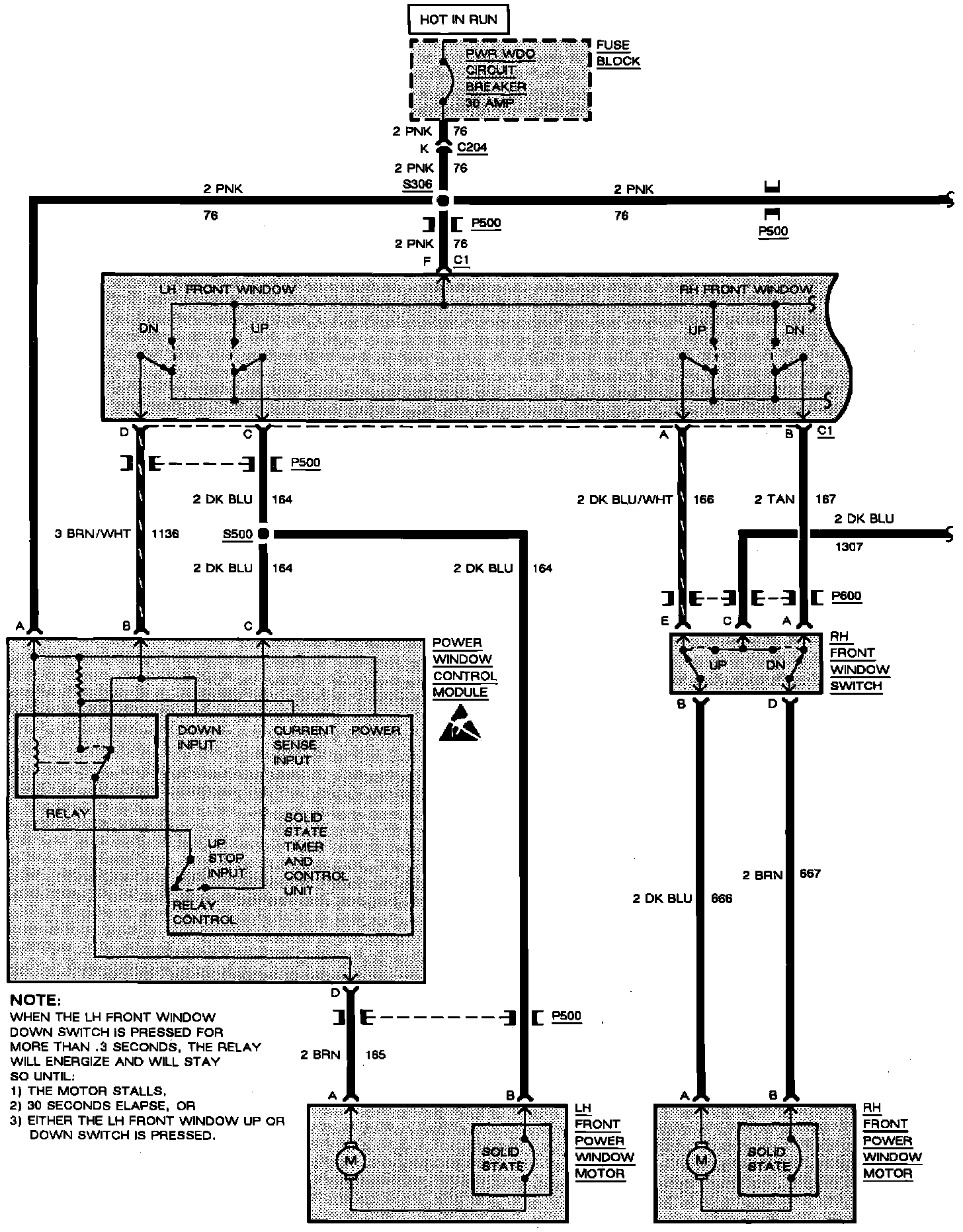

Power Windows (4 Door):



Power Windows: 4 Door:
