Instrument Cluster / Carrier: Service and Repair

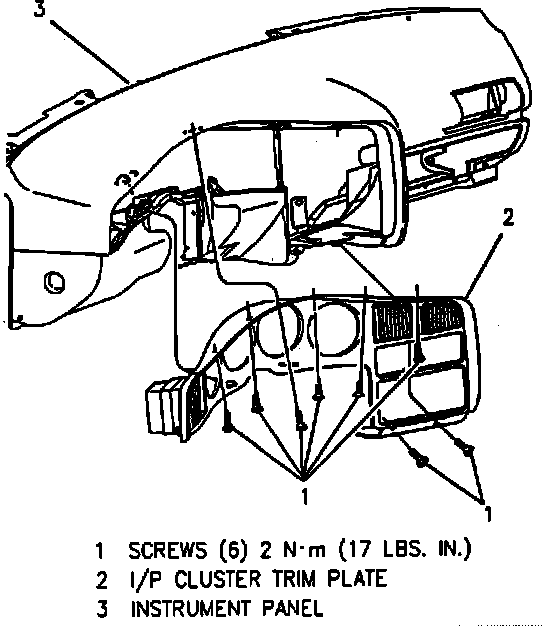

Fig. 28 Instrument Cluster Trim Plate Removal:

1. Disconnect battery ground cable.
2. Remove steering wheel.
3. Remove steering column covers.
4. Remove instrument cluster trim plate eight attaching screws, Fig. 28.
5. Pull trim plate rearward to disconnect electrical connectors, then remove plate.
6. Remove instrument cluster four attaching screws, then remove cluster.
7. Reverse procedure to install. Torque instrument cluster trim plate attaching screws to 17 inch lbs.
