Remote Keyless Entry

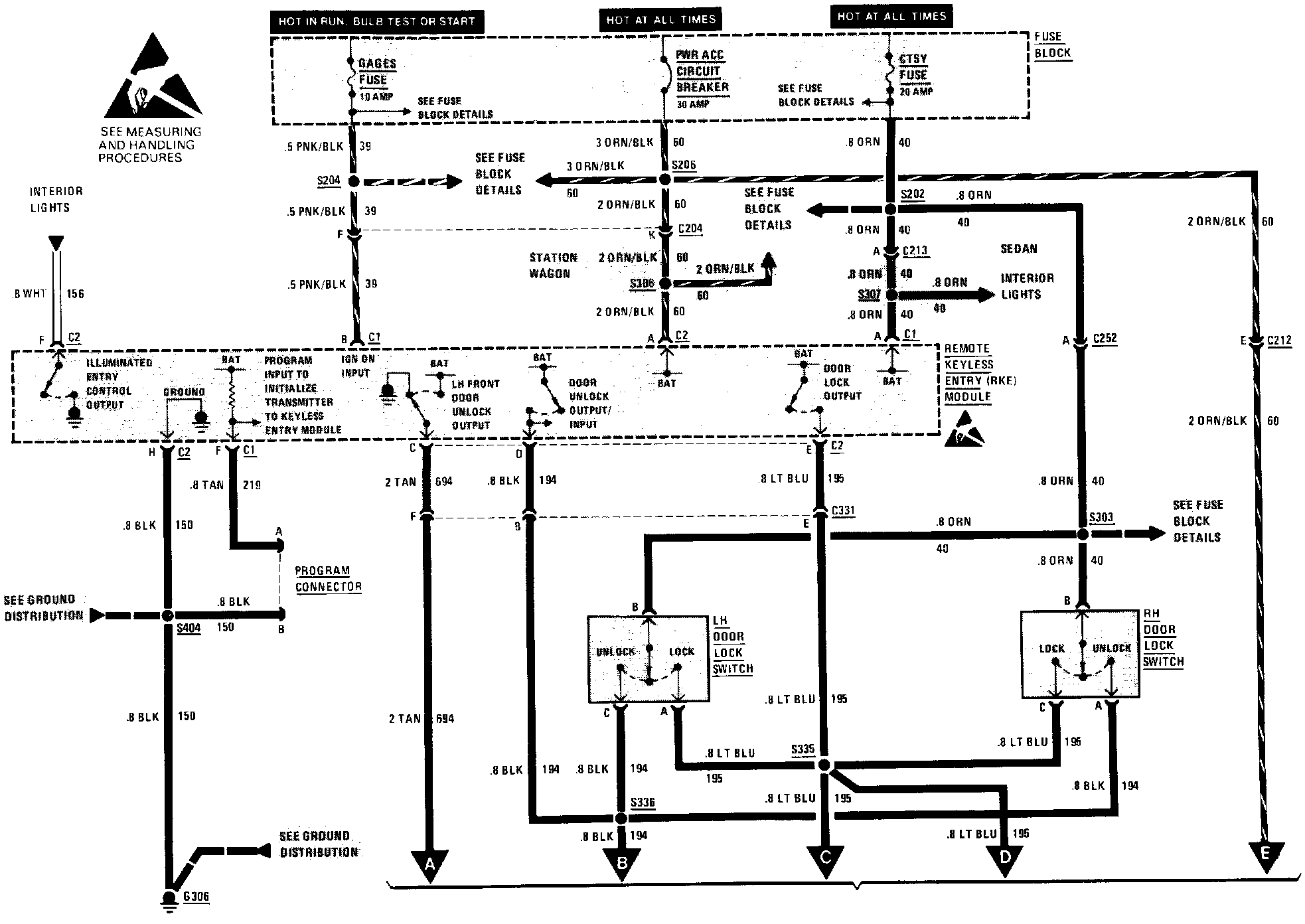

Remote Keyless Entry (RKE):

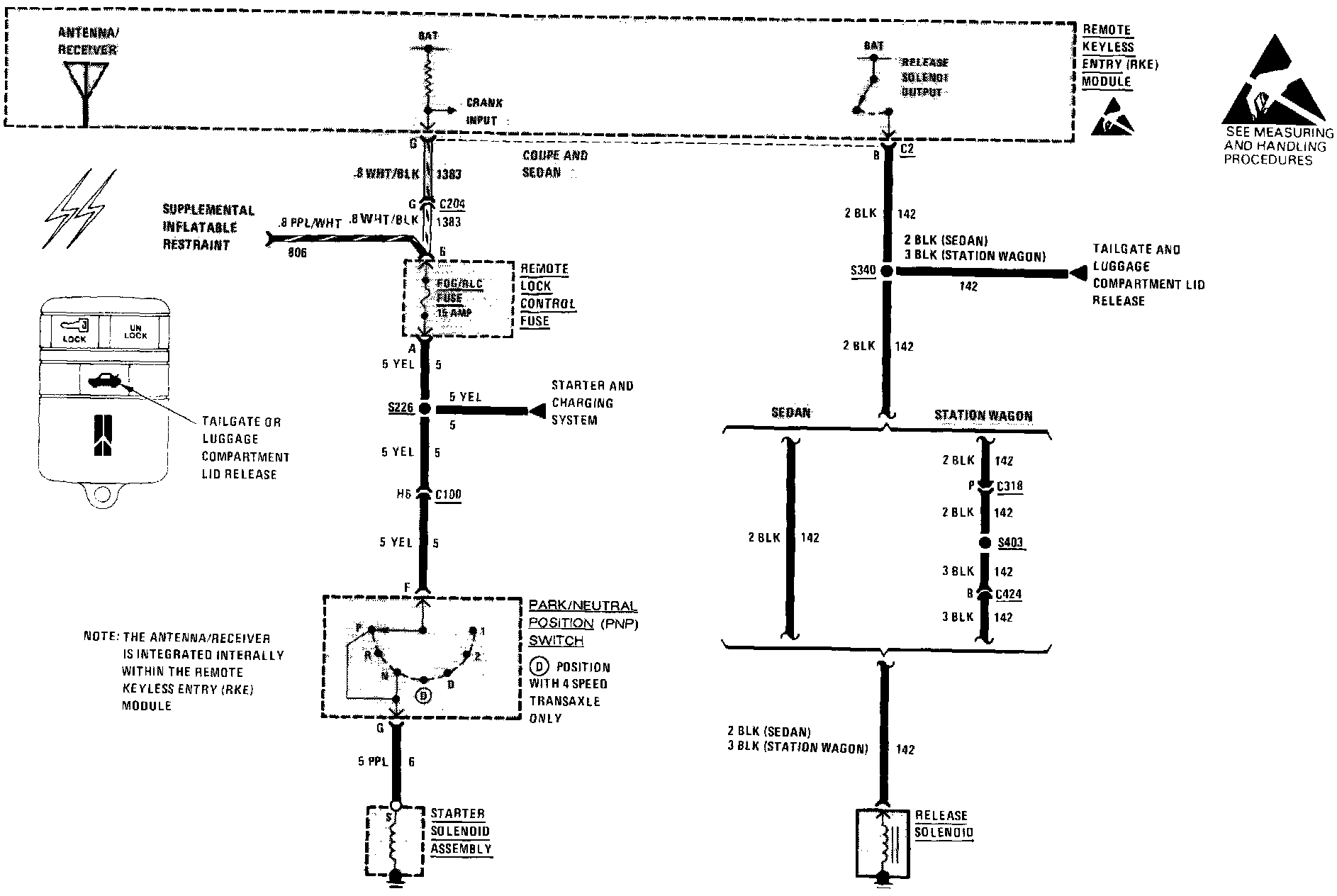

Remote Keyless Entry (RKE):



Remote Keyless Entry (RKE):
