Home >> Oldsmobile >> 1993 >> Cutlass Ciera Cruiser V6-3300 3.3L MFI VIN N >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Engine Sensors, A/T Position Switch & MIL

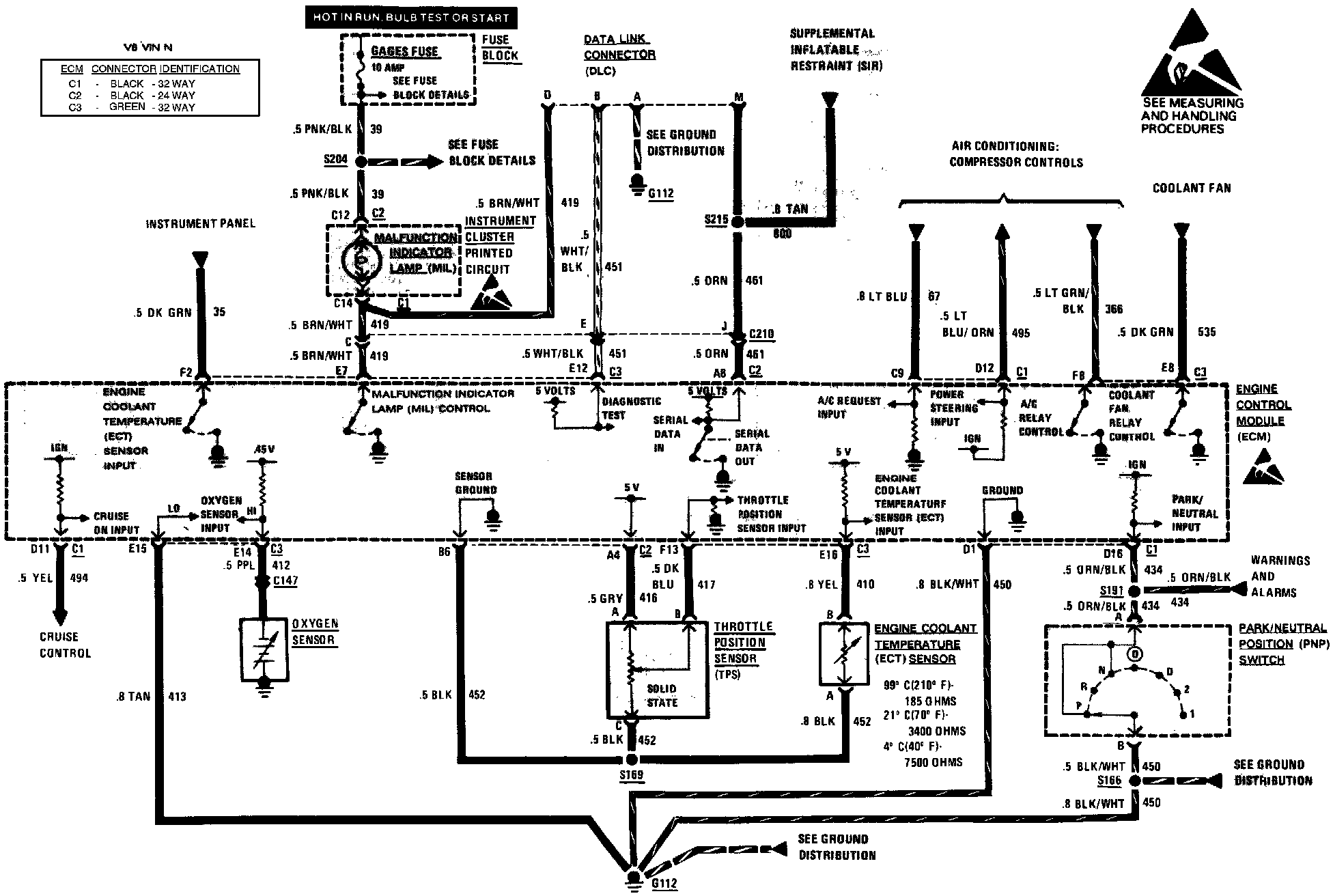

Engine Sensors, A/T Position Switch & MIL

Multiport Fuel Injection:
