Home >> Oldsmobile >> 1993 >> Cutlass Ciera L4-2.2L VIN 4 >> Repair and Diagnosis >> Diagrams >> Components >> Relays >> Fuel Door Release Relay

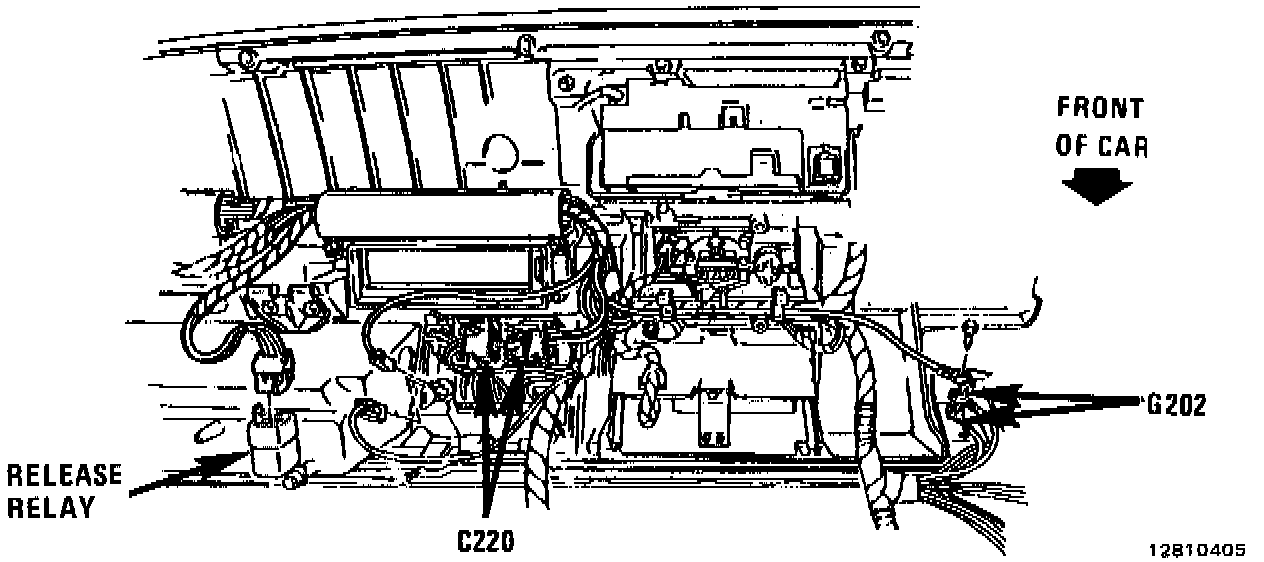

Fuel Door Release Relay

Component Location Views:
