Home >> Oldsmobile >> 1993 >> Cutlass Ciera L4-2.2L VIN 4 >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Fuel Injection, Ignition, & Malfunction Indicator Lamp (MIL)

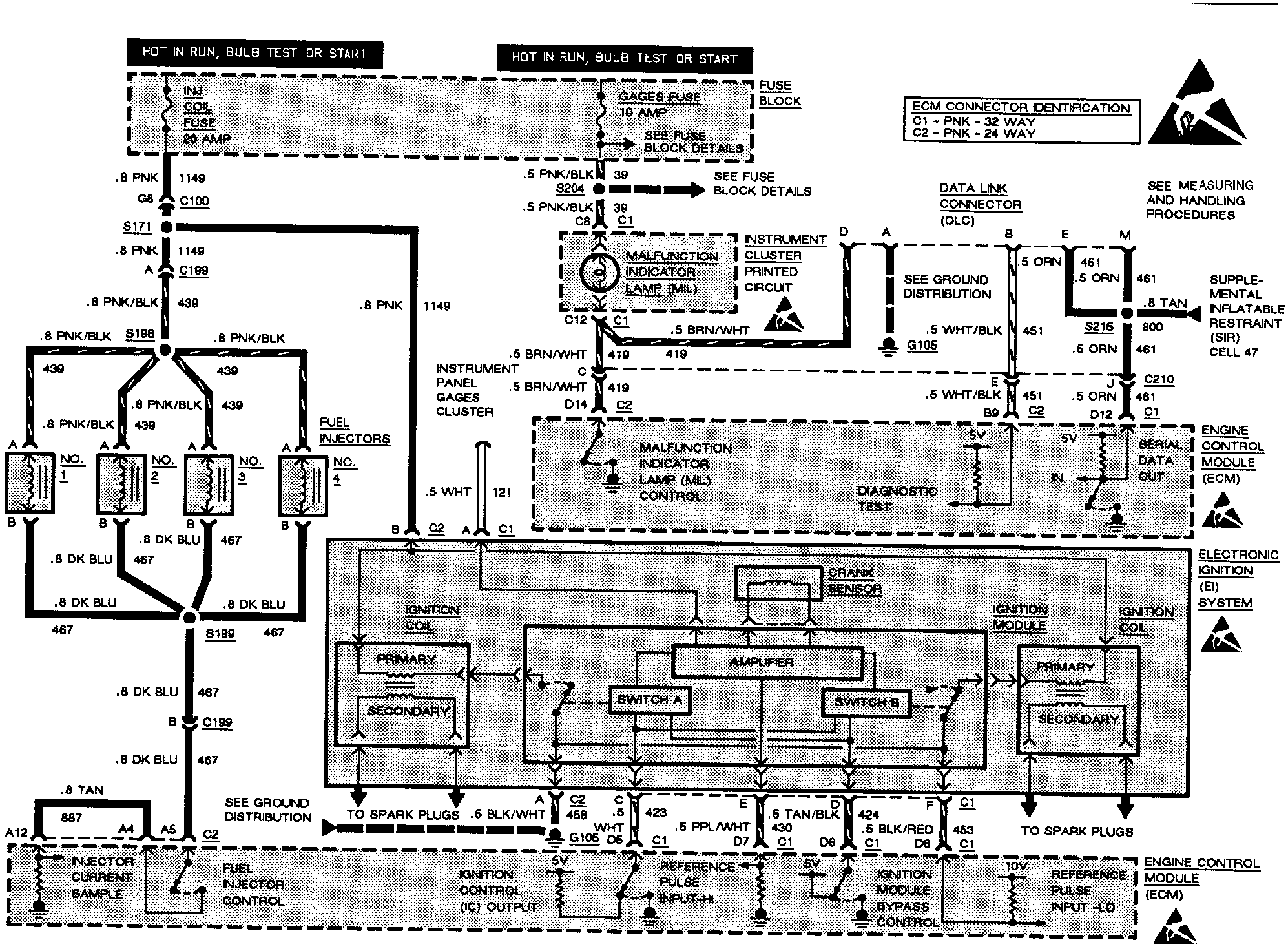

Fuel Injection, Ignition, & Malfunction Indicator Lamp (MIL)

Multiport Fuel Injection:
