Home >> Oldsmobile >> 1993 >> Cutlass Supreme FWD V6-204 3.4L DOHC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Window Switch

Power Window Switch

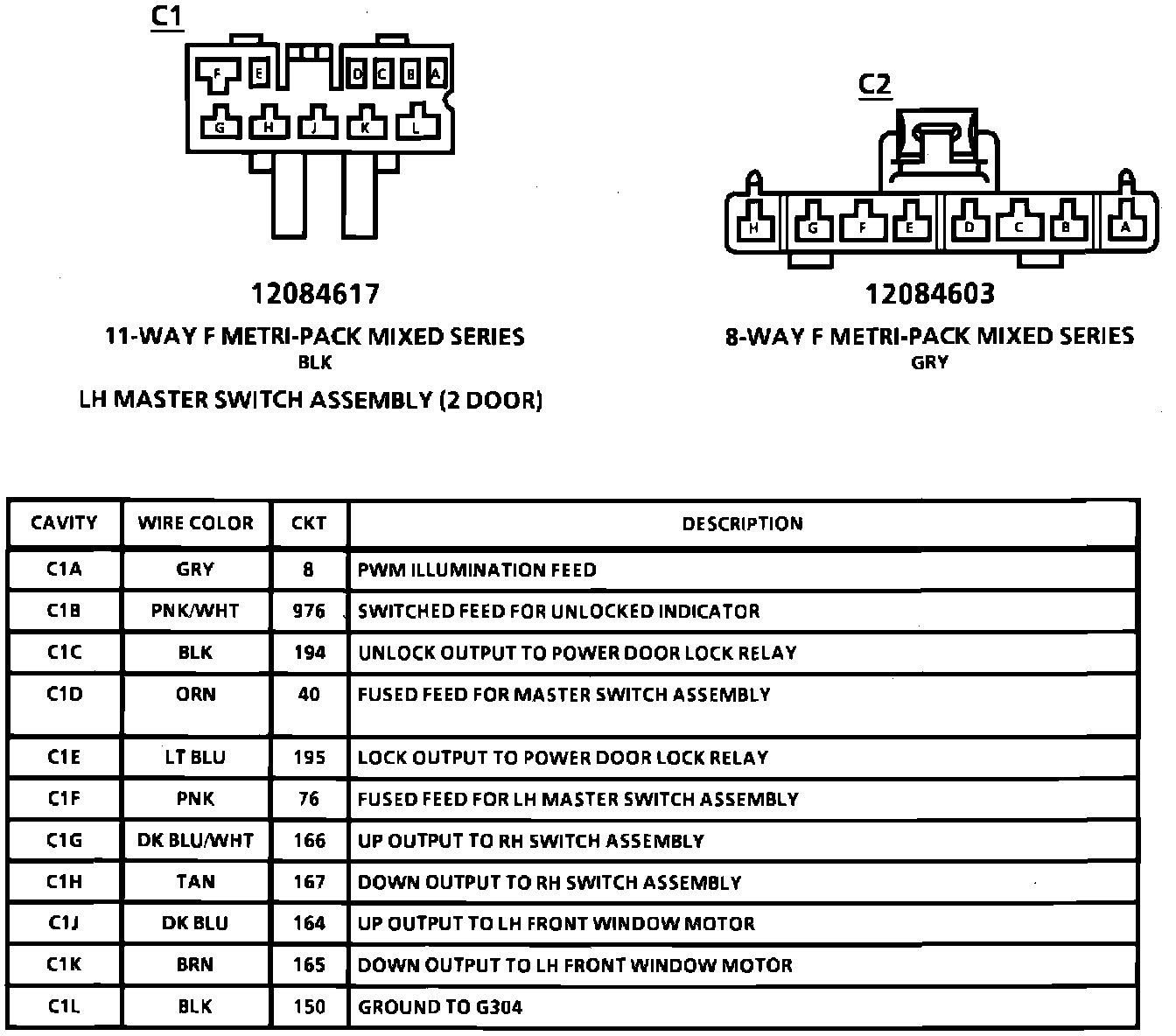

LH Master Switch Assembly Connector:

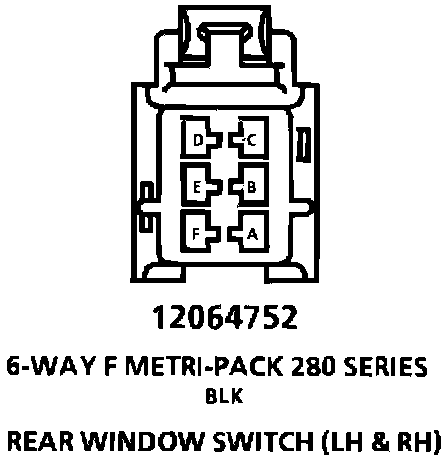

Rear Window Switch Connector:
