Vapor Canister Purge Solenoid, Air Pump Relay & Shift Indicator

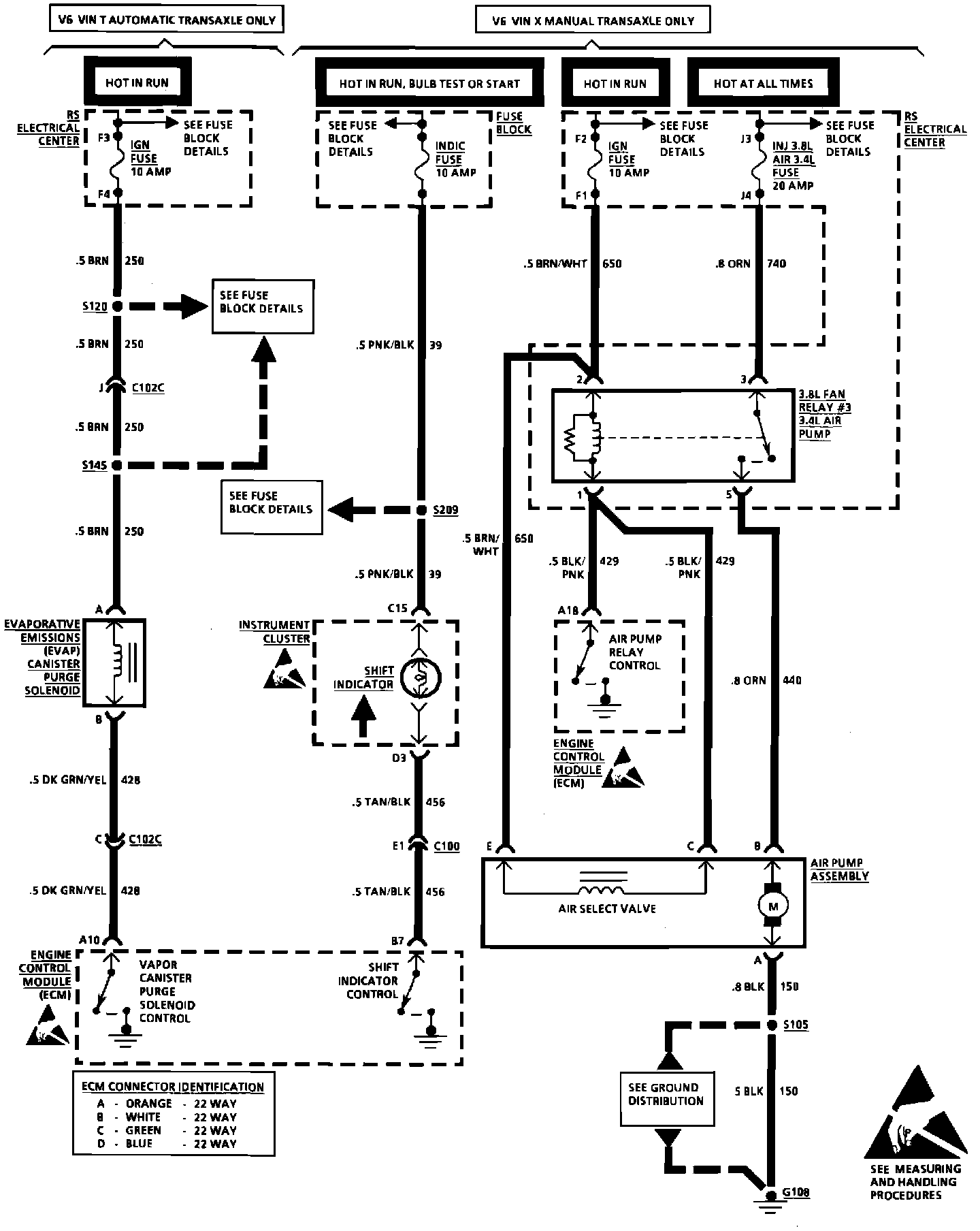

Vapor Canister Purge Solenoid, Air Pump Relay & Shift Indicator
Wiring Diagram:
