Instrument Panel, Gauges and Warning Indicators
>>
Temperature Sensor (Gauge)
>>
Locations
Temperature Sensor (Gauge): Locations

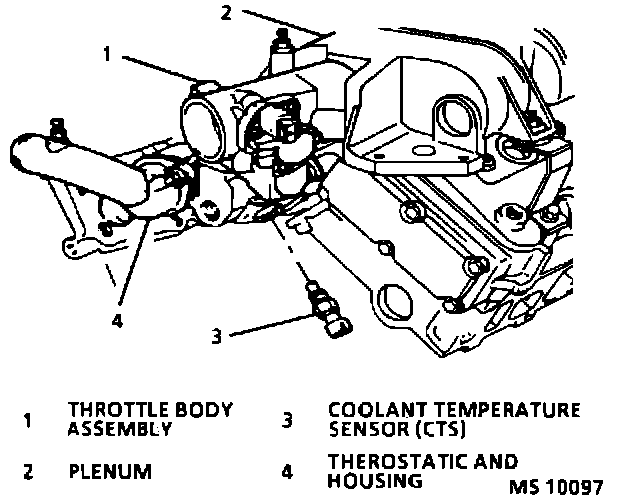

Coolant Temperature Sensor Location:
Installed in the water jacket below the throttle body.
