Blower Motor Resistor: Service and Repair

A/C Module Connections:

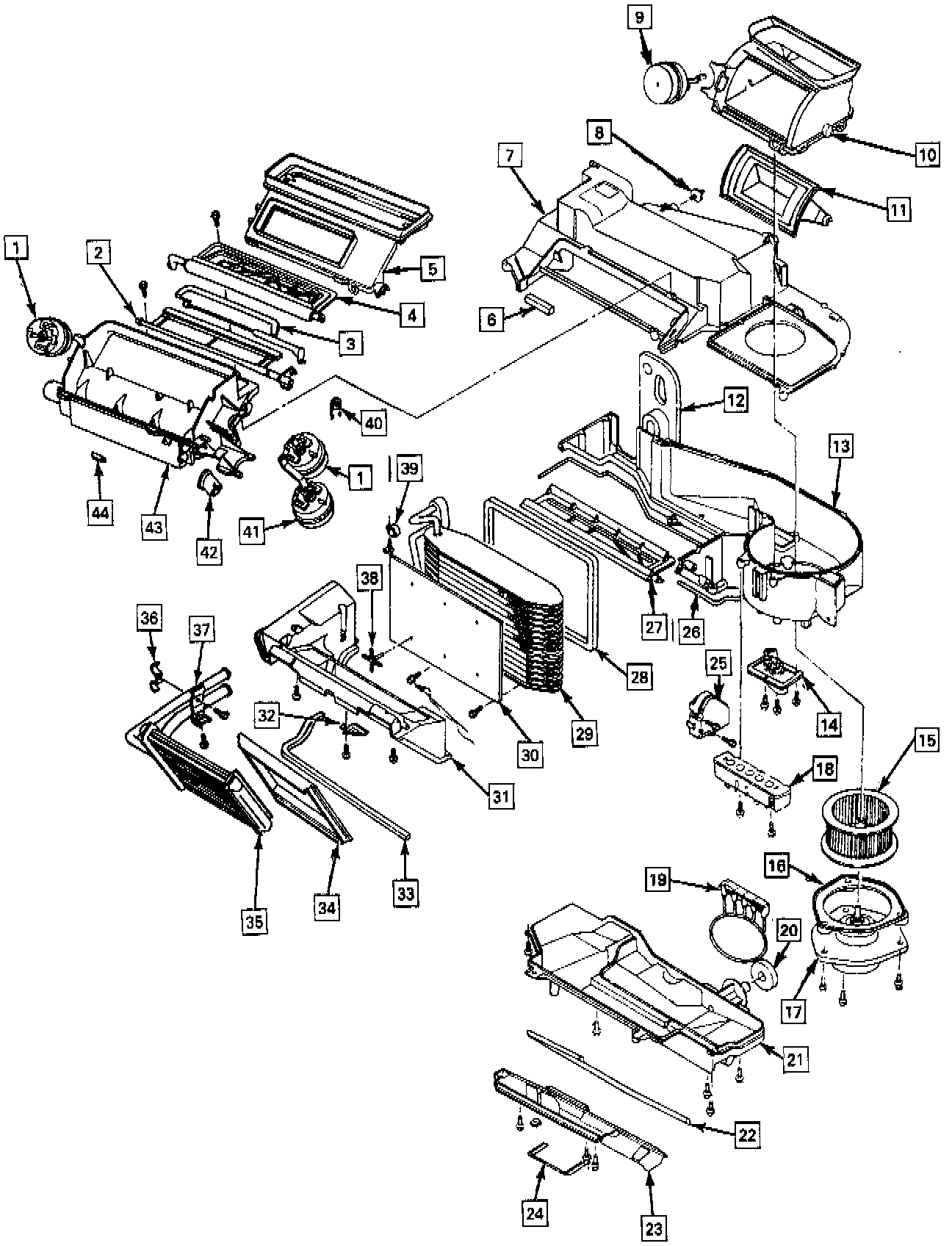

A/C Module Disassembly:

A/C Module Disassembly - Legend:

REMOVE OR DISCONNECT
1. R.H. lower I.P. insulator panel.
2. Connector from resistor.
3. Resistor attaching screws and remove resistor.

INSTALL OR CONNECT
1. Resistor and attaching screws.
2. Connector to resistor.
3. R.H. lower I.P. insulator panel.
