Home >> Oldsmobile >> 1993 >> Delta 88 V6-3800 3.8L >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Diagrams >> Electrical Diagrams >> Radio/Stereo >> Base

Base

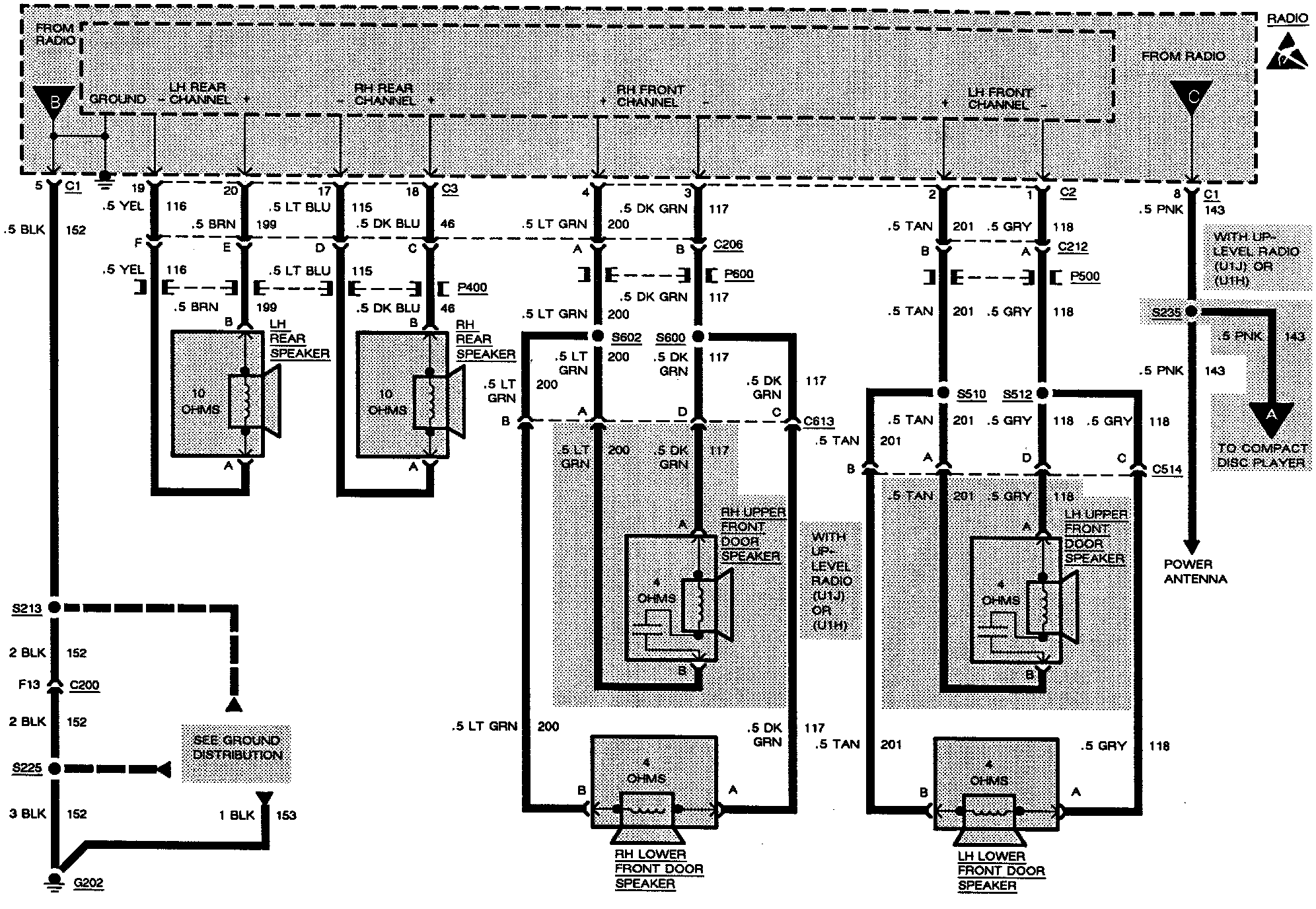

Radio:

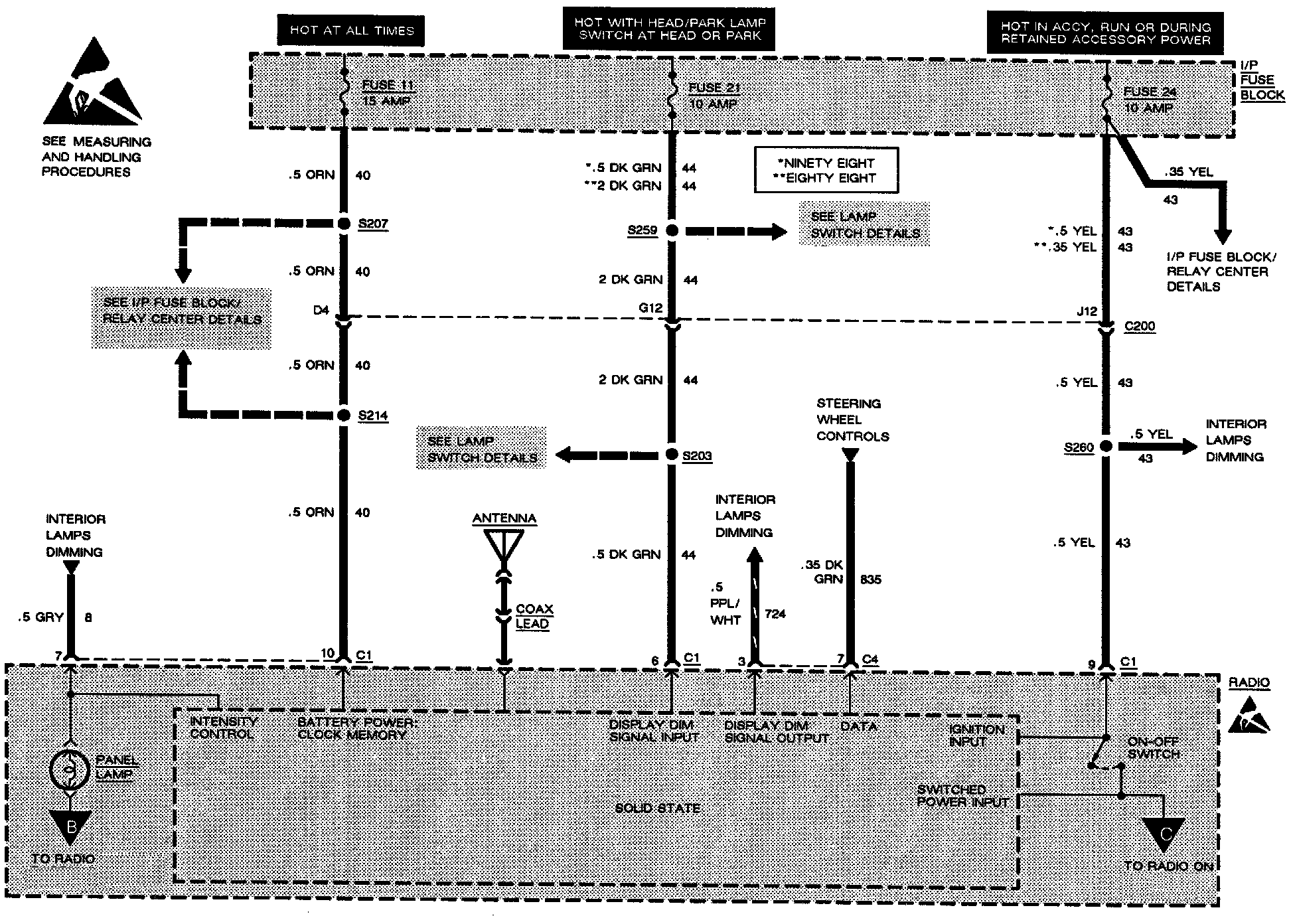

Radio:
