Home >> Oldsmobile >> 1993 >> Delta 88 V6-3800 3.8L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Accessory Delay Module

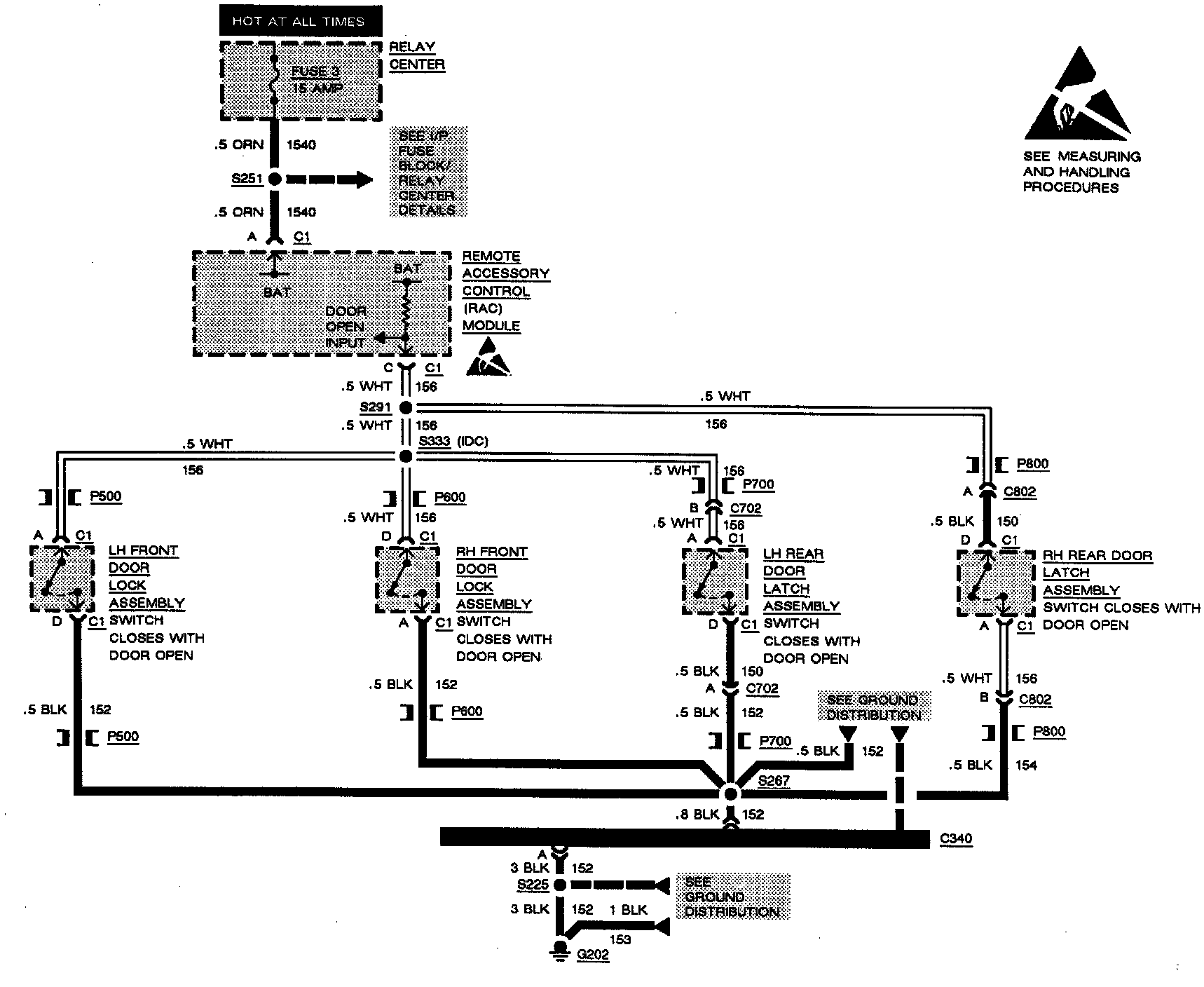

Accessory Delay Module

Retained Accessory Power (T2T):



Retained Accessory Power (T2T):
