Digital Cluster (U2A)

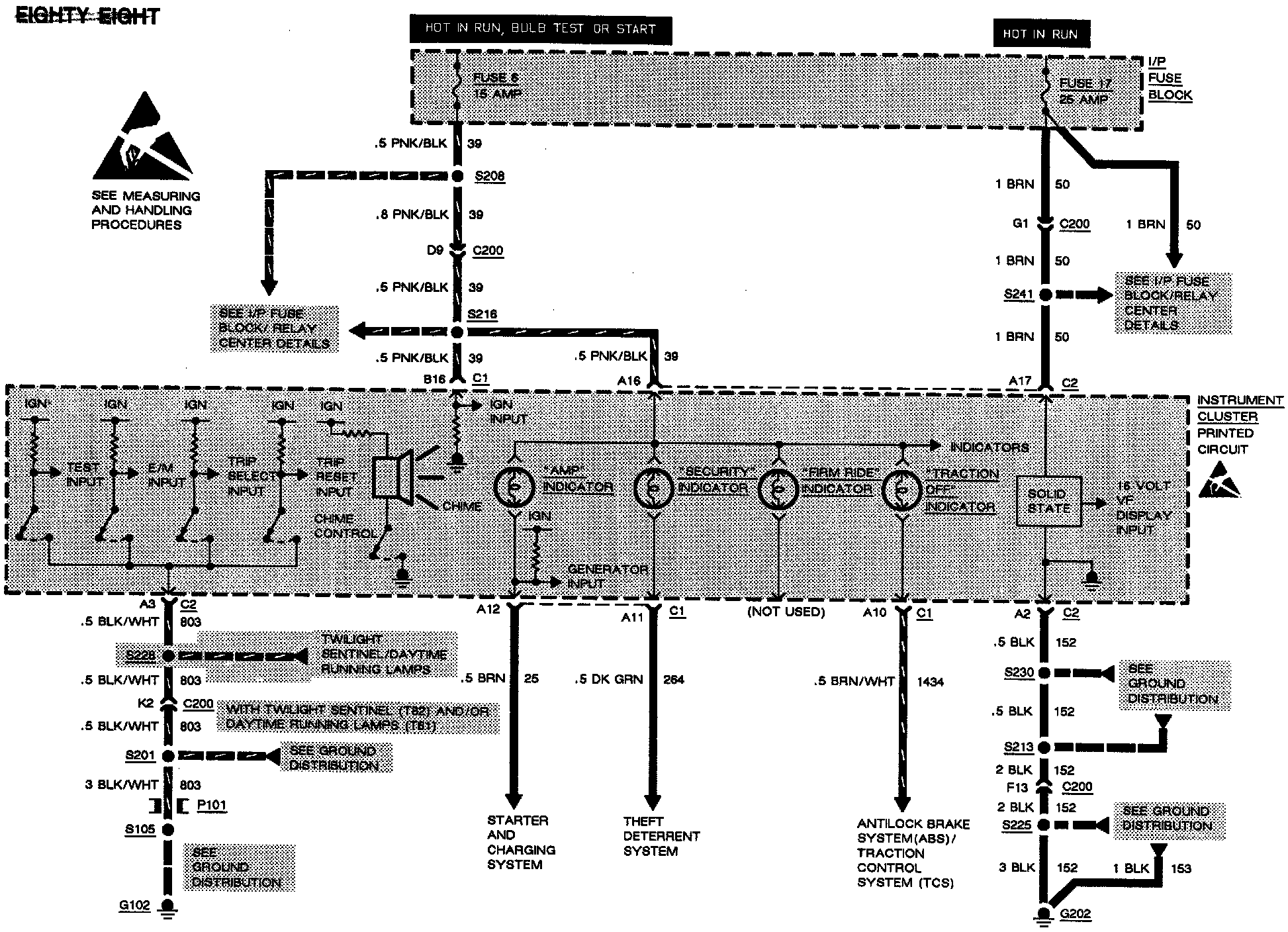

Indicators:

Fuel Level, Coolant Temperature & Speedometer:

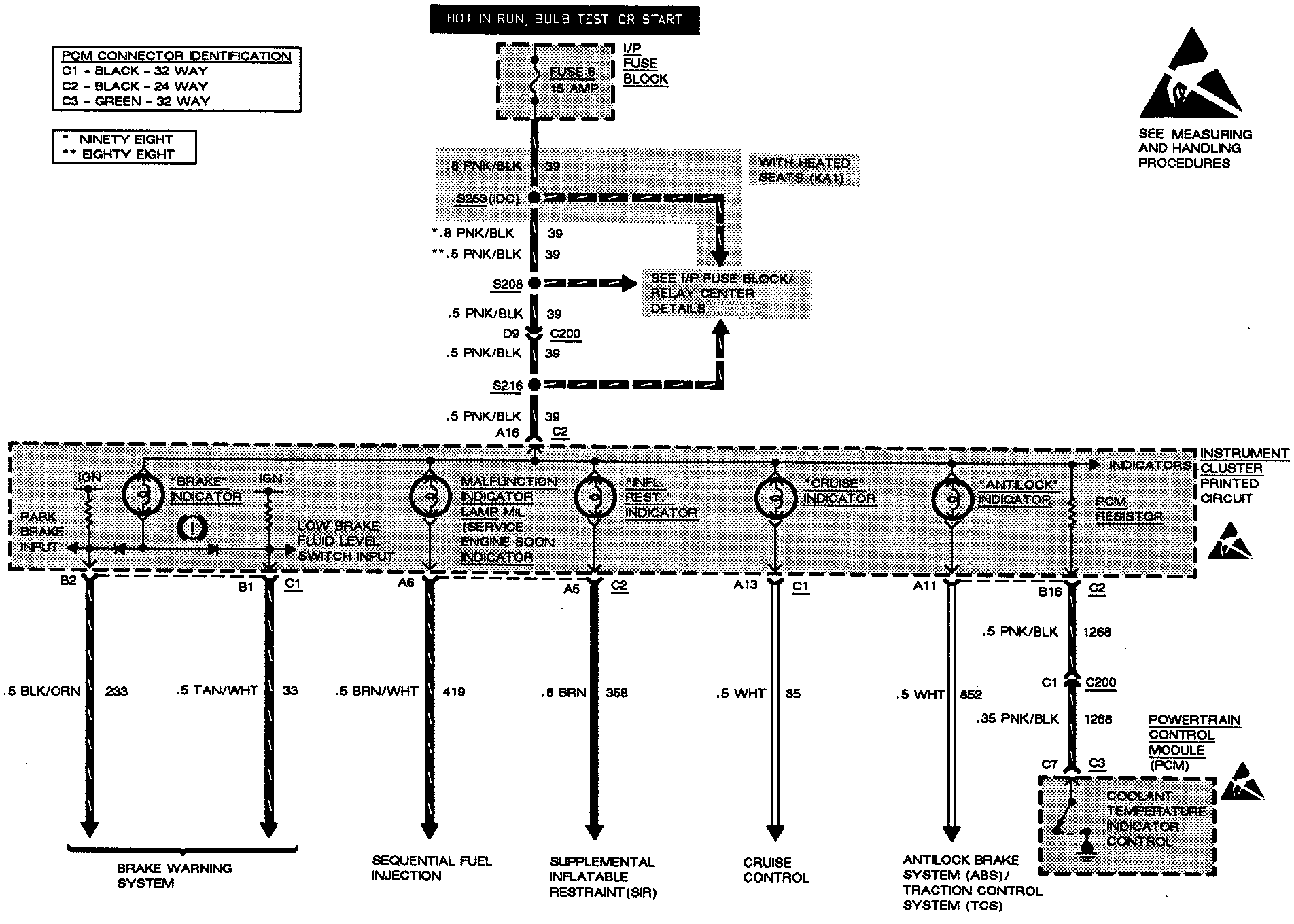

Indicators And Illumination Lamps:

Panel Switches & Indicators:
