Gages Cluster (UB7)

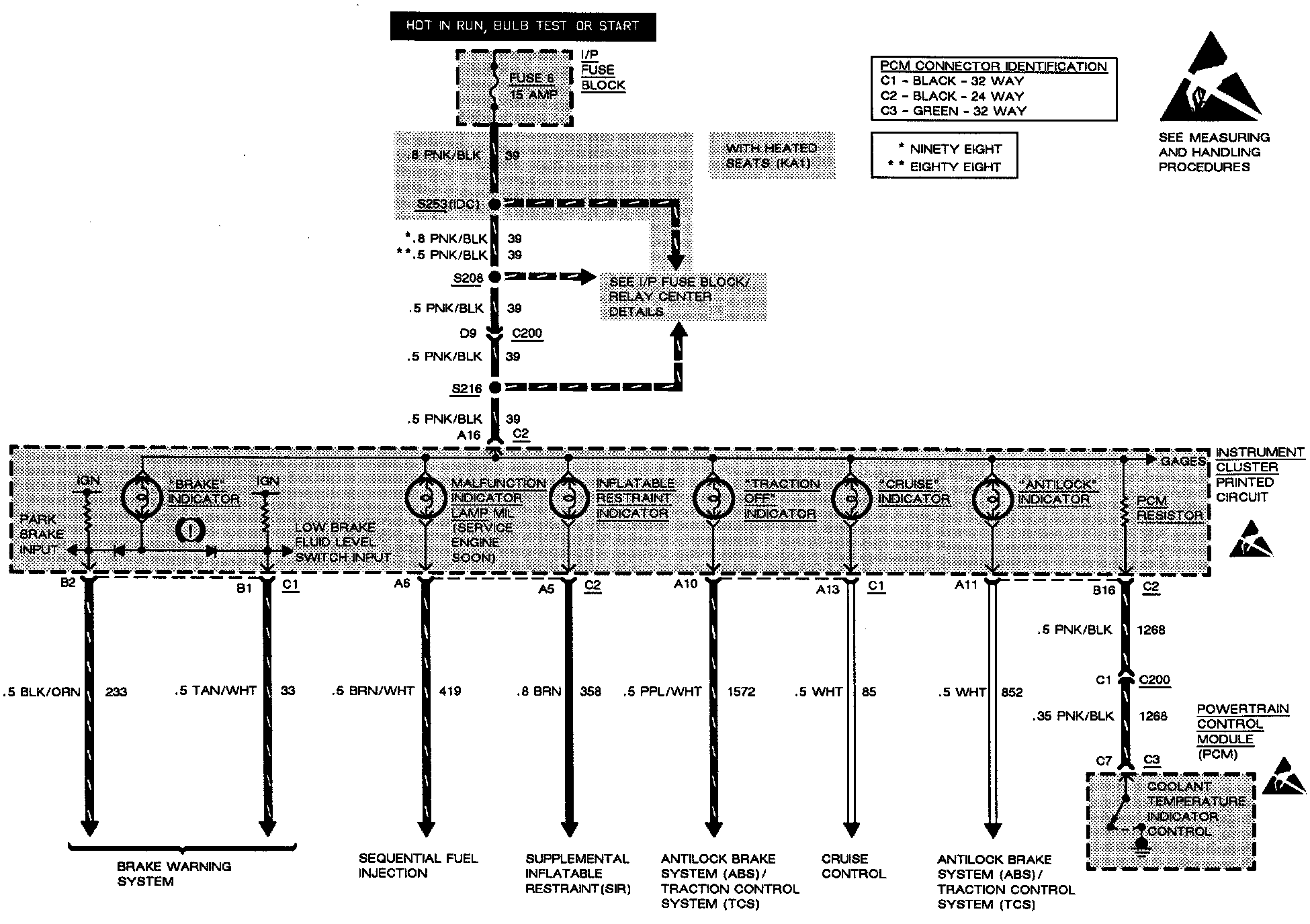

Indicators:

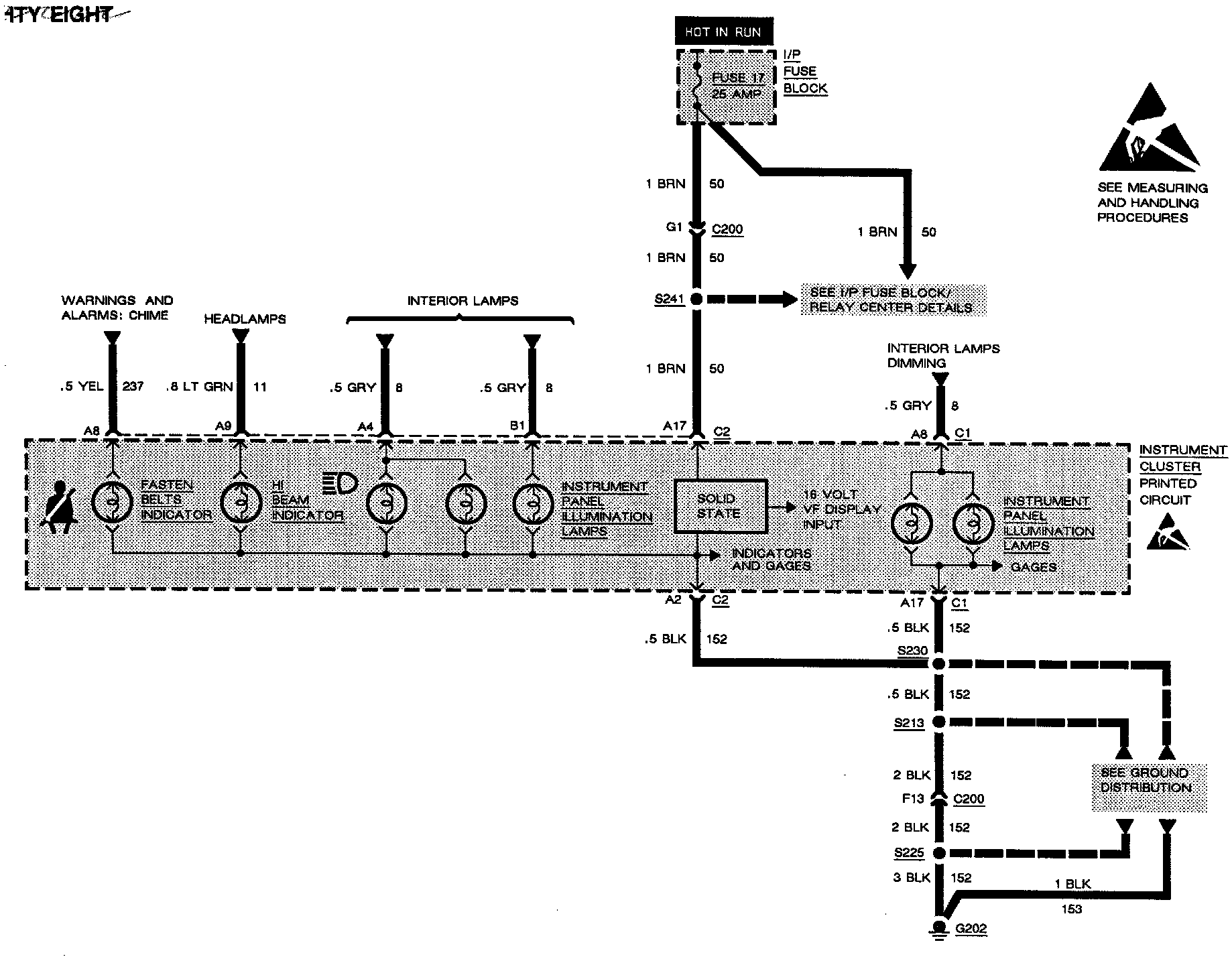

Indicators & Illumination Lamps:



Gages & Turn Indicators:

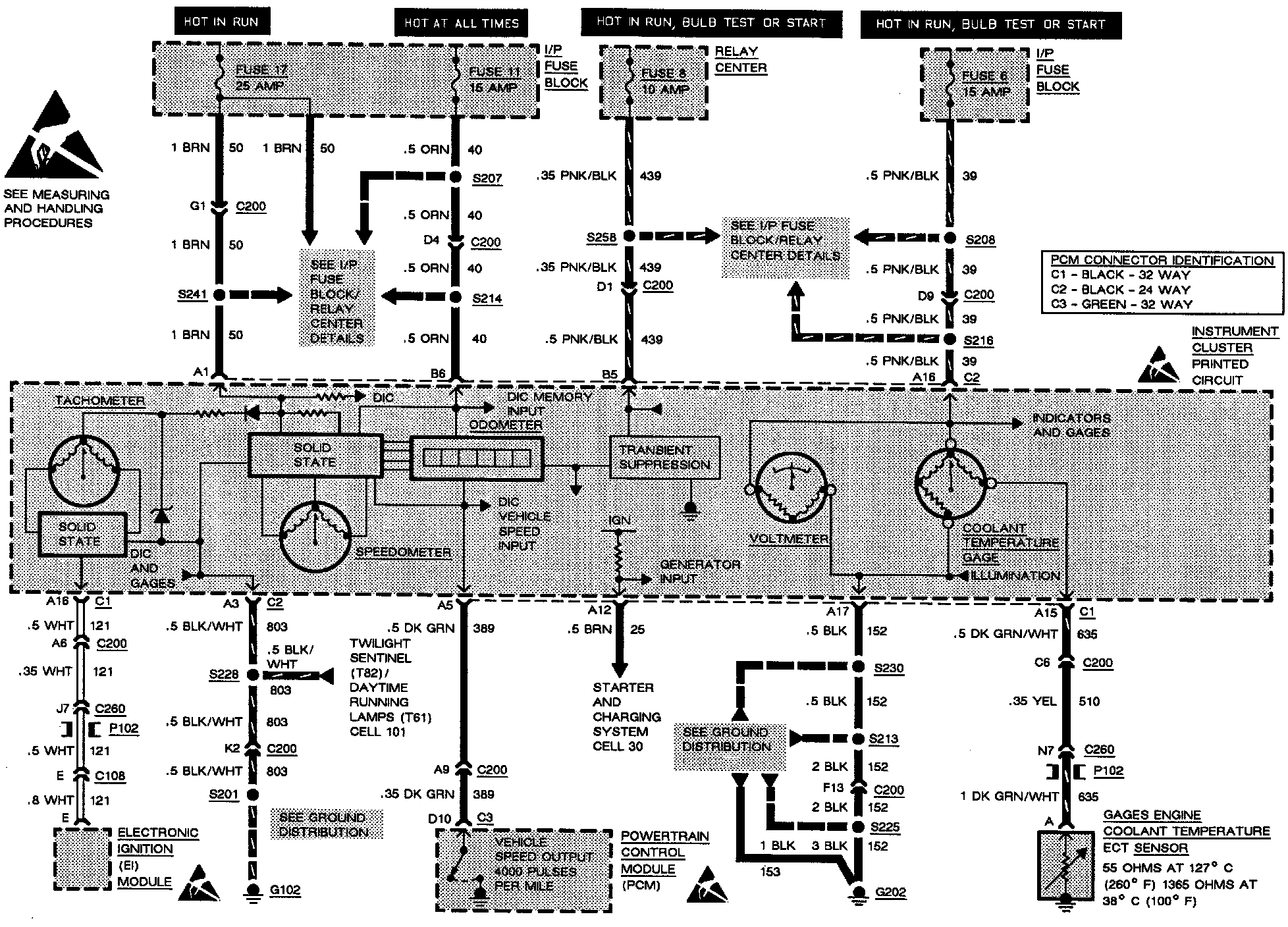

Gages:



Panel Switches & Chimes:
