Operation CHARM
: Car repair manuals for everyone.
Home
>>
Oldsmobile
>>
1993
>>
Delta 88 V6-3800 3.8L
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
A Symptom Table - Gauge Cluster
A Symptom Table - Gauge Cluster

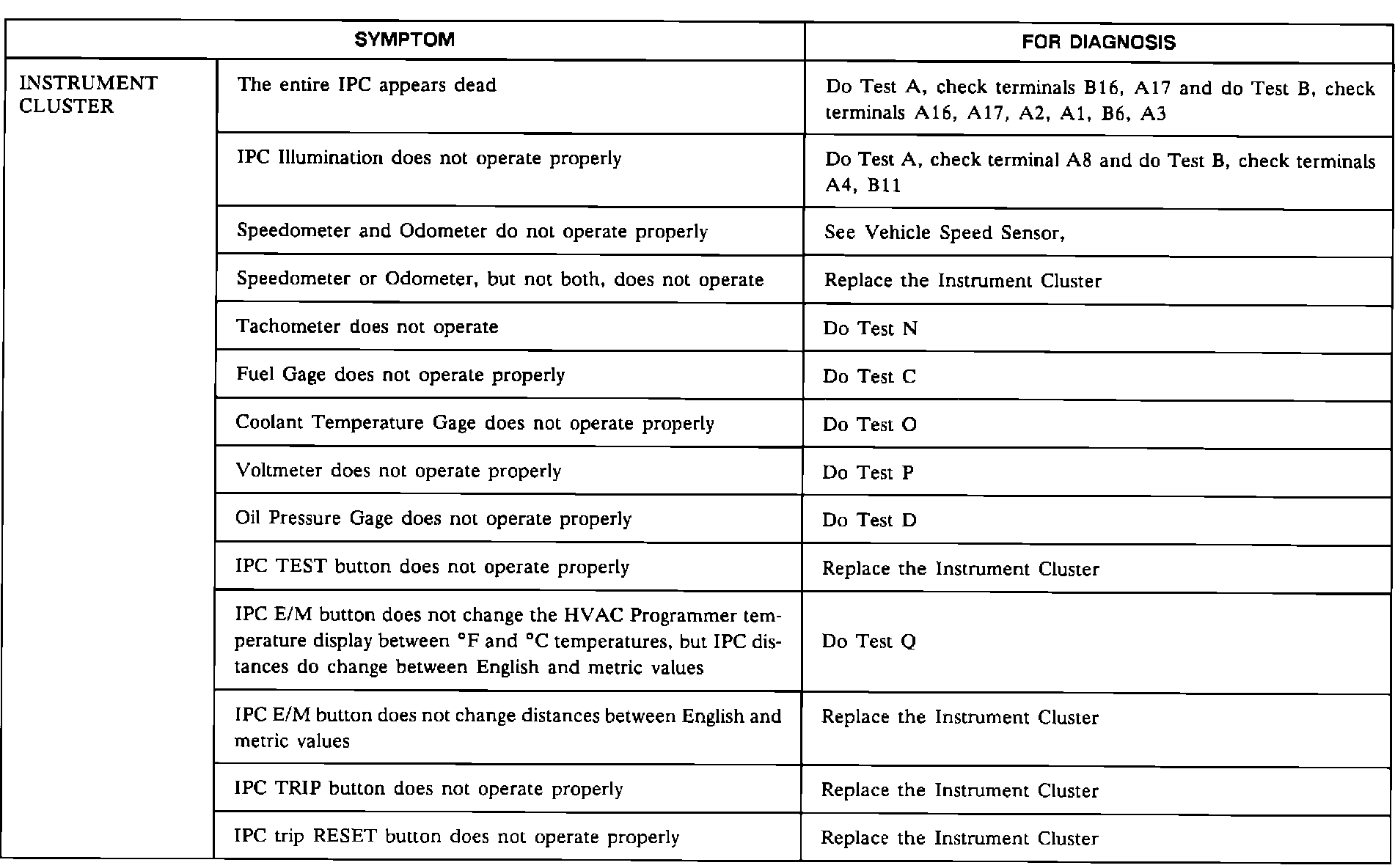

Symptom Diagnosis Chart (Part 1 Of 3):

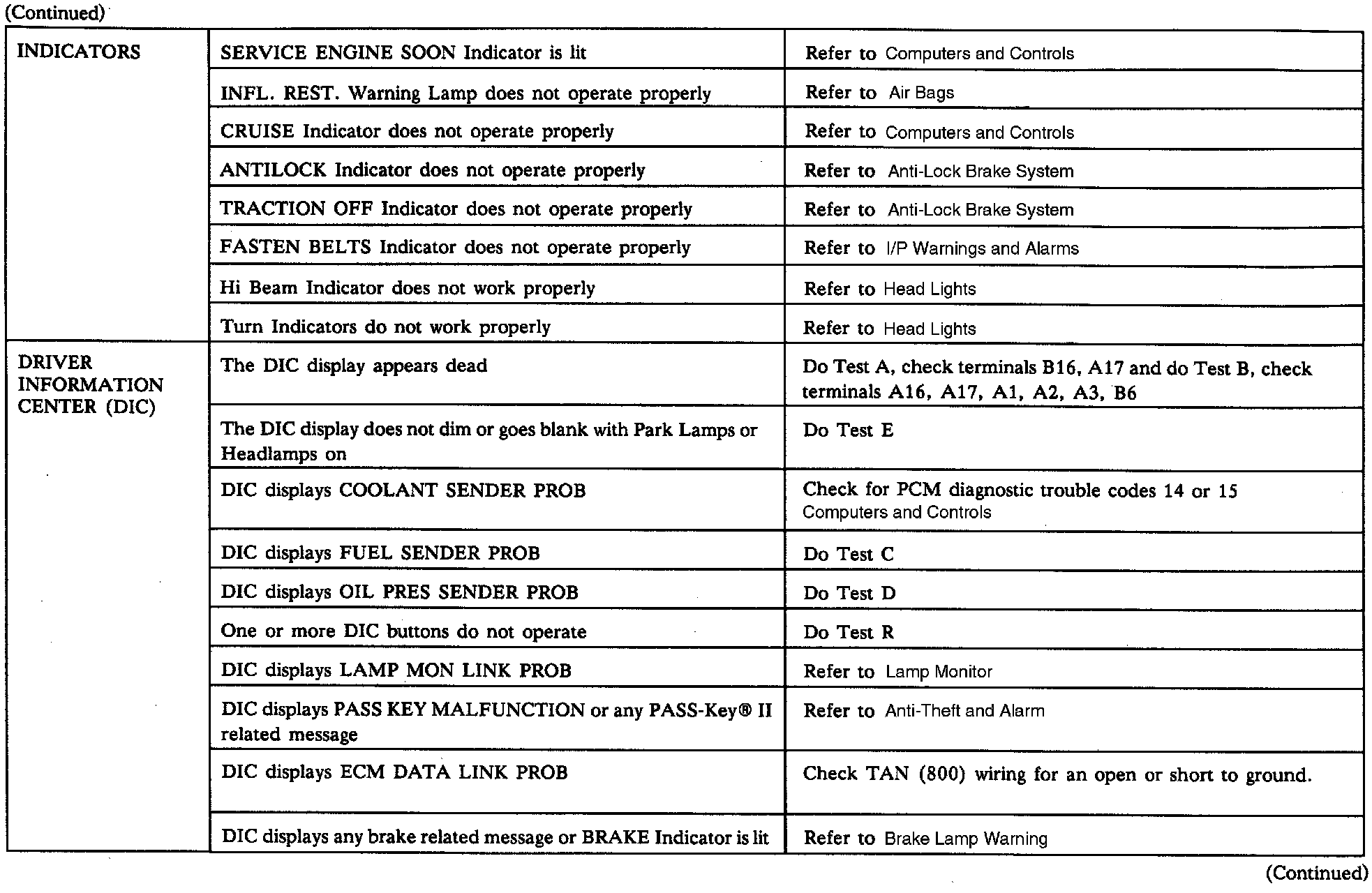

Symptom Table Cont.:

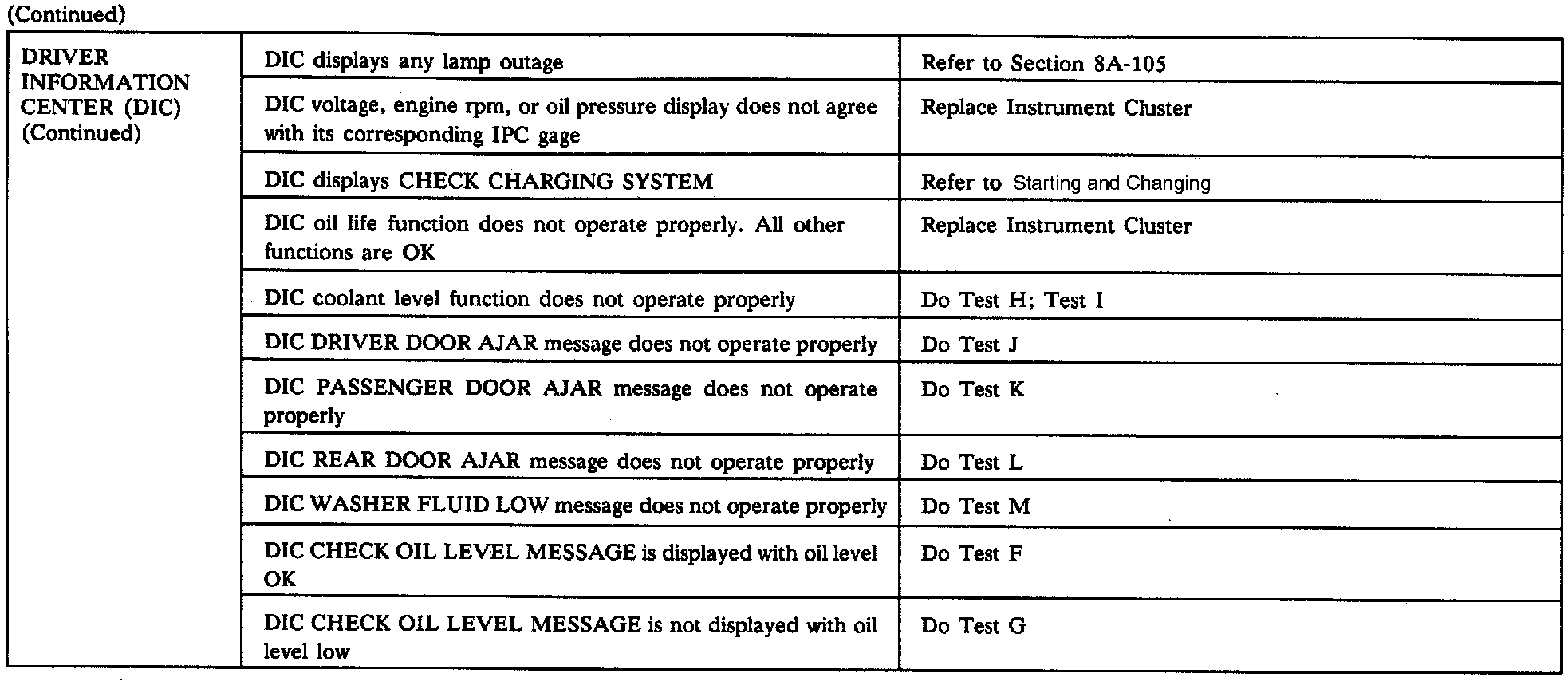

Symptom Table Cont.:
