Home >> Oldsmobile >> 1993 >> Ninety-Eight V6-3800 3.8L Supercharged >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Keyless Entry

Keyless Entry

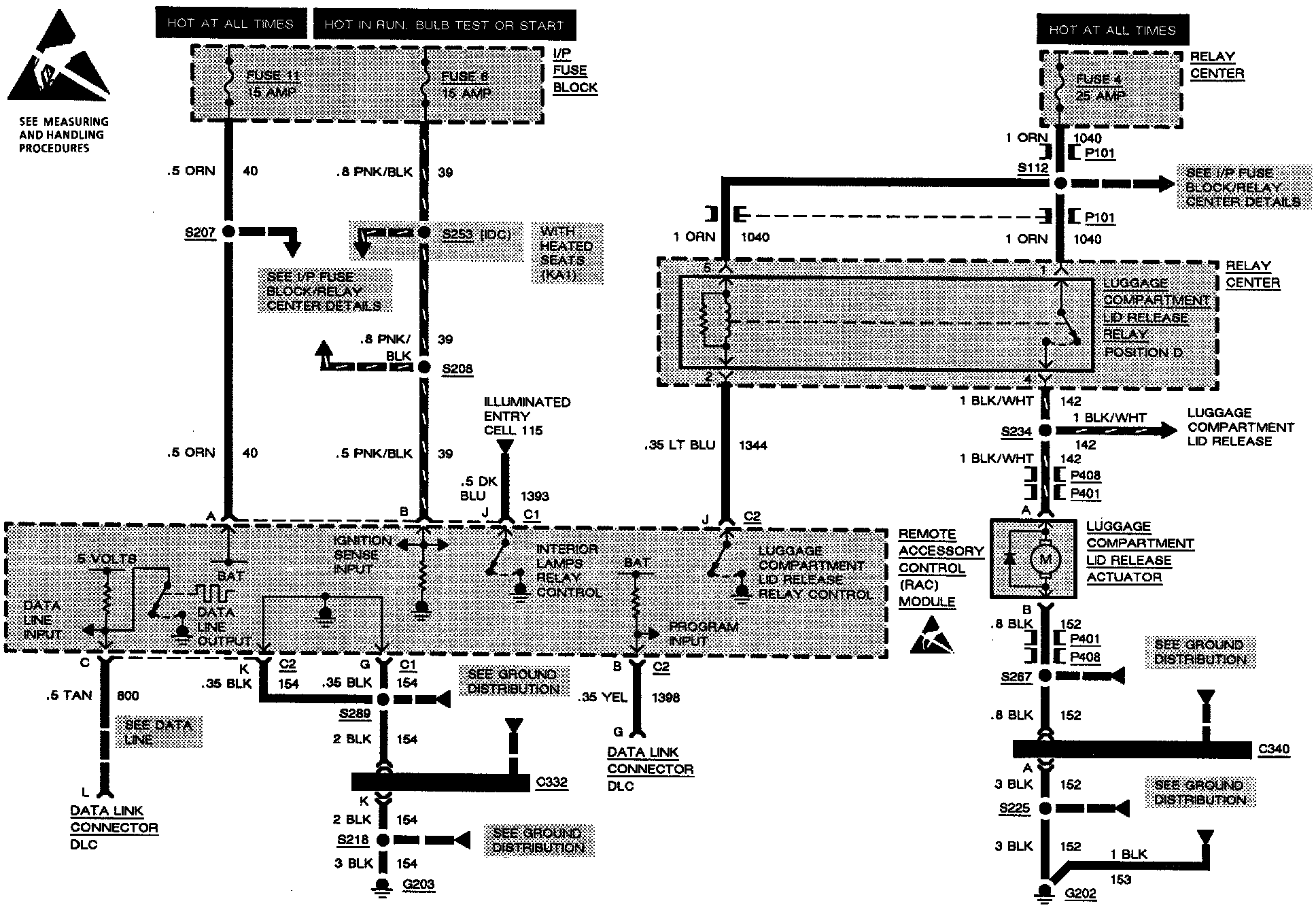

Remote Keyless Entry (T2T):

Remote Keyless Entry (T2T) Cont.:

Remote Keyless Entry (T2T):
