Home >> Oldsmobile >> 1993 >> Ninety-Eight V6-3800 3.8L Supercharged >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Seats >> Power Seat (AG2)

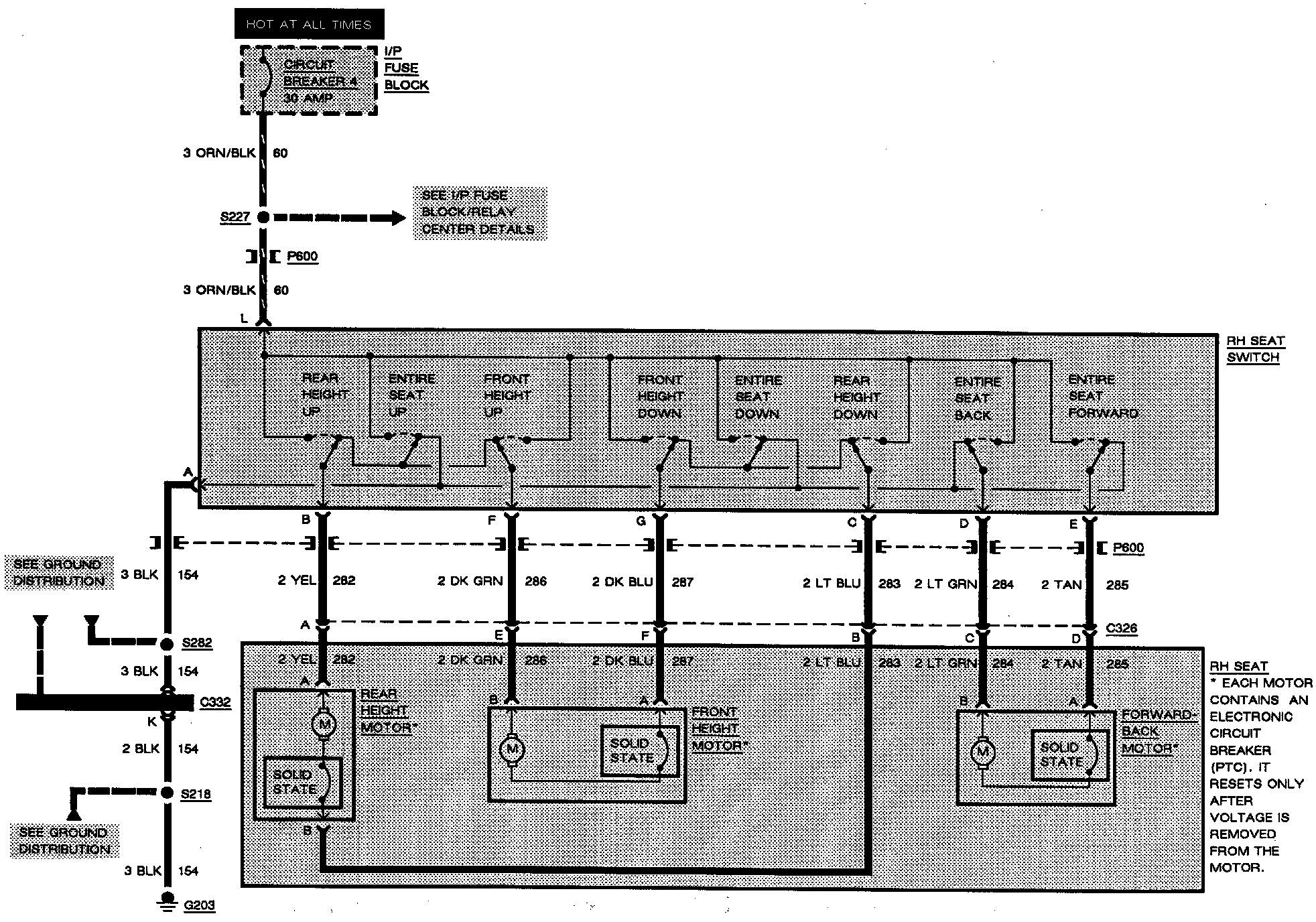

Power Seat (AG2)

Power Seats Cont.:
