Dual Zone Climate Controls

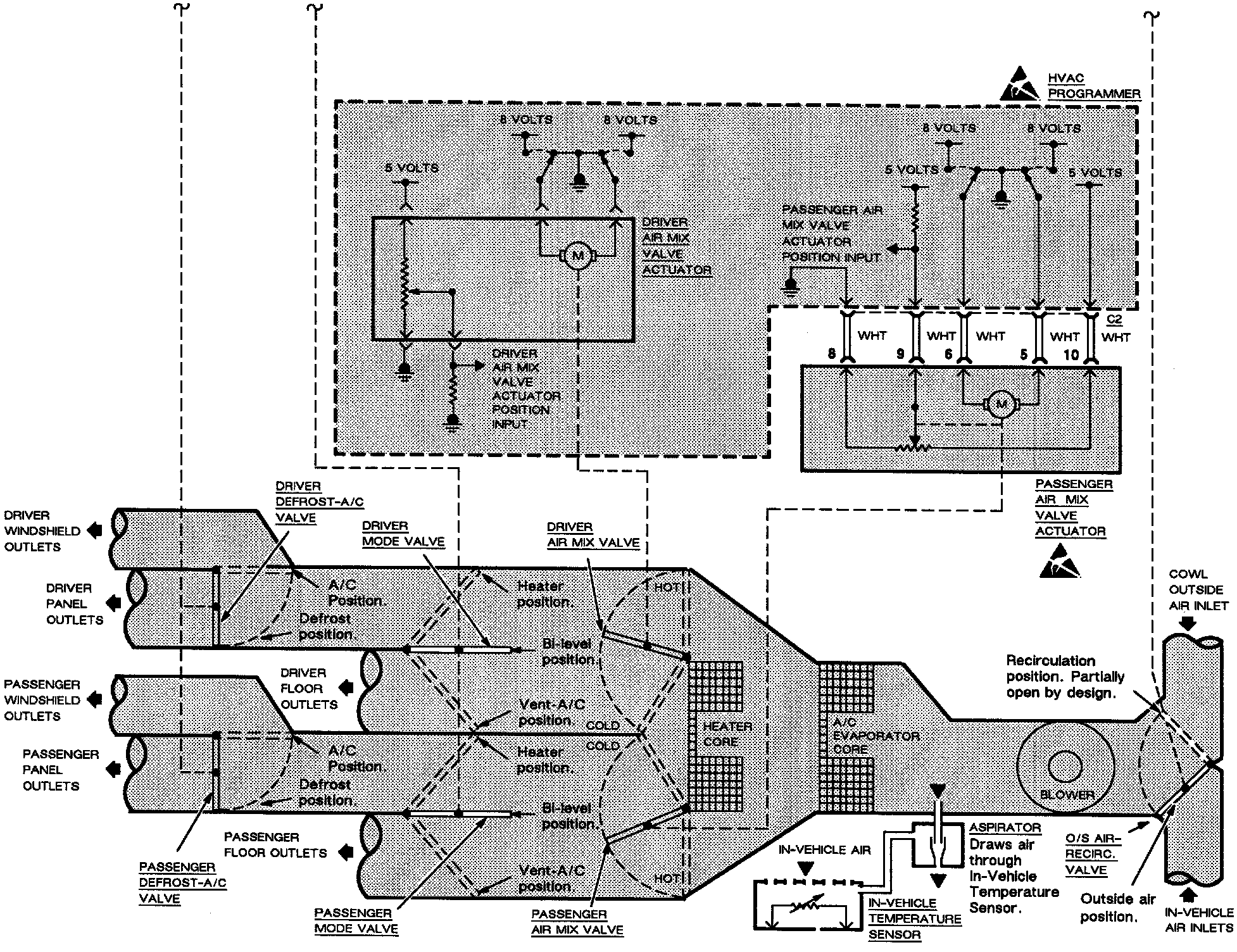

Air Delivery & Temperature Controls Cont.:

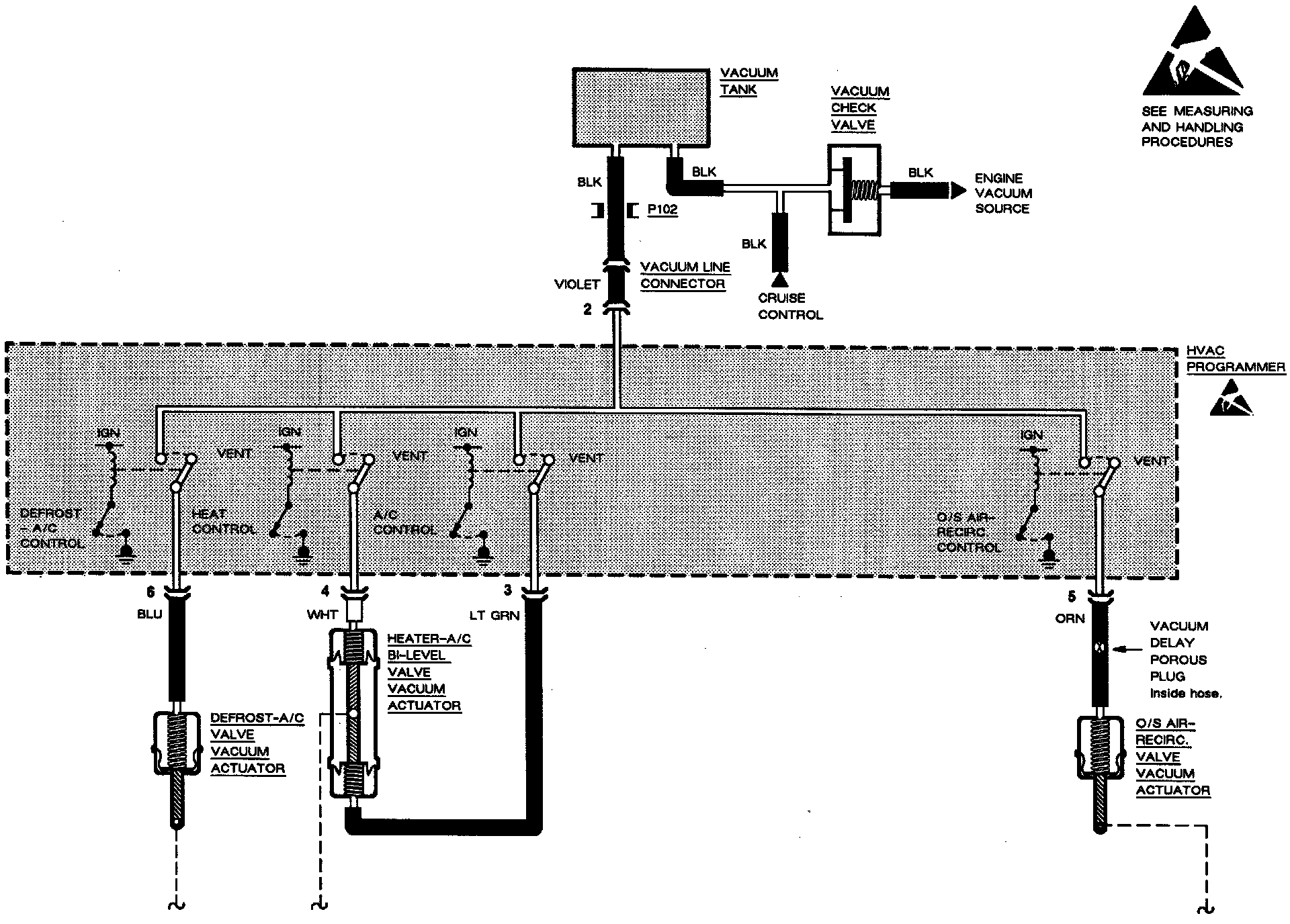

Air Delivery & Temperature Controls Cont.:
