Operation CHARM: Car repair manuals for everyone.

Digital Cluster (U2A)

Indicators:

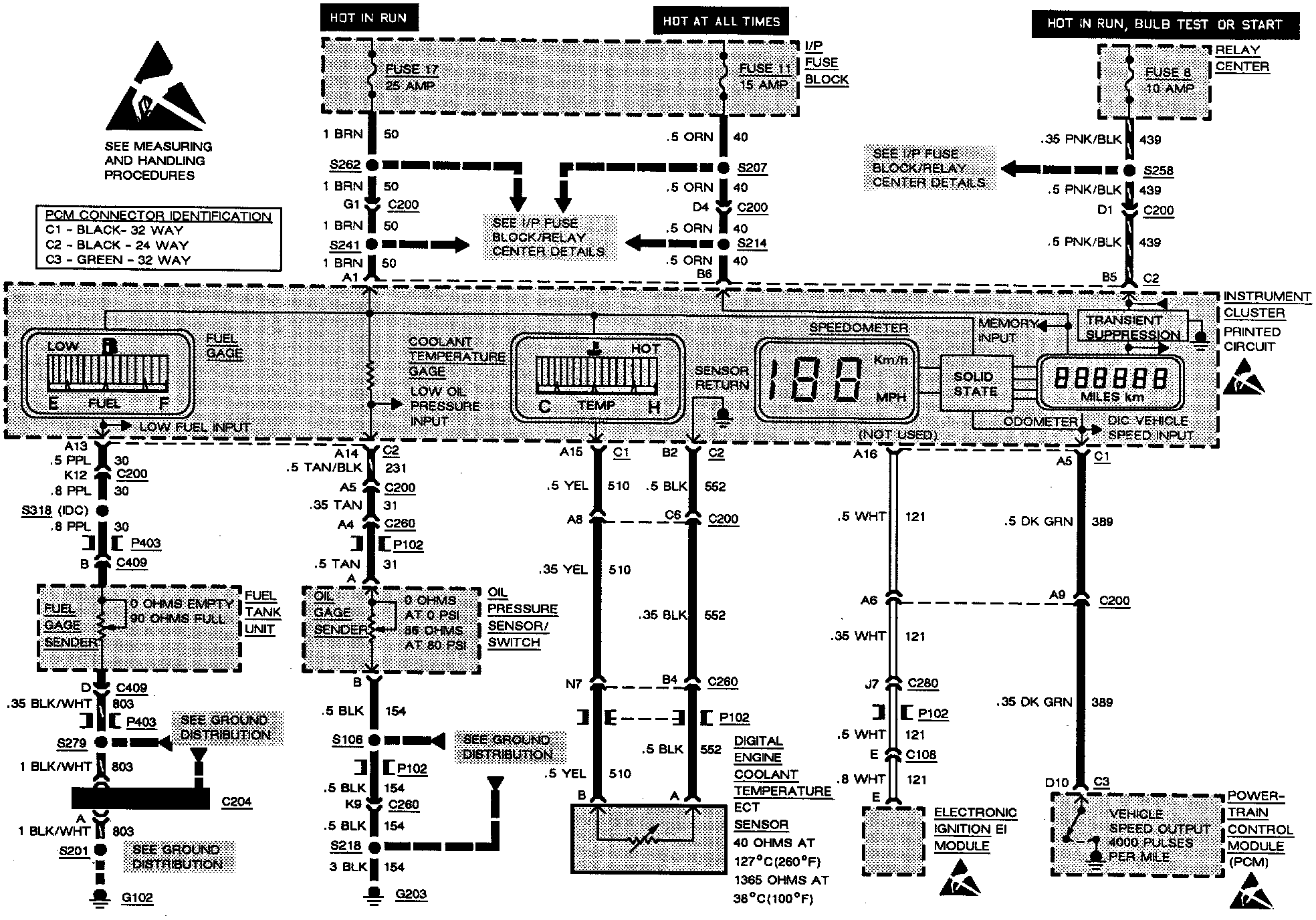

Fuel Level, Coolant Temperature & Speedometer:

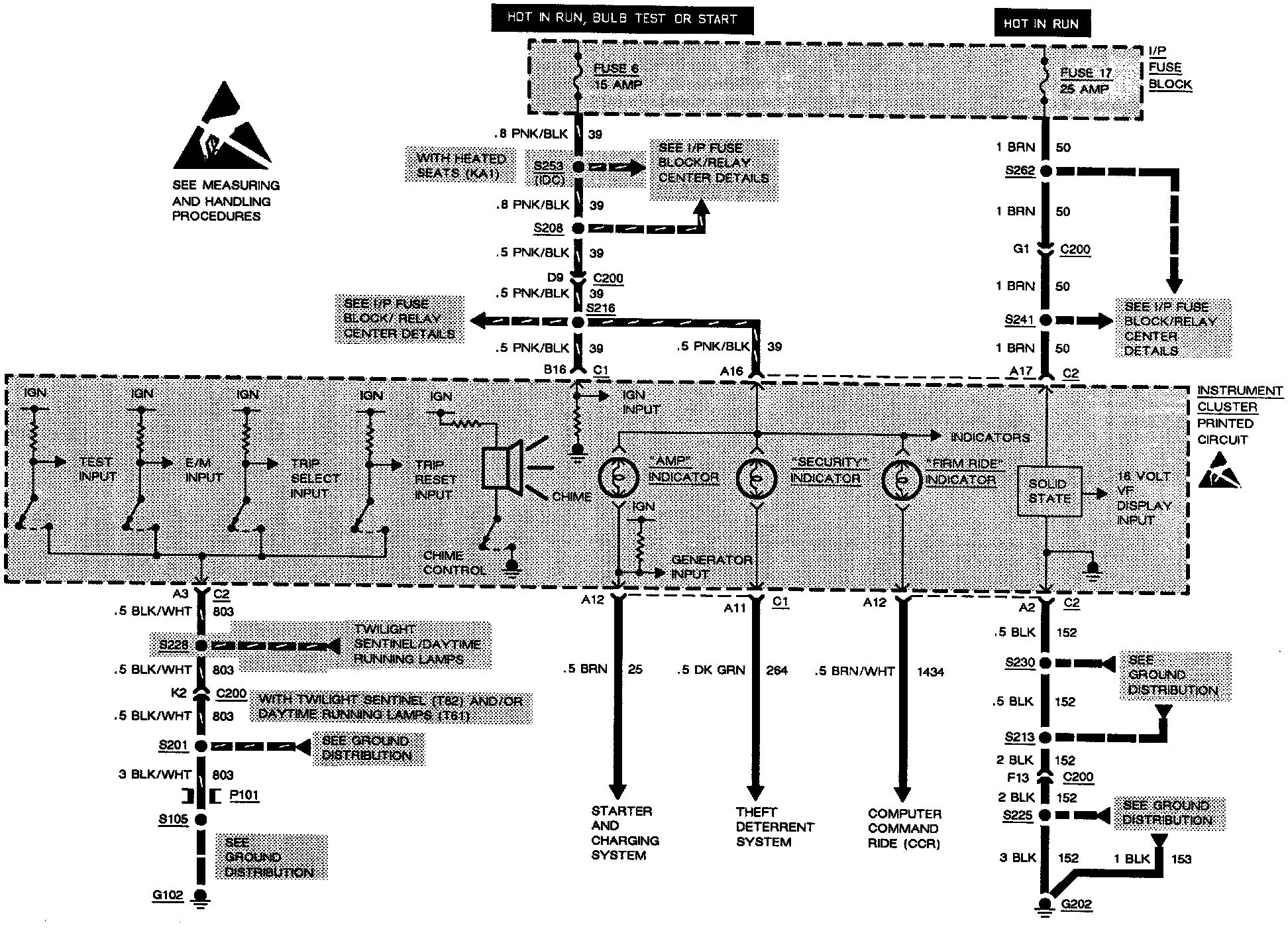

Panel Switches & Indicators:



Indicators And Illumination Lamps:
