Home >> Oldsmobile >> 1994 >> Achieva L4-138 2.3L DOHC VIN D MFI >> Repair and Diagnosis >> Diagrams >> Connectors >> Connectors By Component >> Park Neutral Position Switch Connector

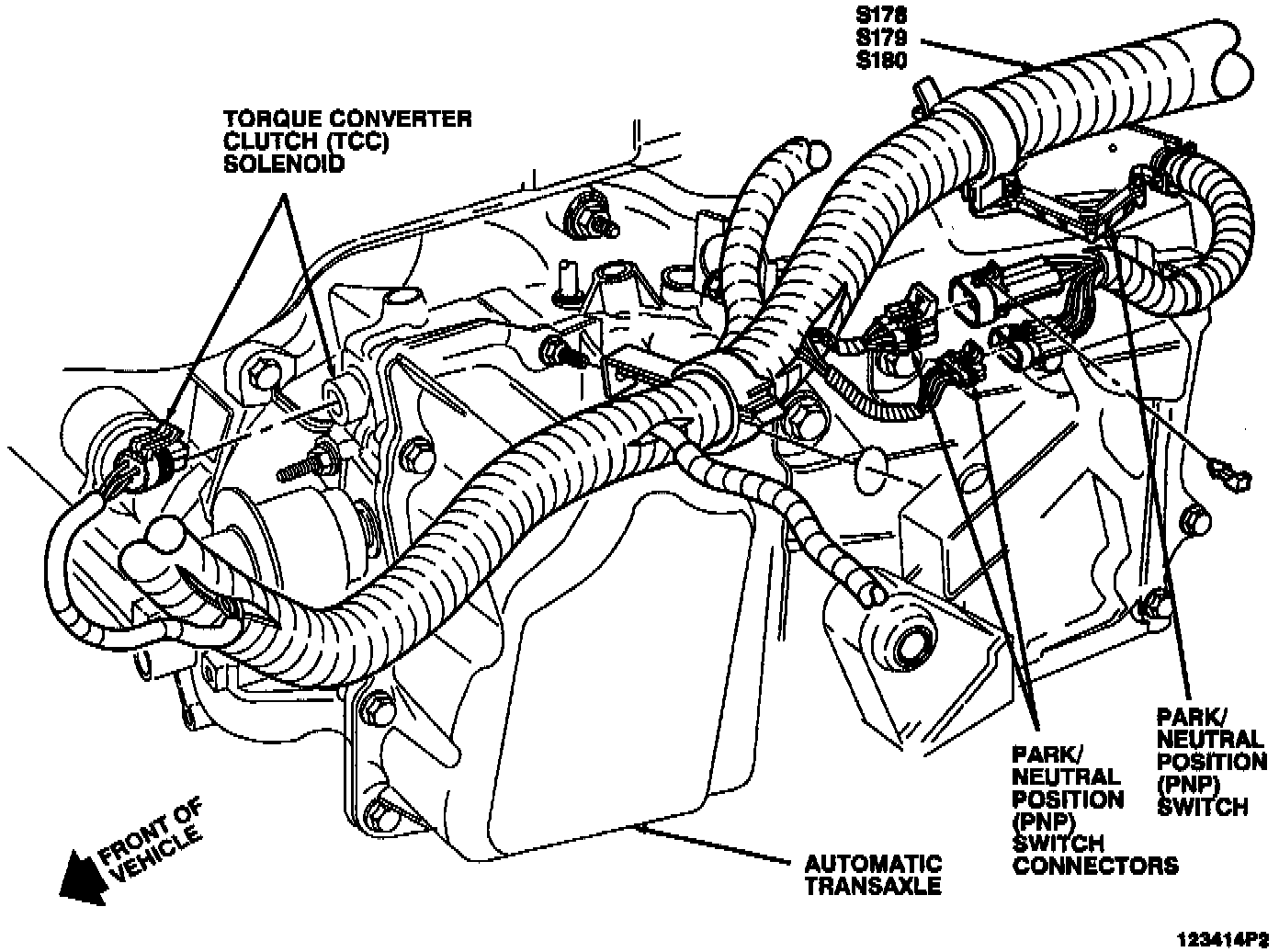

Park Neutral Position Switch Connector

LH Side Engine Compartment:
