Pinout Values and Diagnostic Parameters

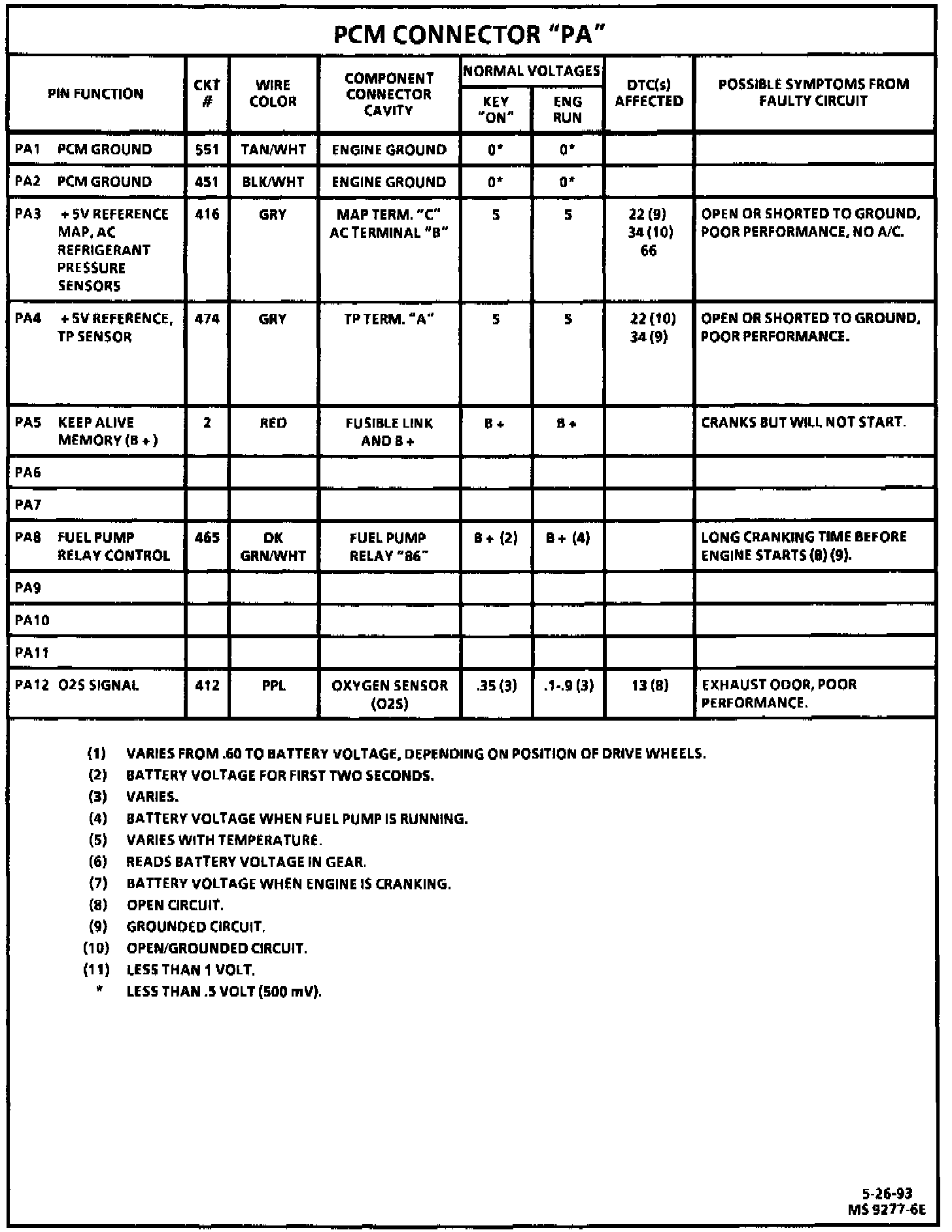

PCM Connector/Symptom Reference Chart (1 Of 6):

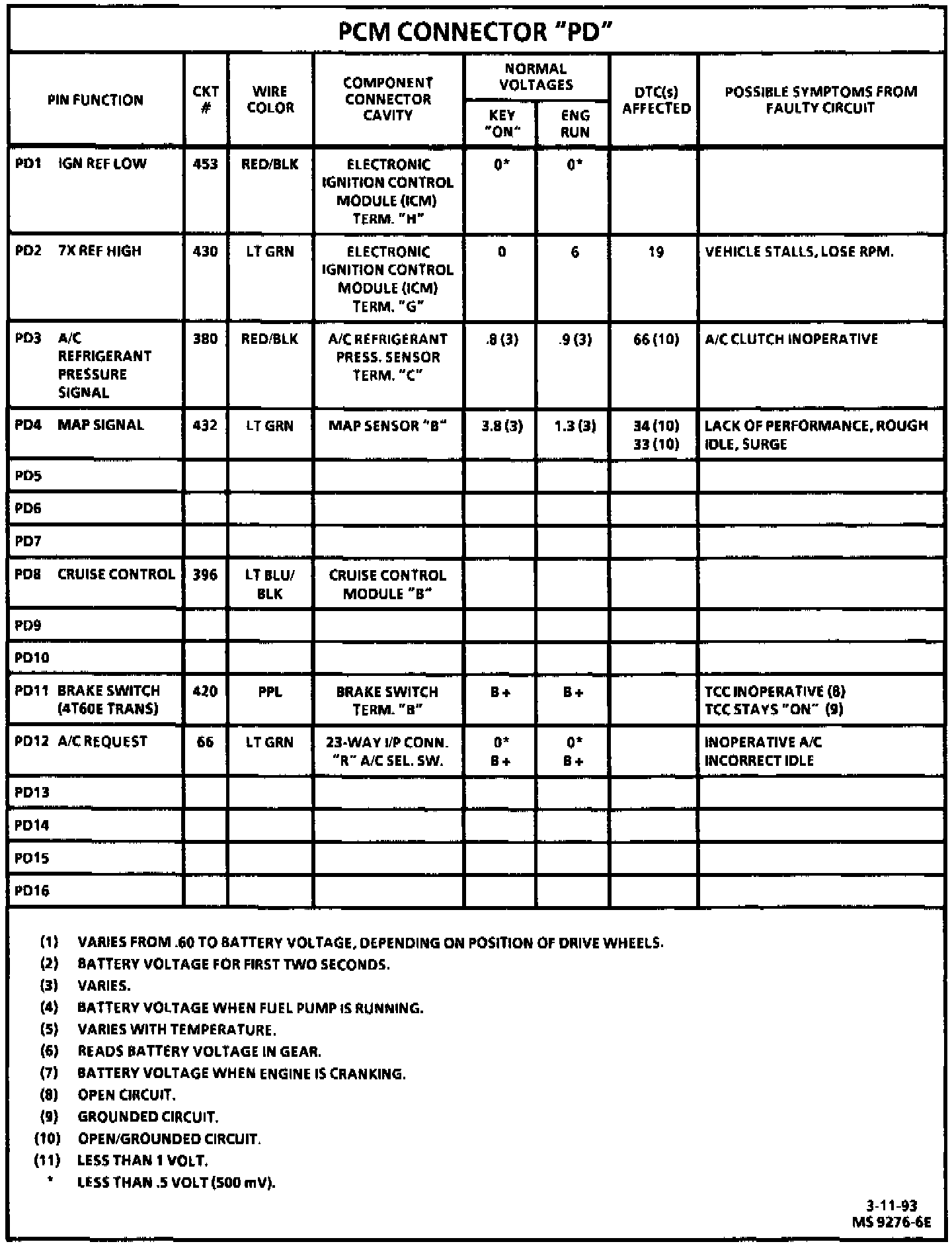

PCM Connector/Symptom Reference Chart (2 Of 6):

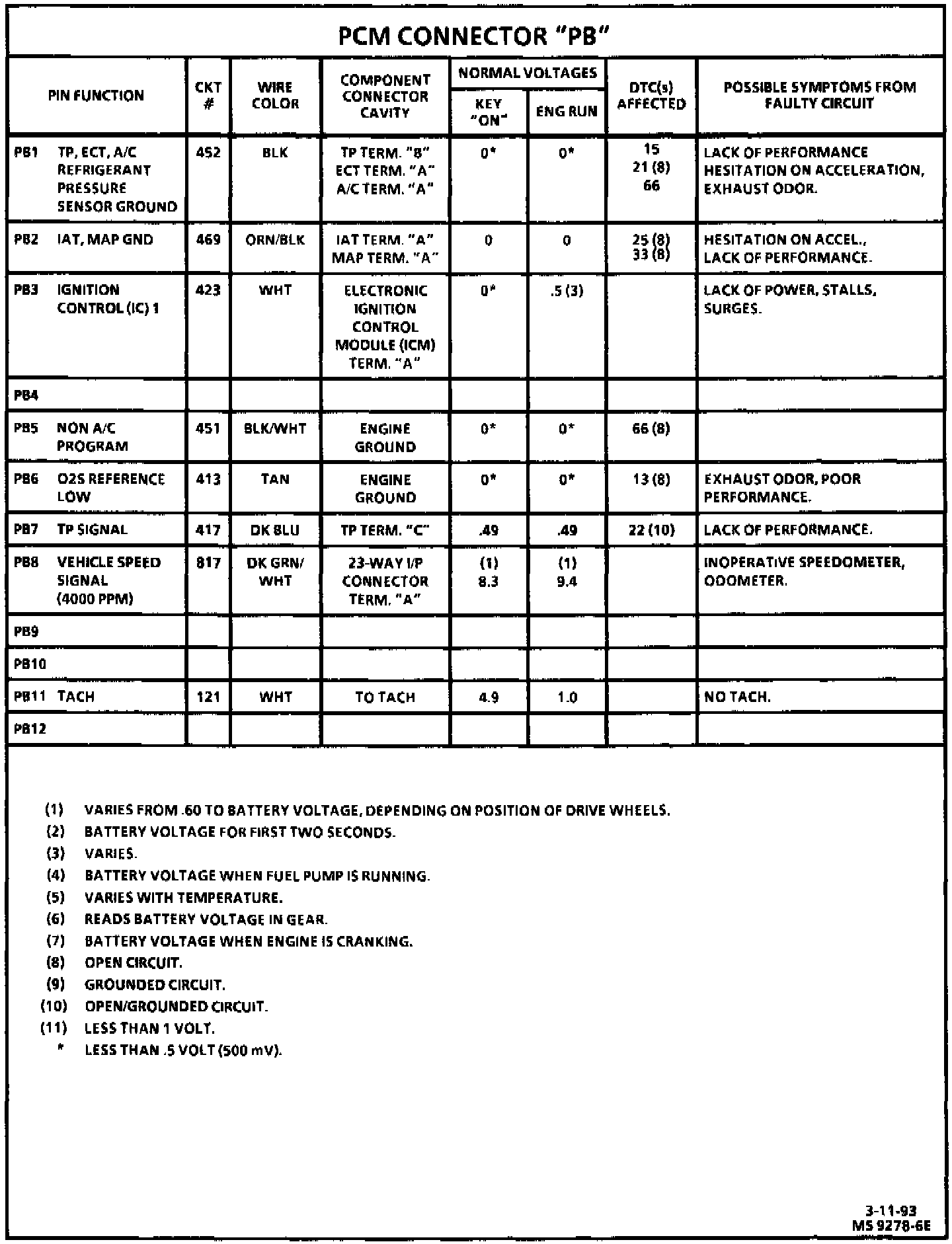

PCM Connector/Symptom Reference Chart (3 Of 6):

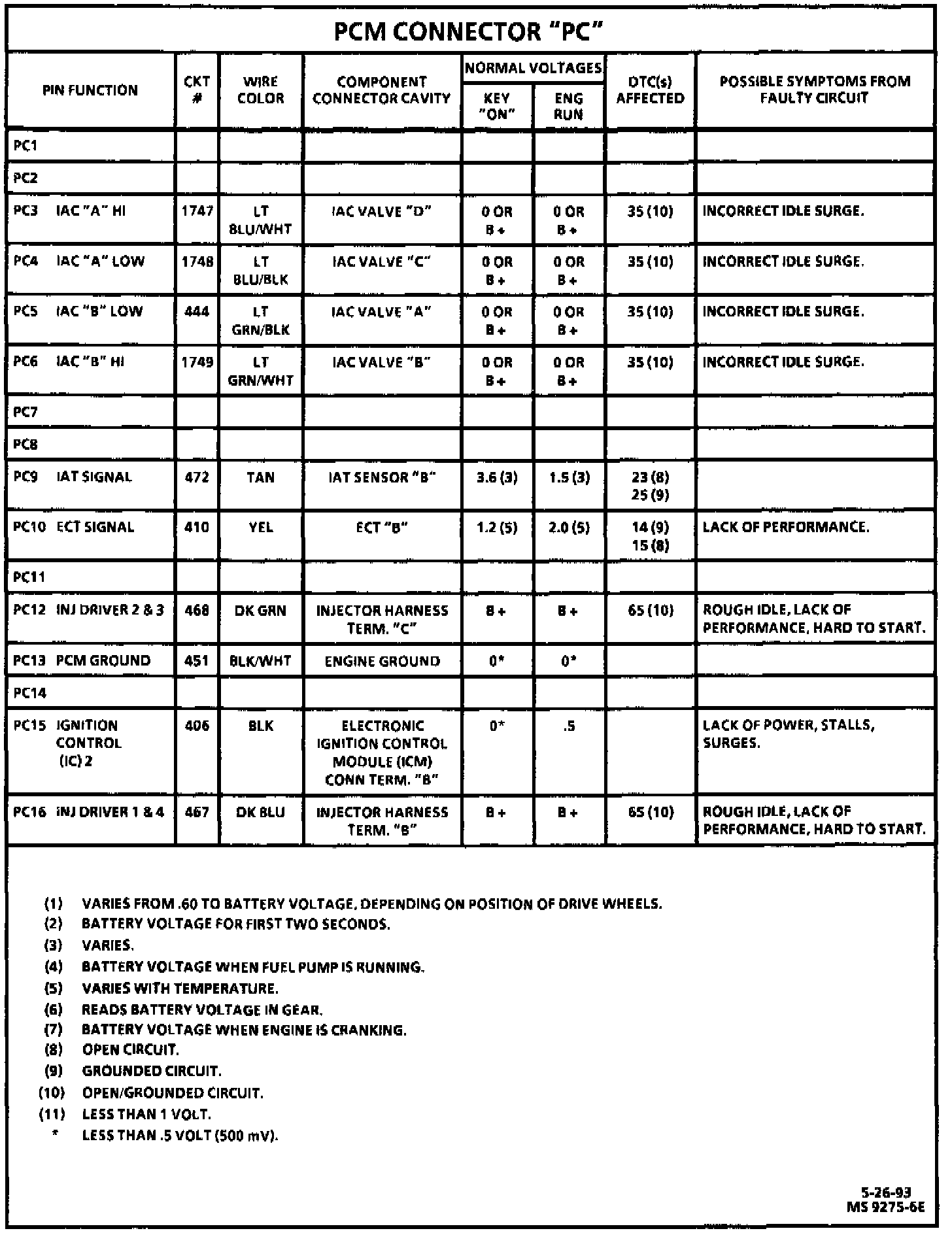

PCM Connector/Symptom Reference Chart (4 Of 6):



PCM Connector/Symptom Reference Chart (5 Of 6):



PCM Connector/Symptom Reference Chart (6 Of 6):
