Quad-Driver Module

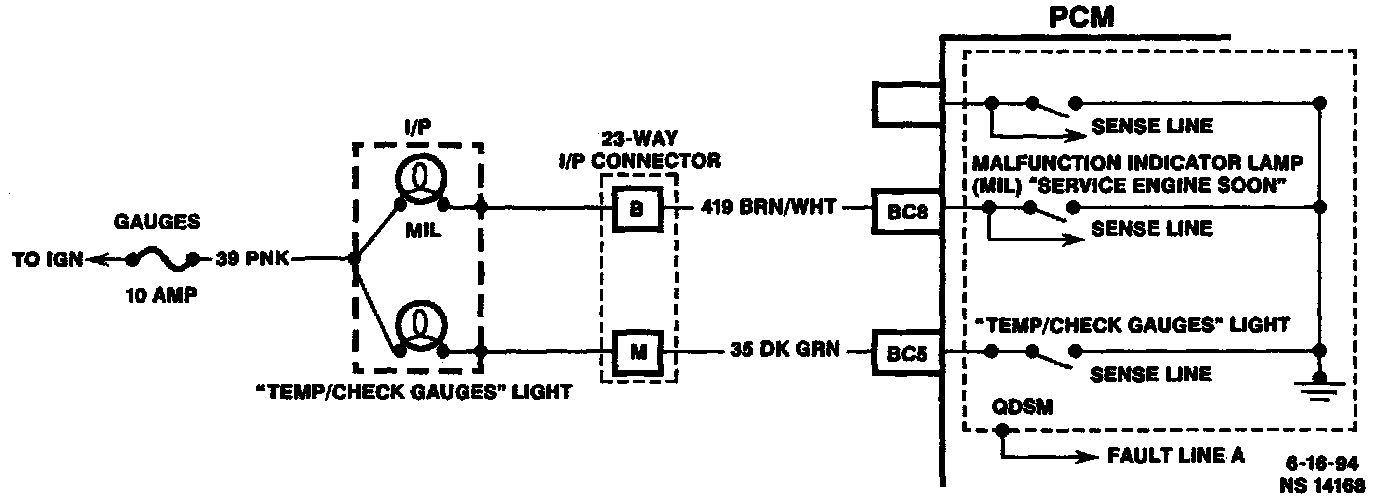

Quad Driver Module Circuit:






QDM

Quad Driver Circuit:

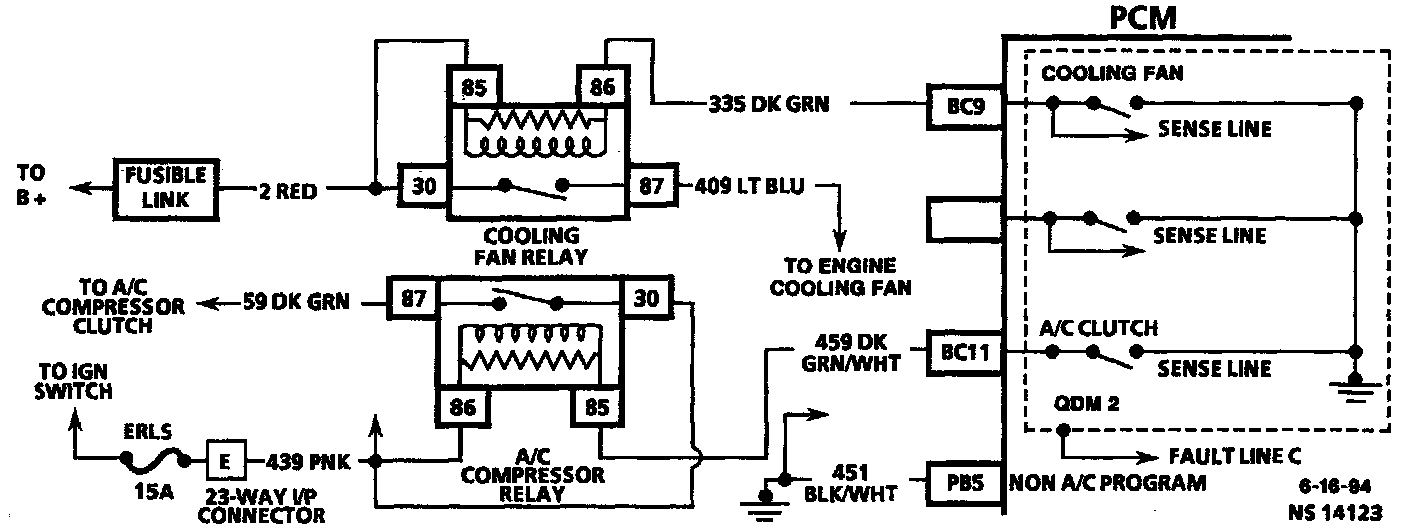

QDM 1

Quad Driver Circuit:

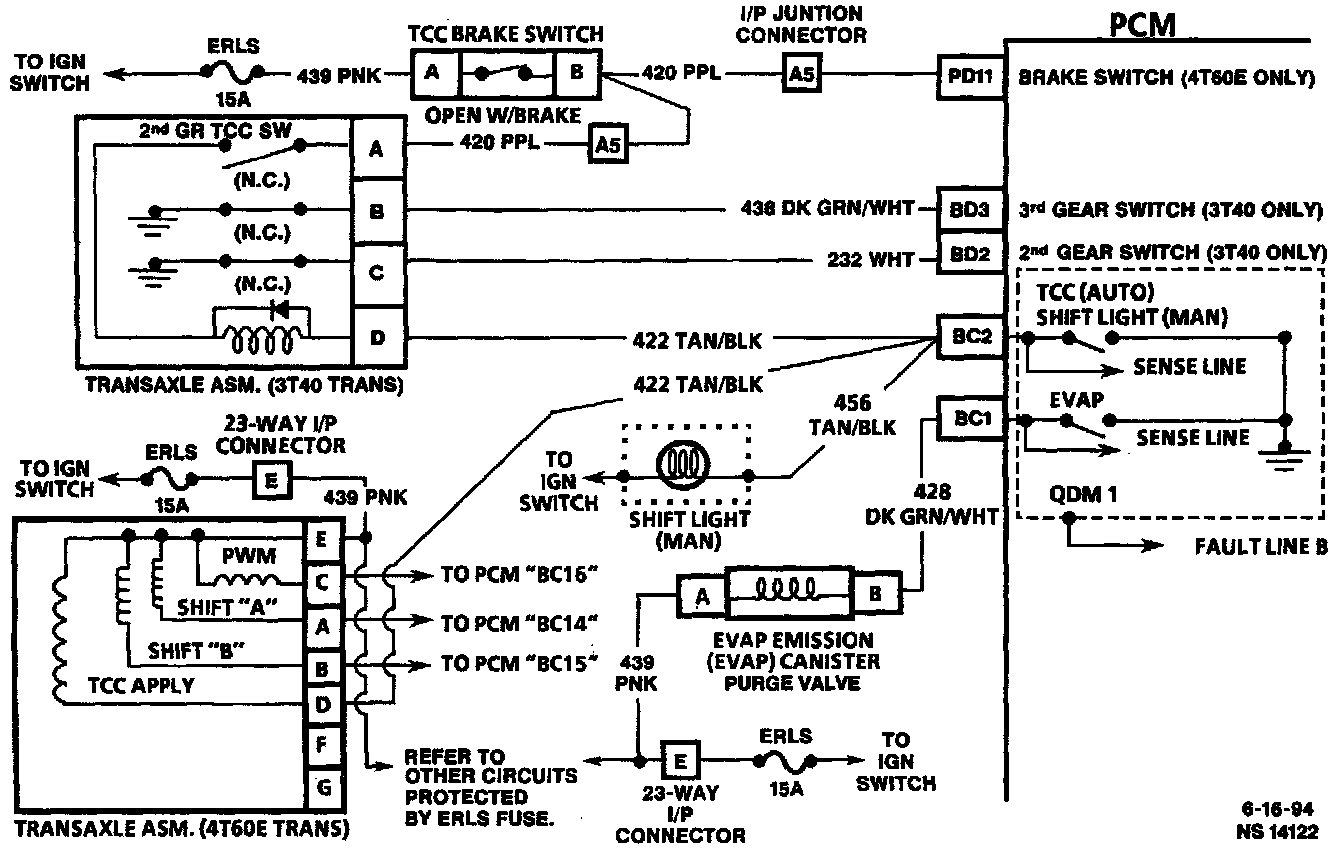

QDM 2

Quad Driver Circuit:






QDM 3
