Torque Converter Clutch & Upshift Indicator
Torque Converter Clutch & Upshift Indicator

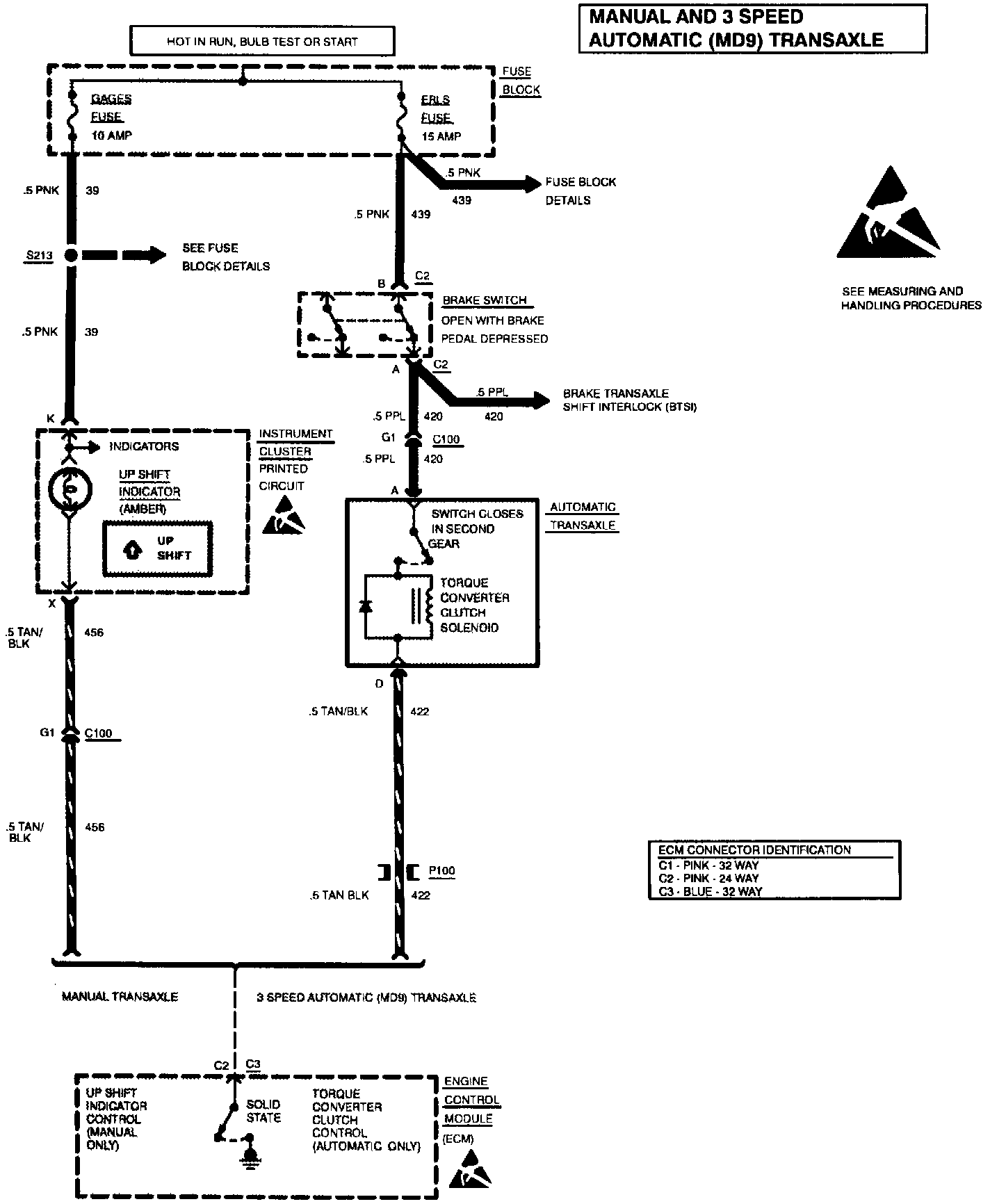

Wiring Diagram: Torque Converter Clutch/Up Shift Indicator:
