Home >> Oldsmobile >> 1994 >> Achieva L4-138 2.3L DOHC VIN D MFI >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Computers and Control Systems >> System Specifications

System Specifications

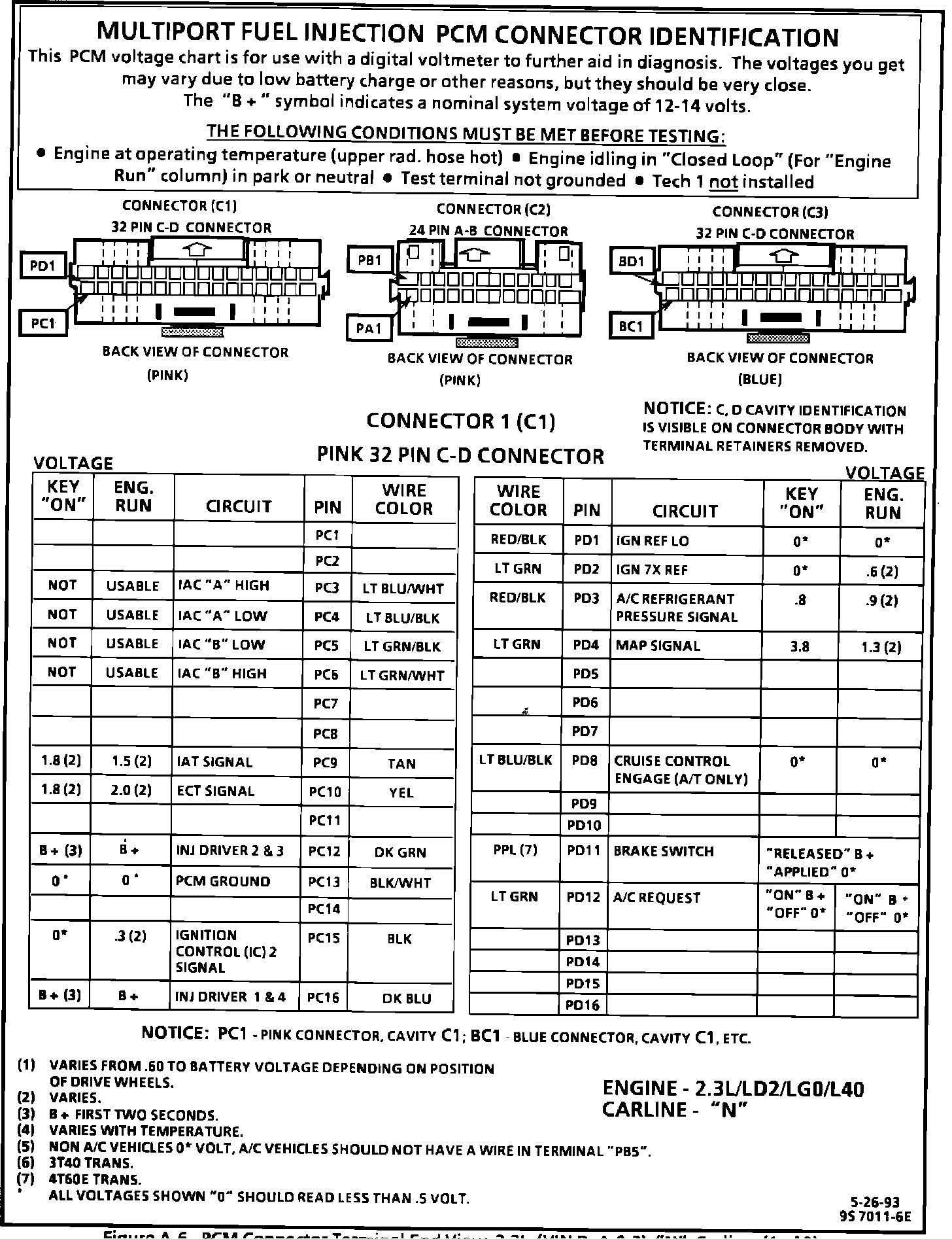

PCM Connector ID (1 Of 2):

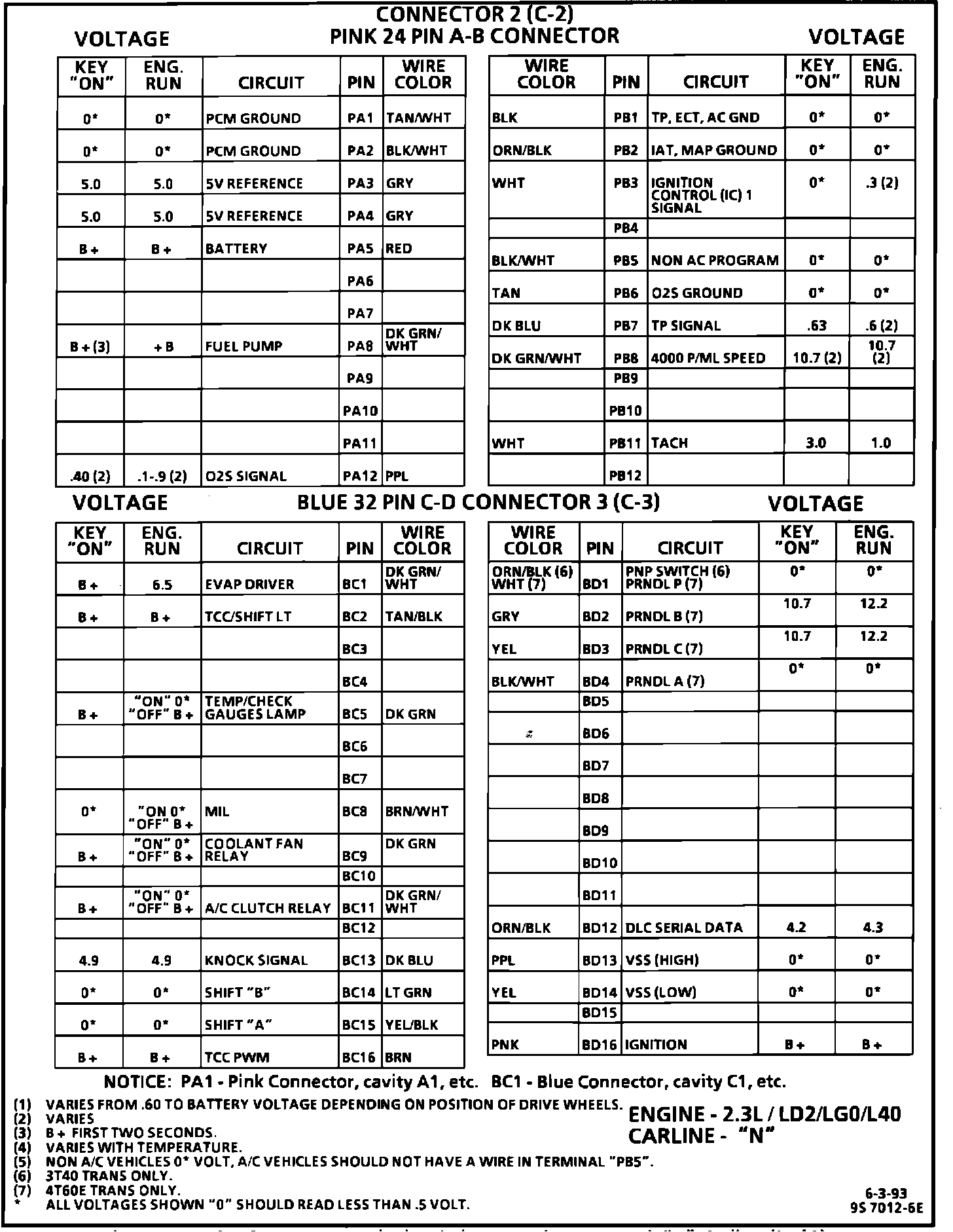

PCM Connector ID (2 Of 2):
