Temperature Gauge: Testing and Inspection

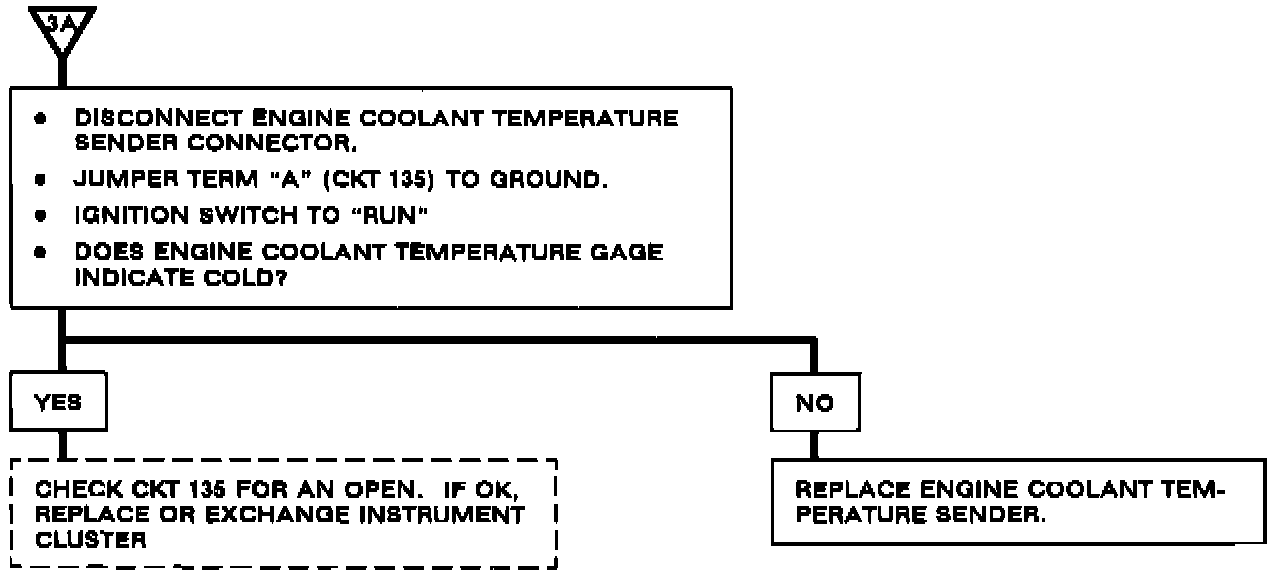

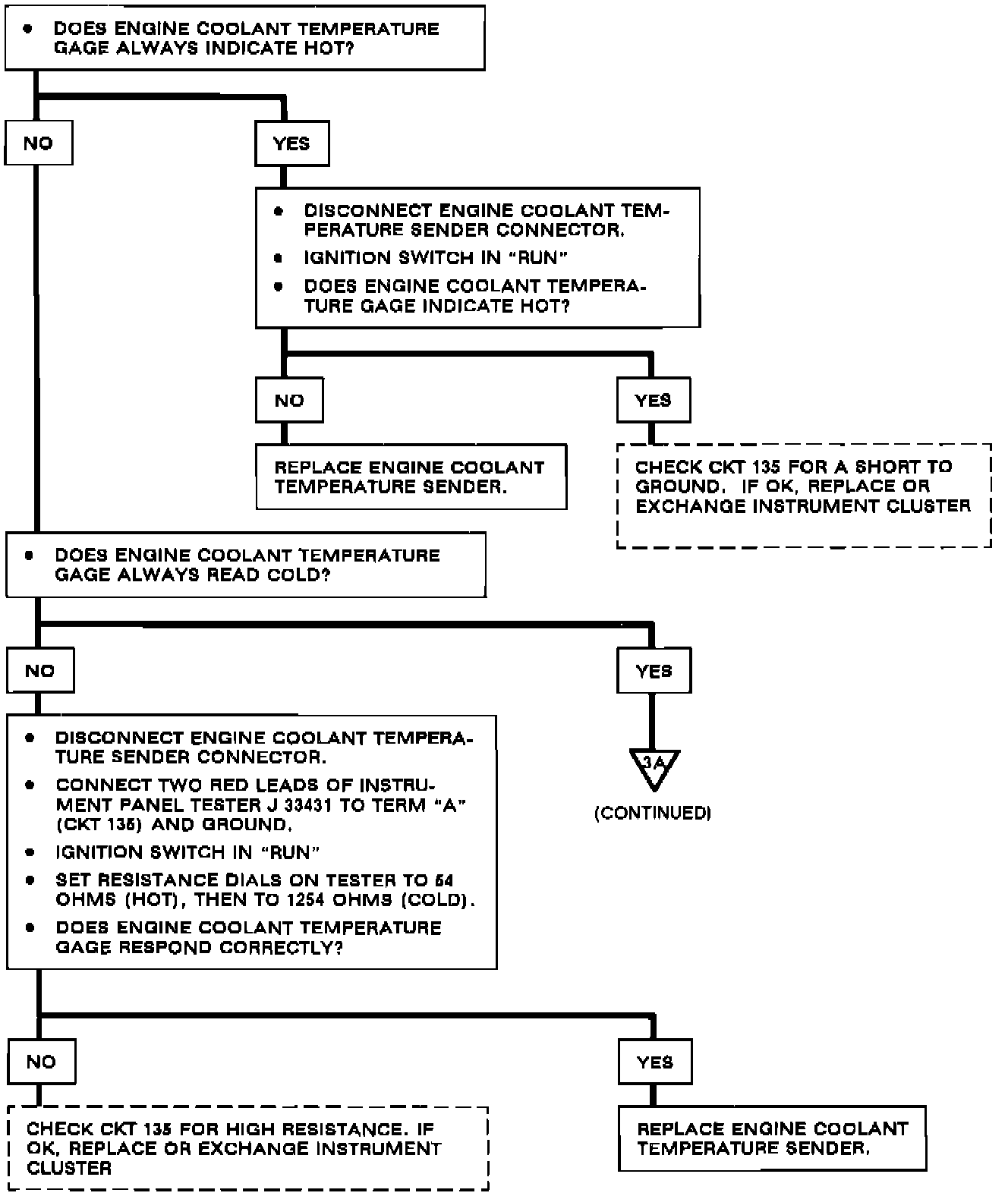

Chart #3 - Engine Coolant Temperature Gage Does Not Operate Properly:
Chart #3 - Engine Coolant Temperature Gage Does Not Operate Properly:
