Ignition System: Locations

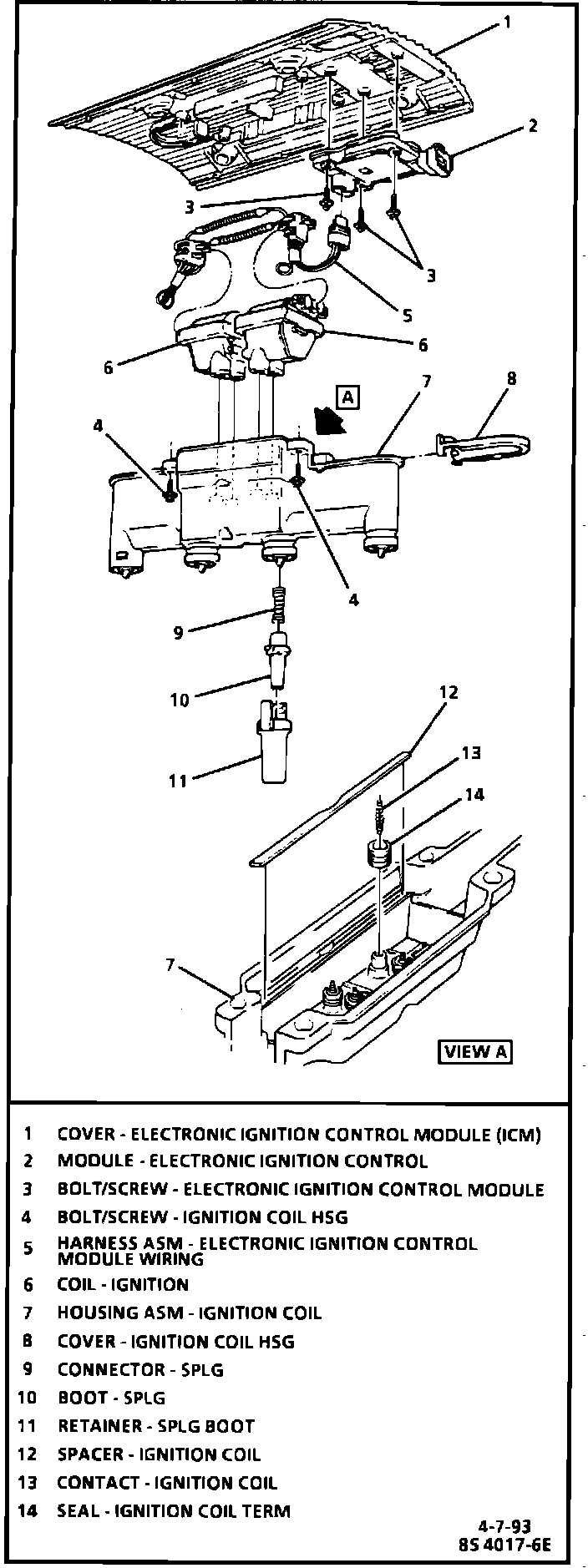

Ignition System Components.:







Top LH rear of engine compartment, under EI cover.
